6 - USE AND OPERATION KID 70
6 - Pag. 6 / 14
6.6 MAGAZINE LOADING
WARNING - CAUTION:
magazine loading must be
carried out using only
personal safety garments
and, if necessary,
appropriate means. The
person who is authorised
to carry out these
operations will have to
prepare all necessary
conditions to safeguard
himself and those who are
directly involved in
them.It is extremely
important to respect the
regulation in force on the
subject of labour safety.

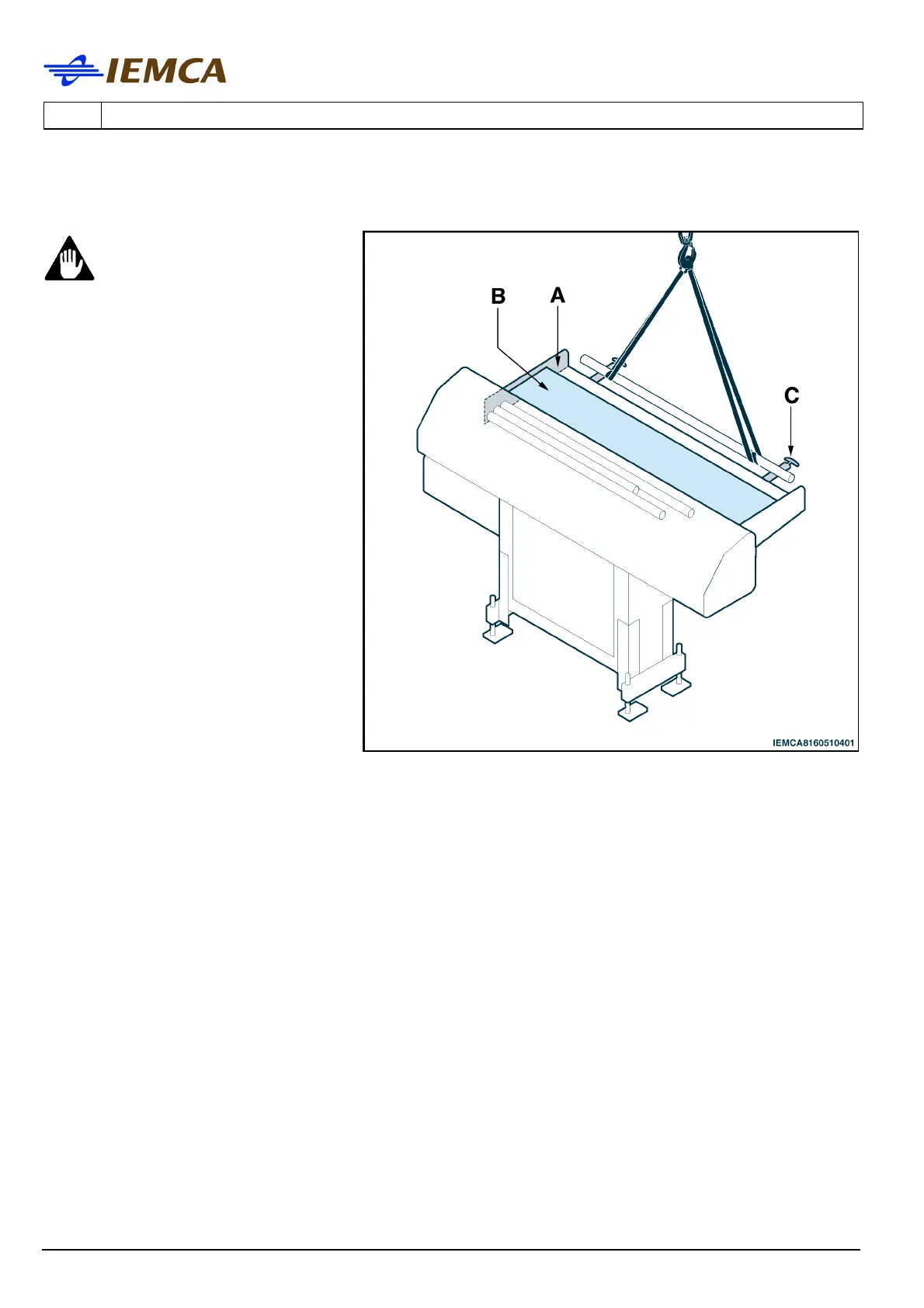

For the loading proceed as follows.
- Load the bars on the magazine
resting them on the bulkhead
(A).
Note: put the bars down so as not to damage the bar feeder parts.
- Adjust the frame (B) (see section 5.2.), for a correct loading. Use, if necessary,
supplementary extractable racks (C).
6.7 BAR FEEDER TOOLING
Before starting machining bars with features different from the previous ones, it proves
necessary to tool the bar feeder proceeding as follows.
-Replace, if necessary, the bar pusher (see bar and bar pusher diameters table section 2.5.
and 6.8.).
-Replace, if necessary, the lathe spindle liners (see section 6.9.).
-Adjust the magazine and the bar pushing frame (see section 5.2.).
-Adjust the loading axis (see section 5.3.).
-Adjust the bar feeder-lathe guide (OPTIONAL see section 5.4.).
-Prepare the bars and load them on the magazine (see section 6.5. e 6.6.).
-Reset, if necessary, the work parameters (see "Keyboard instruction manual").
