6 - USE AND OPERATION KID 70
GB
6 - Pag. 7 / 14

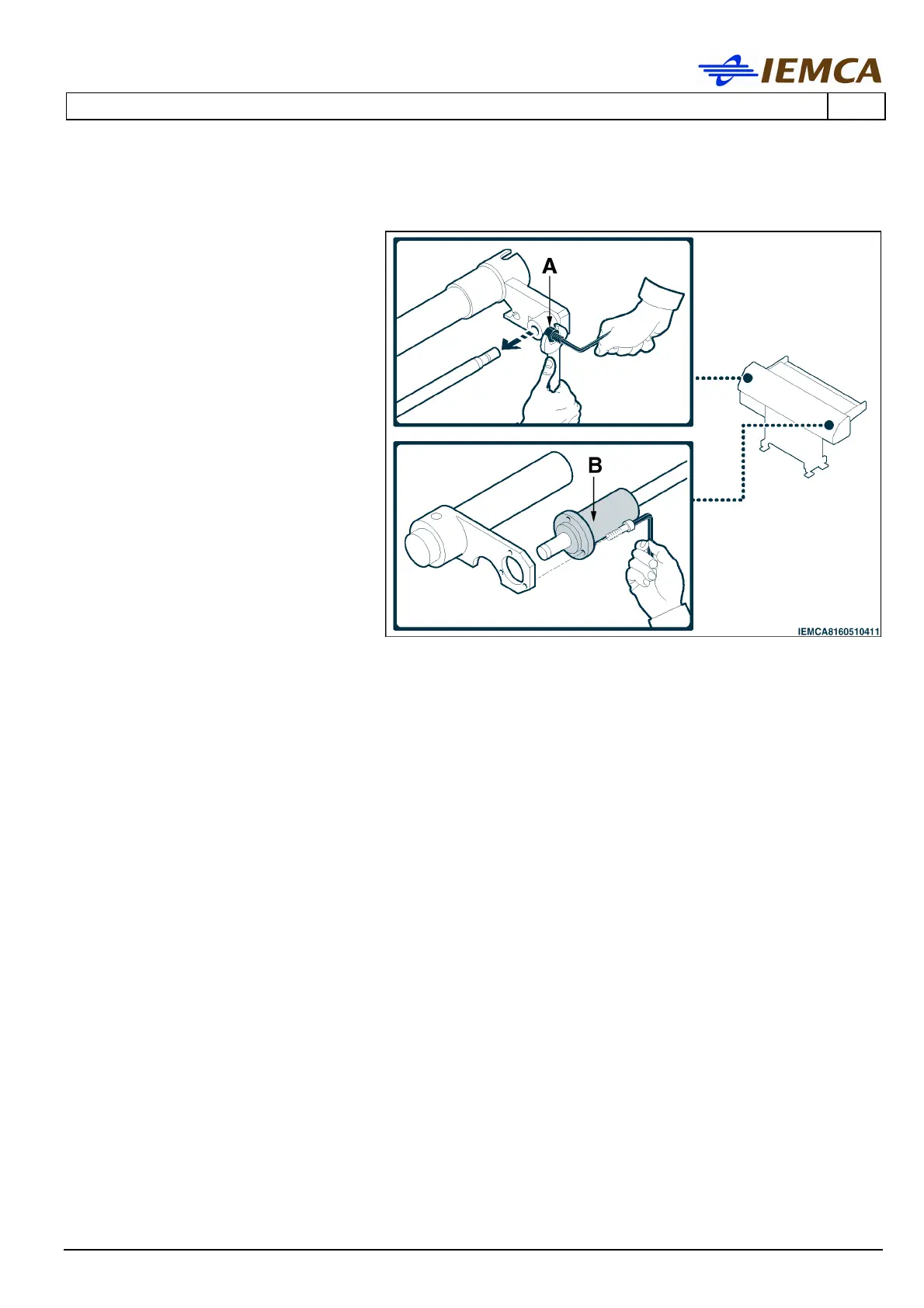

6.8 BAR PUSHER CHANGE
For this operation, proceed as
follows.
- Open the top cover.
- Adjust screw (A) and lock nut in
order to uncouple the bar pusher
rear end.
- Disassemble the bushing (B) in
order to uncouple the bar
pusher fore end.
- Assemble the new bar pusher
with the bushing (B) fitted in its
seat in the rear end.
- Put the bushing (B) in its seat
and fasten it.
- Close the top cover again.
