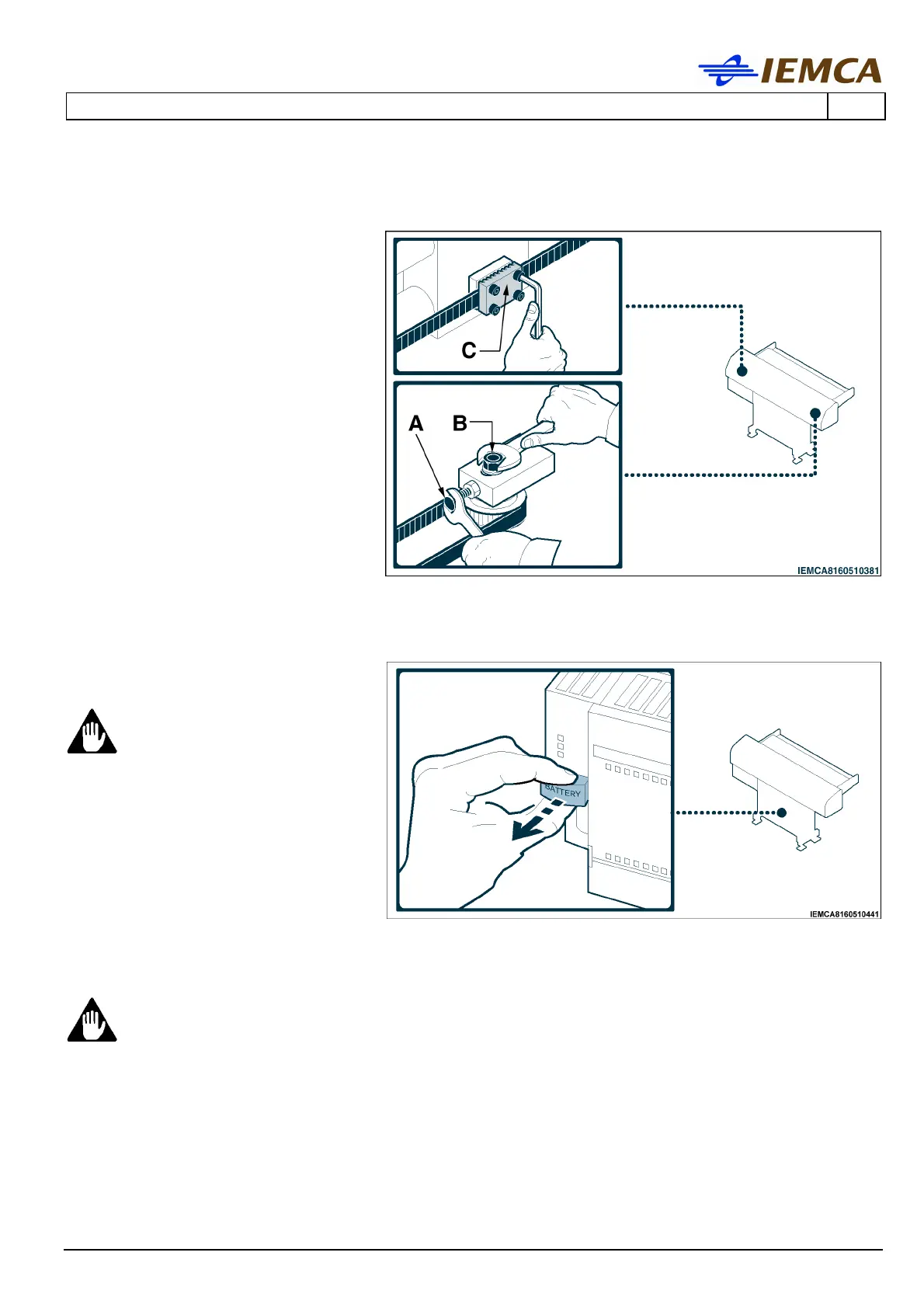

9.3 FEED BELT REPLACEMENT
For this operation proceed as
follows:
- Open the top cover.
- Loosen the nut (B).
- Loosen the belt through screw
(A) and lock nut.
- Disassemble the plate (C) and
replace the belt.
- Assemble the plate again (C).
- Adjust the belt tension (see
section 5.5.).
- Close the top cover again.
9.4 PLC BATTERY REPLACEMENT
Replace the battery once a year.
WARNING:
if this device is not
replaced PLC troubles may
turn up.
- Switch bar feeder power supply
off.
- Open the electric cabinet doors,
take battery off and replace it
with a new one (SIEMENS type
BC293-88A20-0XA0).
WARNING:
replace battery quickly to avoid a too long power supply interruption.
- Close the electric cabinet doors and turn power supply on.
