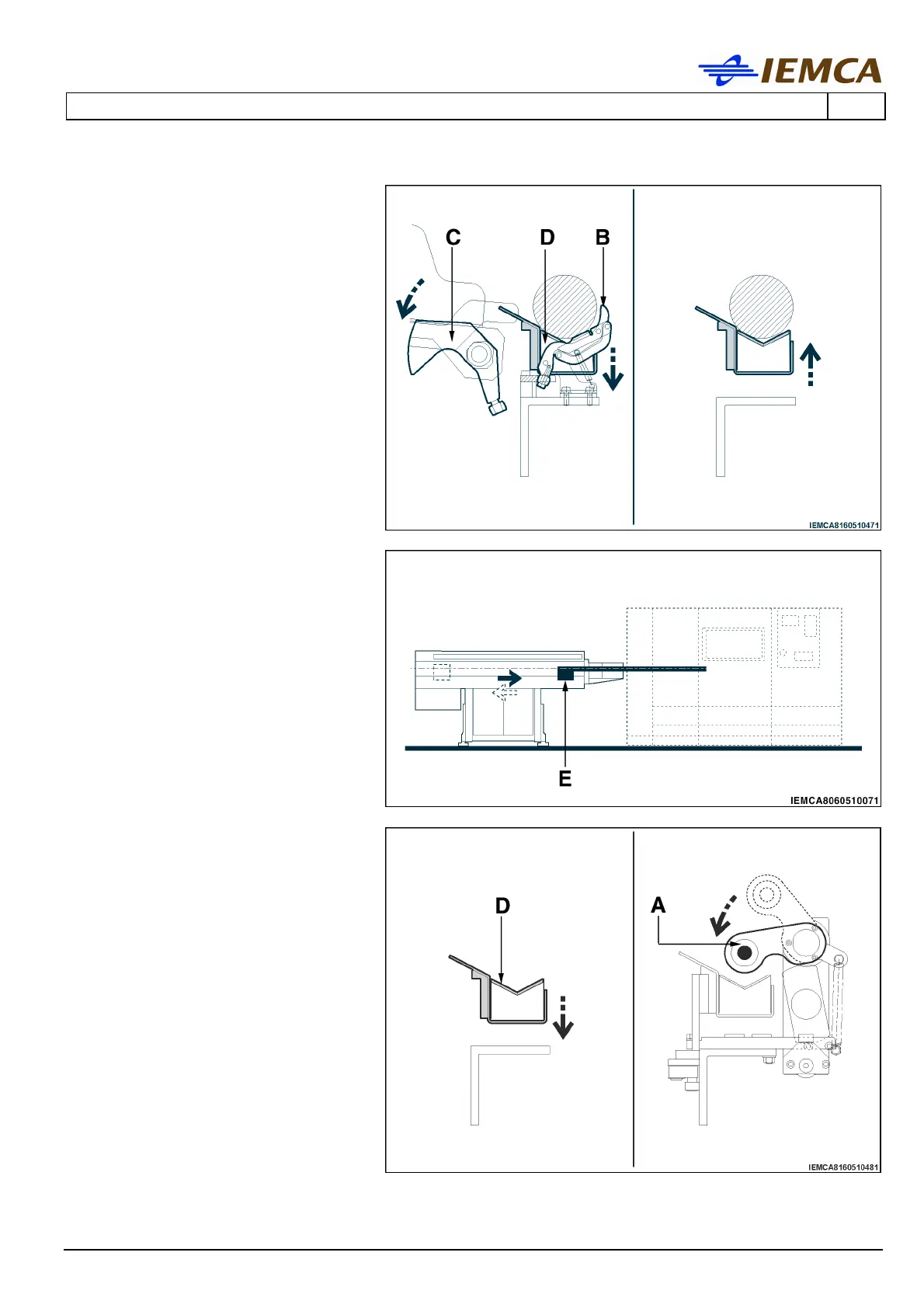

- The "bar drop control" unit (B)
returns to its initial position
enabling bar insertion into the
guide (D). At the same time, the
bar selector unit (C) returns to
its initial position. Subsequently,
the guide lifts and sets the bar
in line with the loading axis.
- The bar is inserted into the
carriage lathe (E) that then goes
back to its initial position.
- The guide (D) returns to its low
position. The bar pusher (A)
lines up with the loading axis of
the lathe spindle.
