2 - TECHNICAL INFORMATION KID 70
GB
2 - Pag. 7 / 16

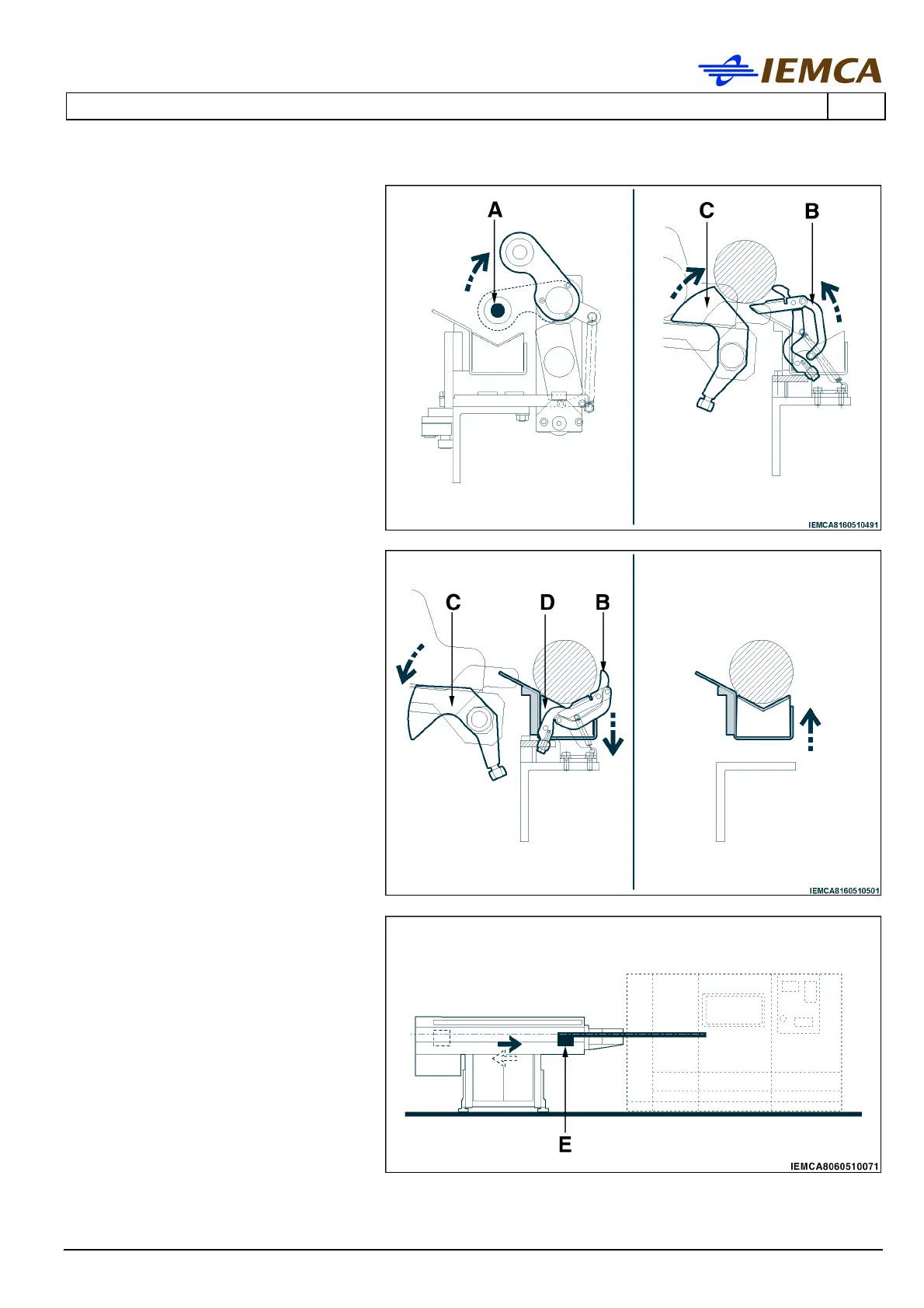

- The bar pusher (A) and the "bar
drop control" unit (B) are lifted.
At the same time, also the bar
selecting unit (C) that loads the
first bar on the "bar drop
control" unit is lifted.
- The "bar drop control" unit (B)
returns to its initial position
enabling bar insertion into the
guide (D). At the same time, the
bar selector unit (C) returns to
its initial position. Subsequently,
the guide lifts and sets the bar
in line with the loading axis.
- The bar is inserted into the
carriage lathe (E) that then goes
back to its initial position.
