4.6.4 Alignment and levelling
INFORMATION:
not only alignment and
levelling are fundamental
for the correct running of
the bar feeder and for the
WARRANTY VALIDITY, but
also they must be carried
out only by a SKILLED
STAFF WITH PRECISE
TECHNICAL COMPETENCE.
For these operations proceed as
follows.

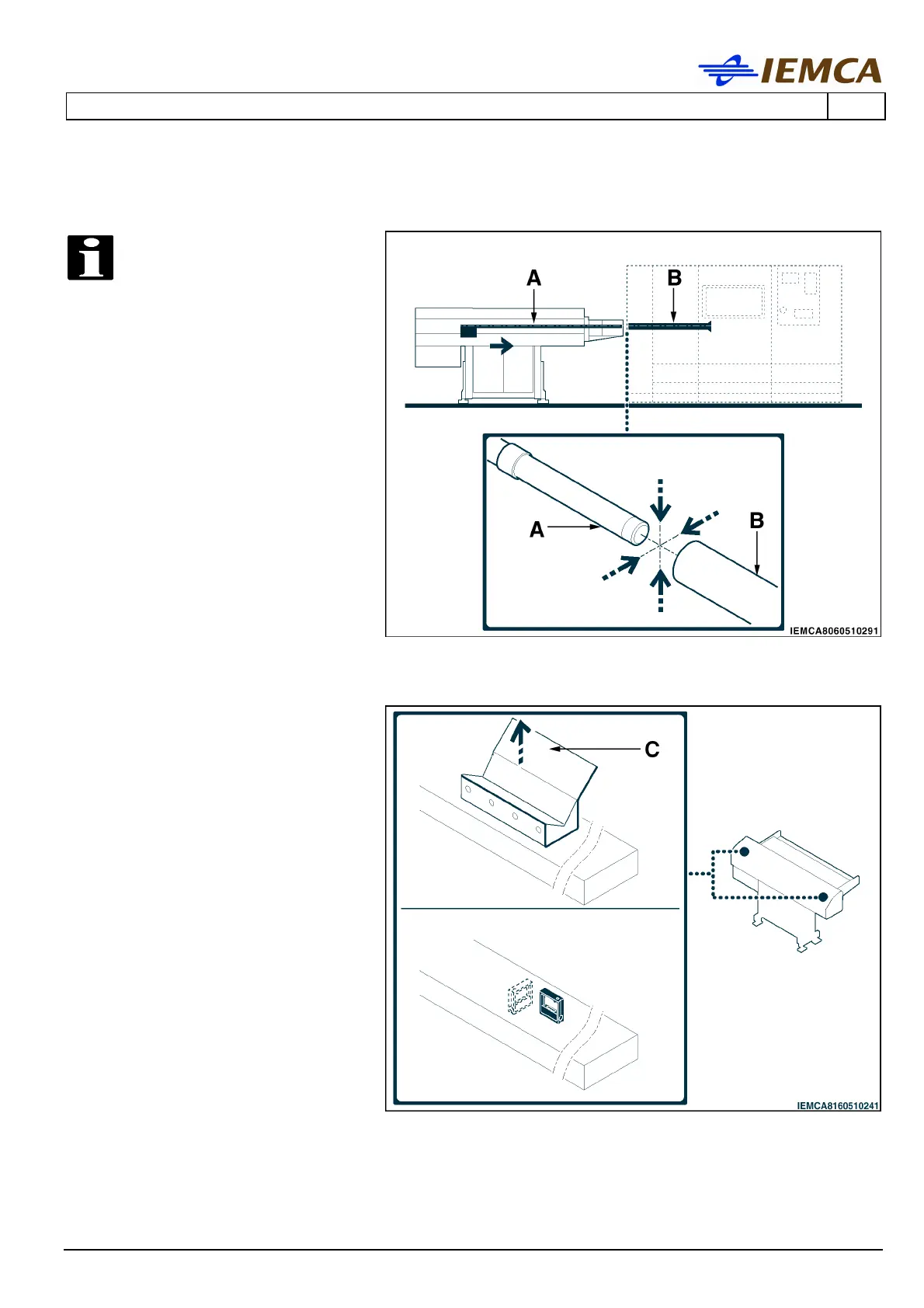

• Position the bar feeder near the
lathe (see figure).
• Open the upper guard and
manually transfer the bar pusher
(A) until you bring the ends
close to the spindle head (B).
• Remove two sections (C) from
the guide channel in order to use
the beam plane to check the
levelling.
• Verify the alignment of both bar
feeder axes and levelling.
