7.4 DISPLACEMENT DEVICE USE
WARNING - CAUTION:
before carrying out this intervention, disconnect the bar feeder power supply.
During the intervention take extreme care so as not to damage the connection
cables.
For this operation proceed as
follows.
- Disconnect the bar feeder-lathe
fastening unit (if installed).

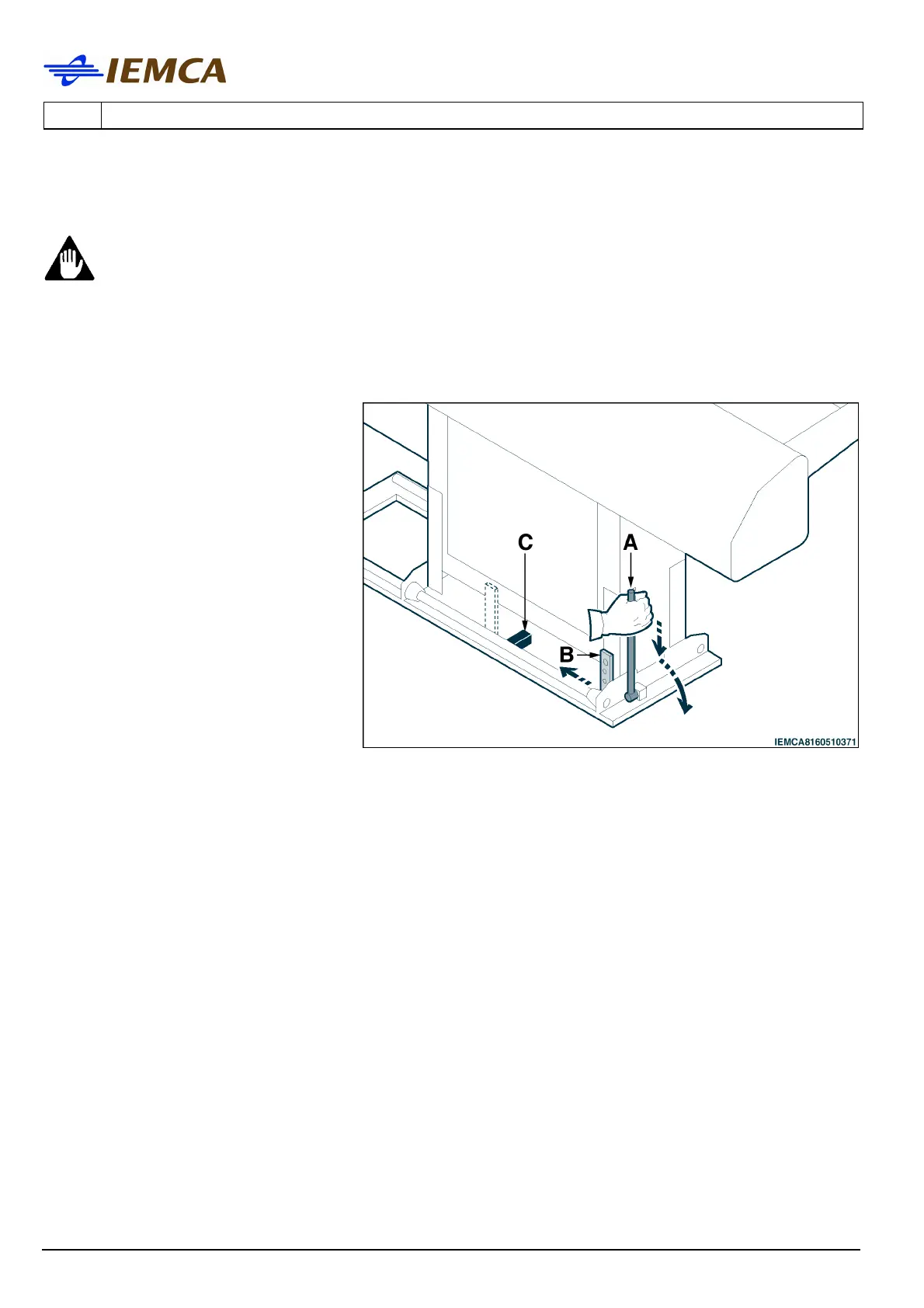

- Lower the lever (A) until it
releases, then rotate it forward.
- Move the bar feeder until the bar
stop (B) exceeds the stop (C).
- Carry out all lathe tooling and/or
maintenance operations
required.
- Lift the bar stop (B) and put the
bar feeder again in its initial
position.
- Put the lever (A) in position.
