IFM Electronic O1D102 - Window Function Operation; Setting Hysteresis Switch Point OUT1

18

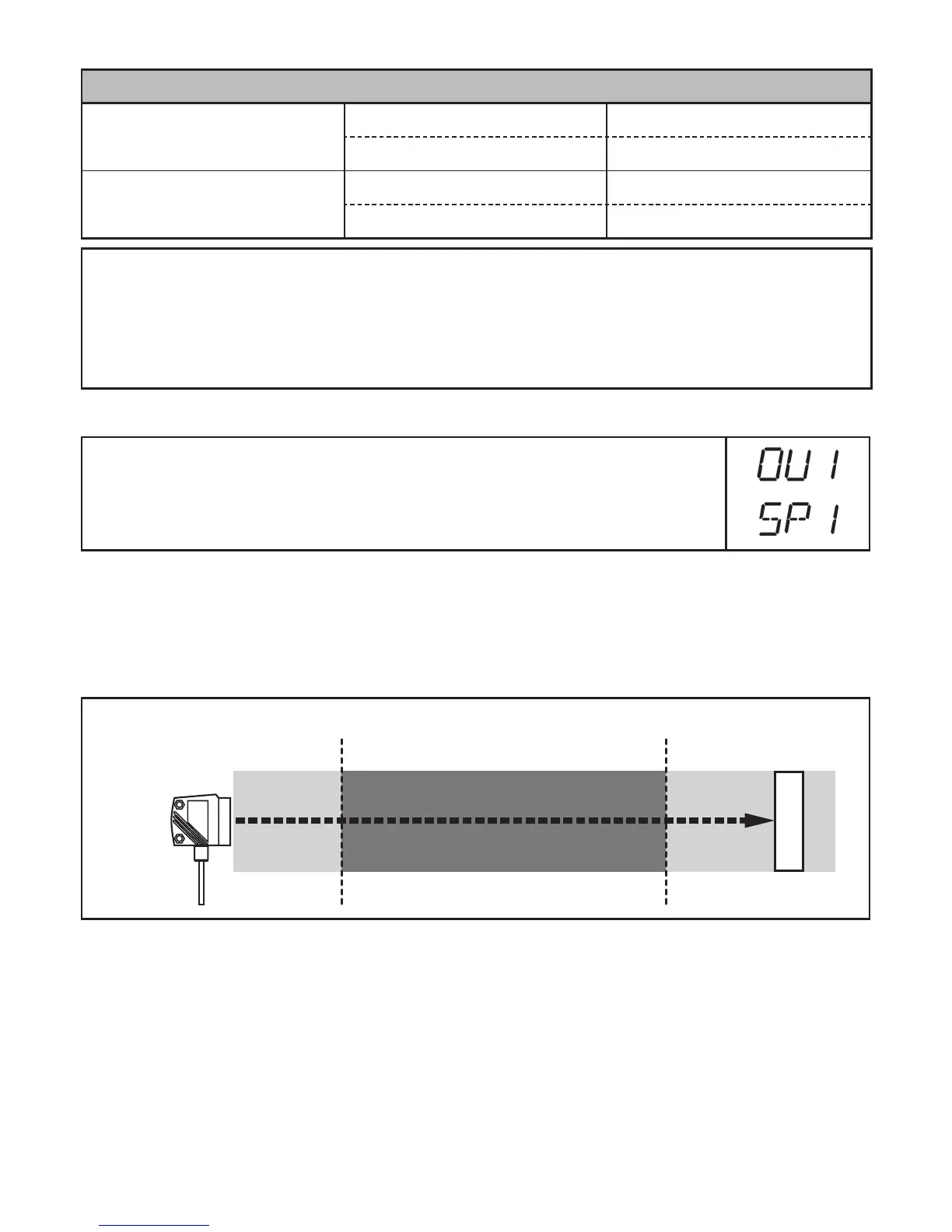

Switching status of the outputs
Output function Object distance (D) Output status
[Hno] D < [SPx] Closed
D > [SPx] Open
[Hnc] D < [SPx] Open
D > [SPx] Closed
Example of output function [Hno]
Sampling rate 5 Hz, distance to the object 1200 mm, grey value (18 % remission):
Hysteresis = ± 9,5 mm (repeatability → 10.3.3 table) x factor 1.5 = 14 mm
- Reset point 1200 mm + (14 mm) = 1214 mm
- Set point 1200 mm - (14 mm) = 1186 mm
10.2.5 Setting of the switch point for hysteresis function OUT1
► Select the output function [Hno] or [Hnc] at [OU1]�
► Confirm with [MODE/ENTER]�
► Select [SP1] and set the switch point�
► Confirm with [MODE/ENTER]�
10.2.6 Window function
It is possible to define a window for the object recognition for each of the two
outputs (OUT1 / OUT2)�
Switches off when the object is detected

 

[nSPx] = switch point " near "; [FSPx] = switch point " far "; FE = window
If the measured value is between the switch point "near" [nSPx] and the switch
point "far" [FSPx], the output is open (when [OUx] = [Fnc])�
