CabinetModule CR2012
18
8.4 Wiring
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen
25.04.2013We reserve the right to make technical alterations without prior notice! CR2012 / page 4
CR2012 Wiring

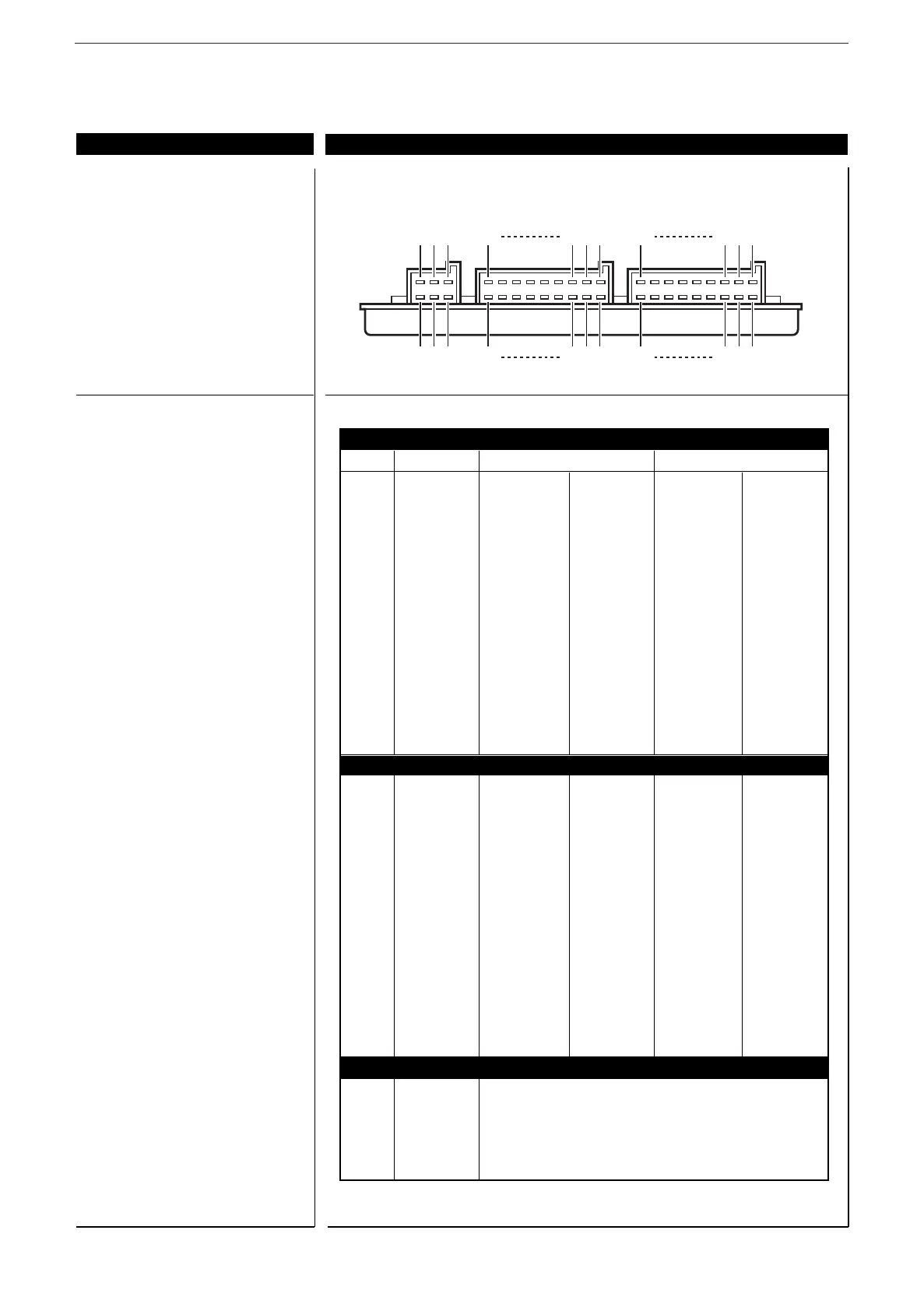

View of the unit
Wiring
\DATEN\100\DB-FORM—PZD/03/12/96
Plug X1
Pin Potential Inputs Outputs
1 channel 1 Bin IN 1 – – –
2 +U
B
3 channel 2 Bin IN 2 – – –
4 +U
B
5 channel 3 Bin IN 3 – – –
6 +U
B
7 channel 4 Bin IN 4 – – –
8 +U
B
9 +U
B
10 +U
B
11 channel 5 Bin IN 5 Ana IN 5 – –
12 channel 6 Bin IN 6 Ana IN 6 – –
13 GND
14 GND
15 channel 7 Bin IN 7 – Bin OUT 7
16 GND
17 channel 8 Bin IN 8 – Bin OUT 8 PWM 8
18 GND
Plug X2
1 channel 9 Bin IN 9 – – –
2 +U
B
3 channel 10 Bin IN 10 – – –
4 +U
B
5 channel 11 Bin IN 11 – – –
6 +U
B
7 channel 12 Bin IN 12 – – –
8 +U
B
9 +U
B
10 +U
B
11 channel 13 Bin IN 13 Ana IN 13 – –
12 channel 14 Bin IN 14 Ana IN 14 – –
13 GND
14 GND
15 channel 15 Bin IN 15 – Bin OUT 15
16 GND
17 channel 16 Bin IN 16 – Bin OUT 16 PWM 16
18 GND
Plug X3
1 +U
B
2 GND
3 +U
B
4 GND
5 CAN_L
6 CAN_H
