CabinetModule CR2012
6
4.2 Fixing
► Fix the device using 2 M4 x L screws via transversely arranged bore holes�
Tighten the screws alternately crosswise�
– Tightening torque: 1�5 Nm
– Mounting position: as required
– Hole dimensions: (→ 8.1 Dimensions, mechanics, electronics)

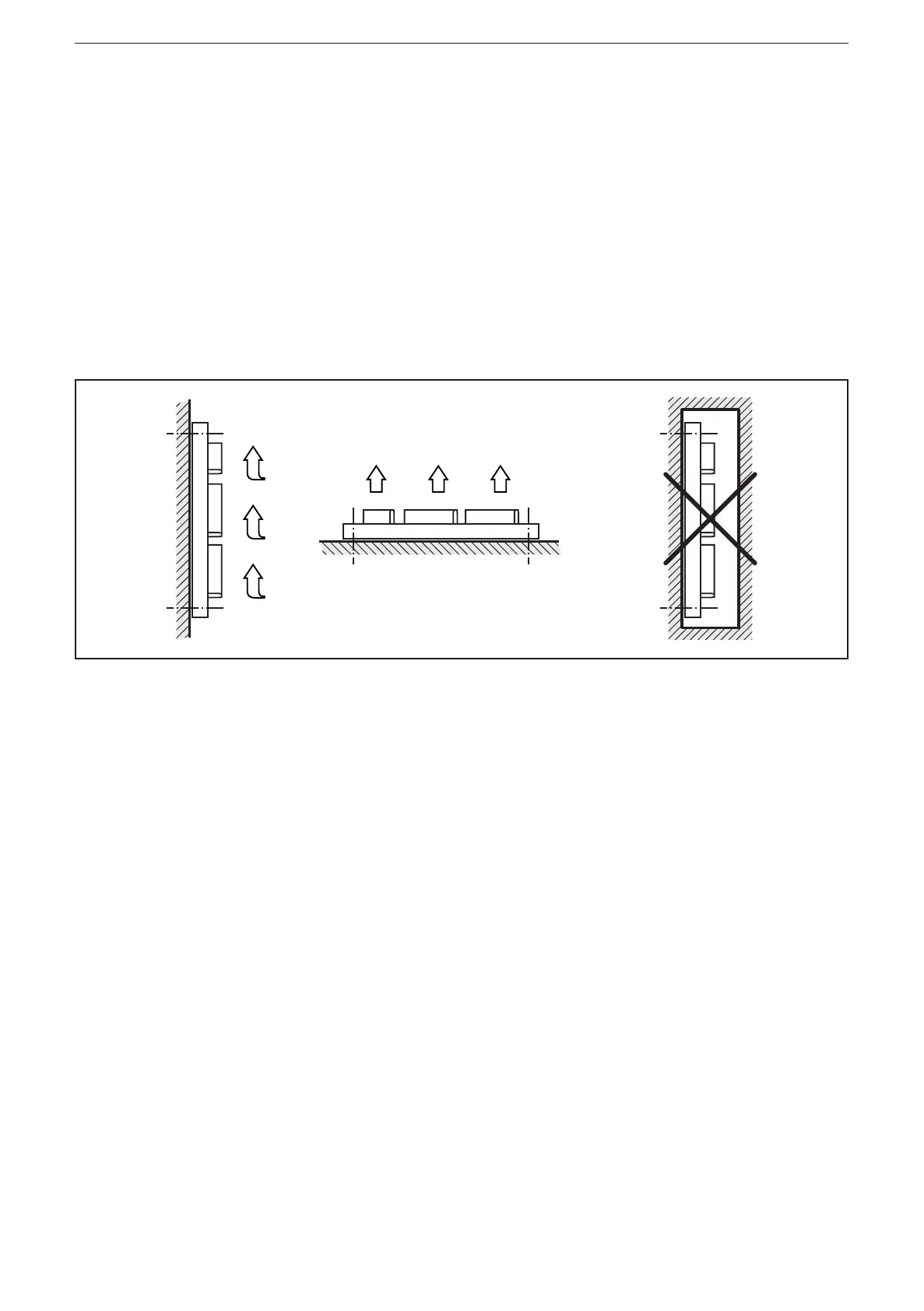

4.3 Cooling
► As the internal heating of the electronics is conducted away via the housing,
ensure sufficient heat dissipation�
