3 Functions and features
With this unit angular movements and positions of the valve between 0°...179.9°
and -180°...0° can be determined. The unit generates output signals according to
the operating mode and the parameter setting.
4 Installation
► Disconnect power before installation.
► Ensure that the machine stands still.
► Do not start the drive during installation.
► Keep potential interfering sources (magnets, heat sources) at a distance.
This product complies with the standard EN 61000-6-4. The unit may cause radio
interference in domestic areas. The user must take appropriate measures to avoid
this interference, if necessary.
1
2
3

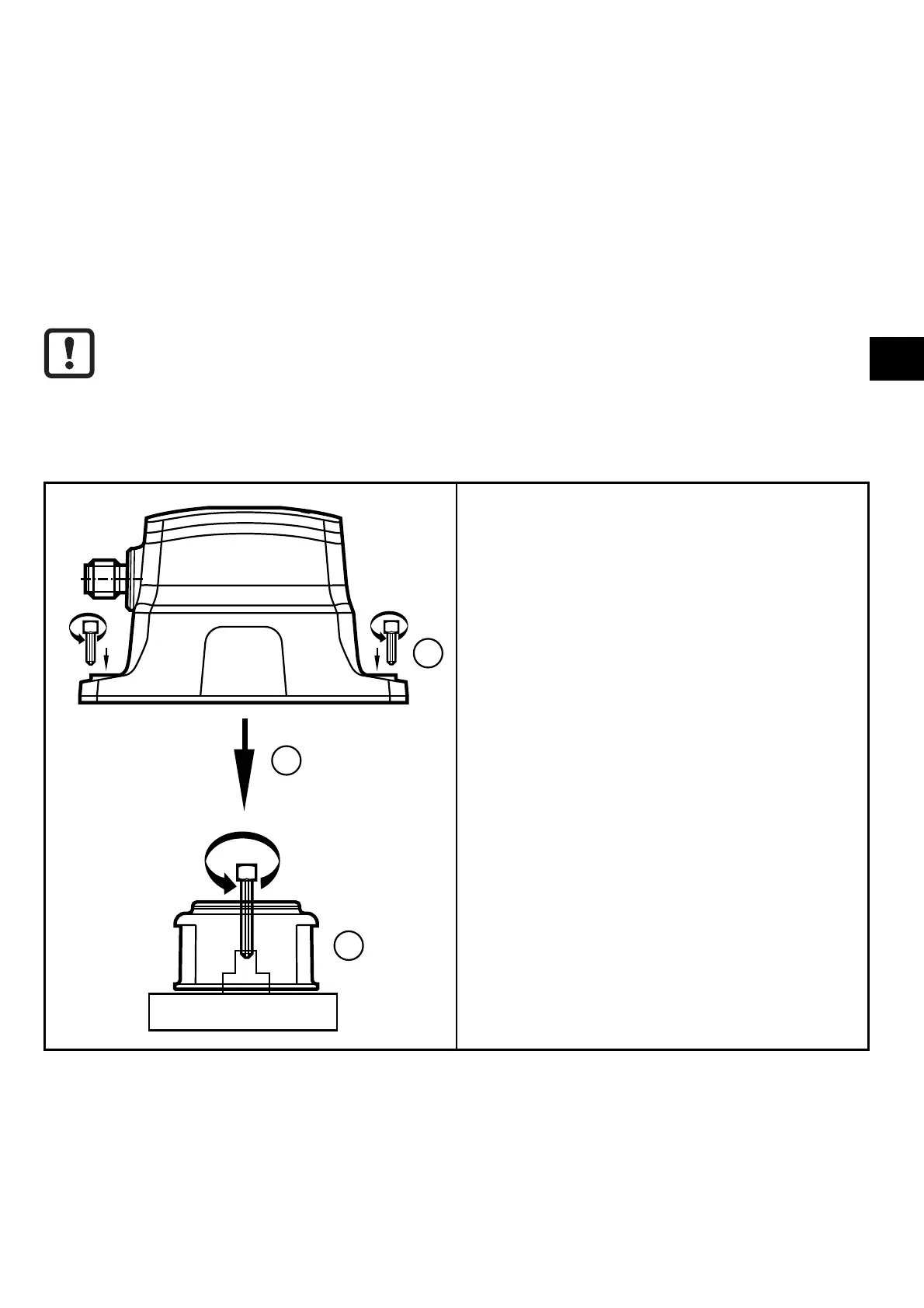

1: Use the two notches at the bottom of
the target puck as a mounting aid for a
precise positioning on the shaft. Align
target puck. The yellow indicator can
be rotated to show the desired open
position.
Fix the target puck to the valve head
using the supplied screw, tightening
torque 1.2 Nm.
2: Put the unit over the target puck.
3: Fix the unit to the actuator housing
using the supplied screws, tightening
torque 1.5 Nm. Use an optional
mounting plate, depending on the
mechanical interface.
