Lock unit
► Activate teach button (approx. 20 s) until the LED ring briefly flashes once.
> Unit is locked, no parameter setting possible.
Unlock unit
► Activate teach button (approx. 20 s) until the LED ring briefly flashes once.
10 Settings
2
2
1

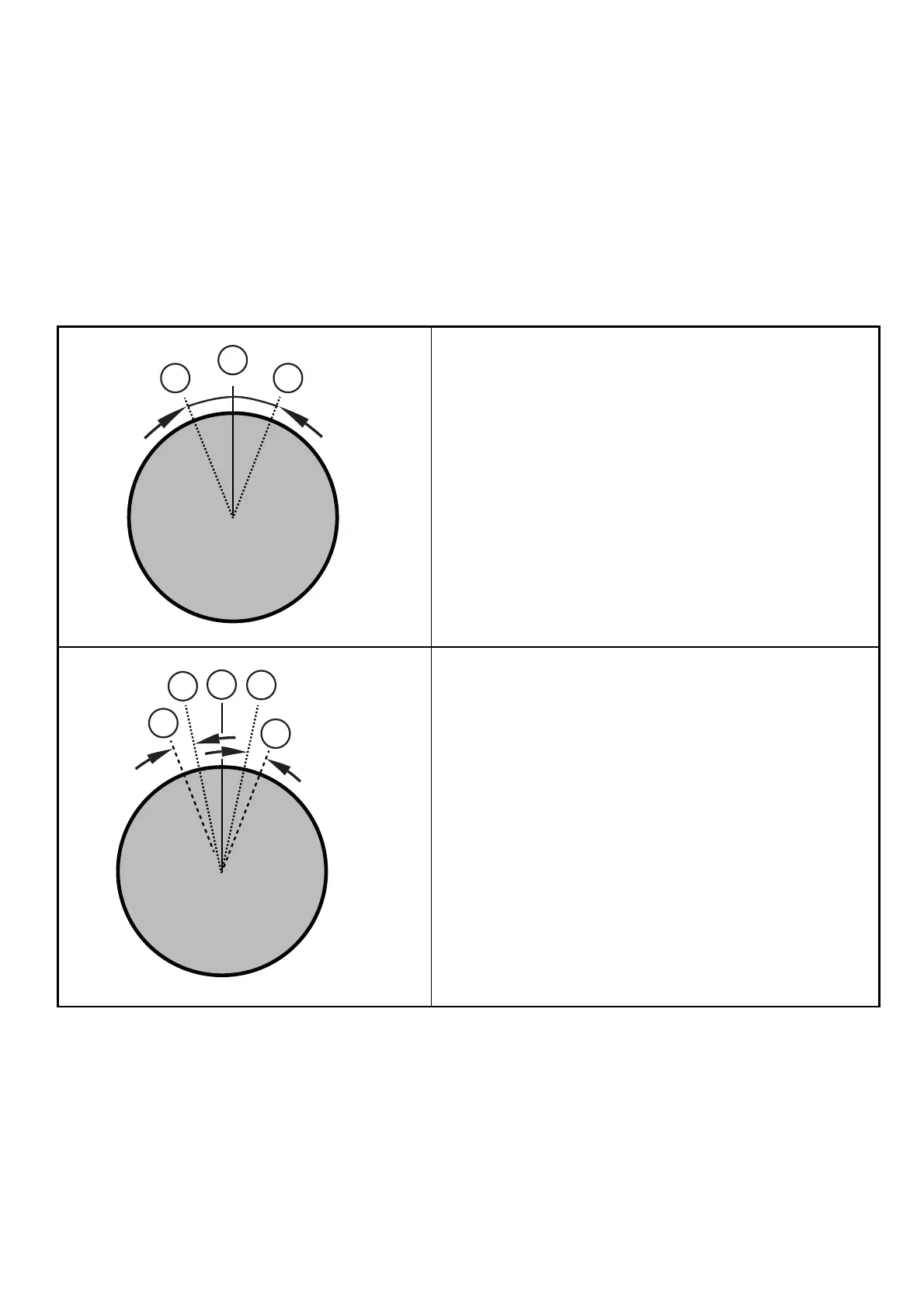

Settings tolerance
Set a tolerance range between 0.1° and 15°
around the taught/set switch point.
1: Teach point
2: Tolerance width
3
3
2
2
1
Setting hysteresis
The hysteresis is around the tolerance range,
can be set between 0.1° and 5°.
1: Teach point
2: Tolerance width
3: Hysteresis
