IFM OGH - Set range by means of background and object

7
UK
6.2.1 Set range by means of background and object
► Start the LR DEVICE software�
► Align the diffuse reflection sensor to the object (fig. 1).
► Select [Teach SP1 TP1] in the LR DEVICE software�
► Align the diffuse reflection sensor to the background (fig. 2).
► Select [Teach SP1 TP2] in the LR DEVICE software�
> The switch point SP1 is between object and background (fig. 3).

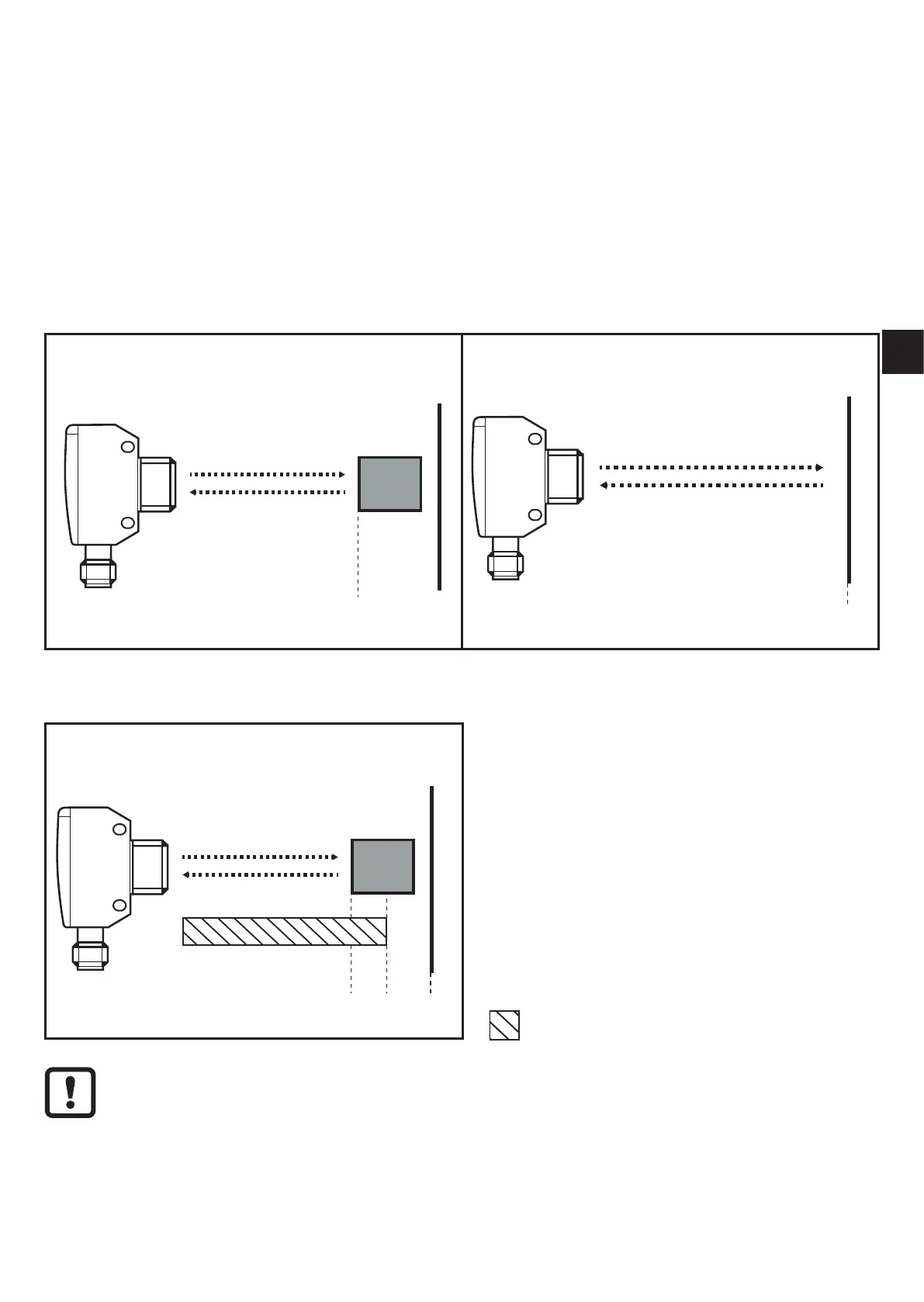

Fig� 1: Fig� 2:
TP1
TP2
TP1: teach point 1 TP2: teach point 2
Fig� 3
TP2TP1 SP1
Zone "object recognised"
Either the object can be set first and then the background, or the other
way around�
