8
Operating mode 3
Description High IO-Link process value and parameter resolution
(device-specific: see IODD suitable for the operating mode)�
The menu items [ou1] and [ou2] are extended by the setting
option [OFF] (→ 9.4.1)�
IO-Link standard command "Flash on" is available (→ 4.4.2)�
The following IO-Link markings are available: Application Specific
Tag, Function Tag and Location Tag (→ 4.4.2)�

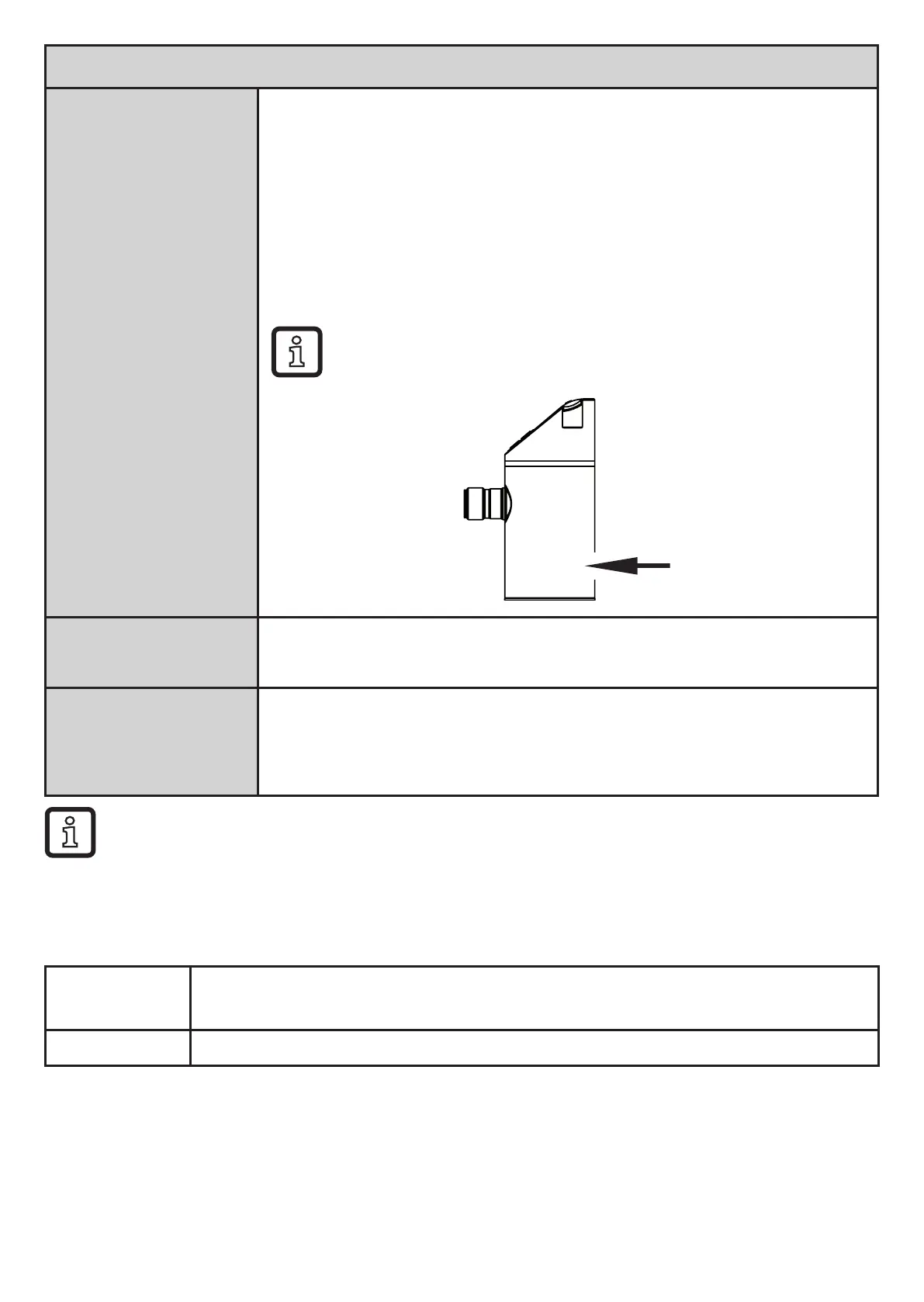

This operating mode is available as of device status
BA�For the device status see the labelling on the device�
BA xxxx
PNxxxx
Application Improved controllability via IO-Link�
Highly granular setting of switch-on and switch-off points�
IODD designation E�g� PN7094 Status_B High Resolution / (CMPT = 3):
At www�ifm�com in the download area of the corresponding
article�
Manual selection of the operating mode see (→ 9.2), selection of the
operating mode via IO-Link interface see → additional document on the
selection of the operating mode at www�ifm�com
4.2 Communication, parameter setting, evaluation
OUT1 (pin 4)
• Switching signal for system pressure limit
• Communication via IO-Link
OUT2 (pin 2) • Switching signal for system pressure limit
