IFYIL GT-25 - 5 Control Panel; Introduction

17
KEY 1
5. CONTROL PANEL
5.1 INTRODUCTION
The display panel is a control panel intended for controlling pellet or biomass feeded
furnaces or boilers, integrating a temperature sensor and a RTC used to turn on or off
the controlled heater at preset hours; an IR remote control may be supplied separately.
The panel is equipped with an on/off button with the corresponding I/O icon and 4
white circled keys whose function descriptions appear on the display, close to each of
them.

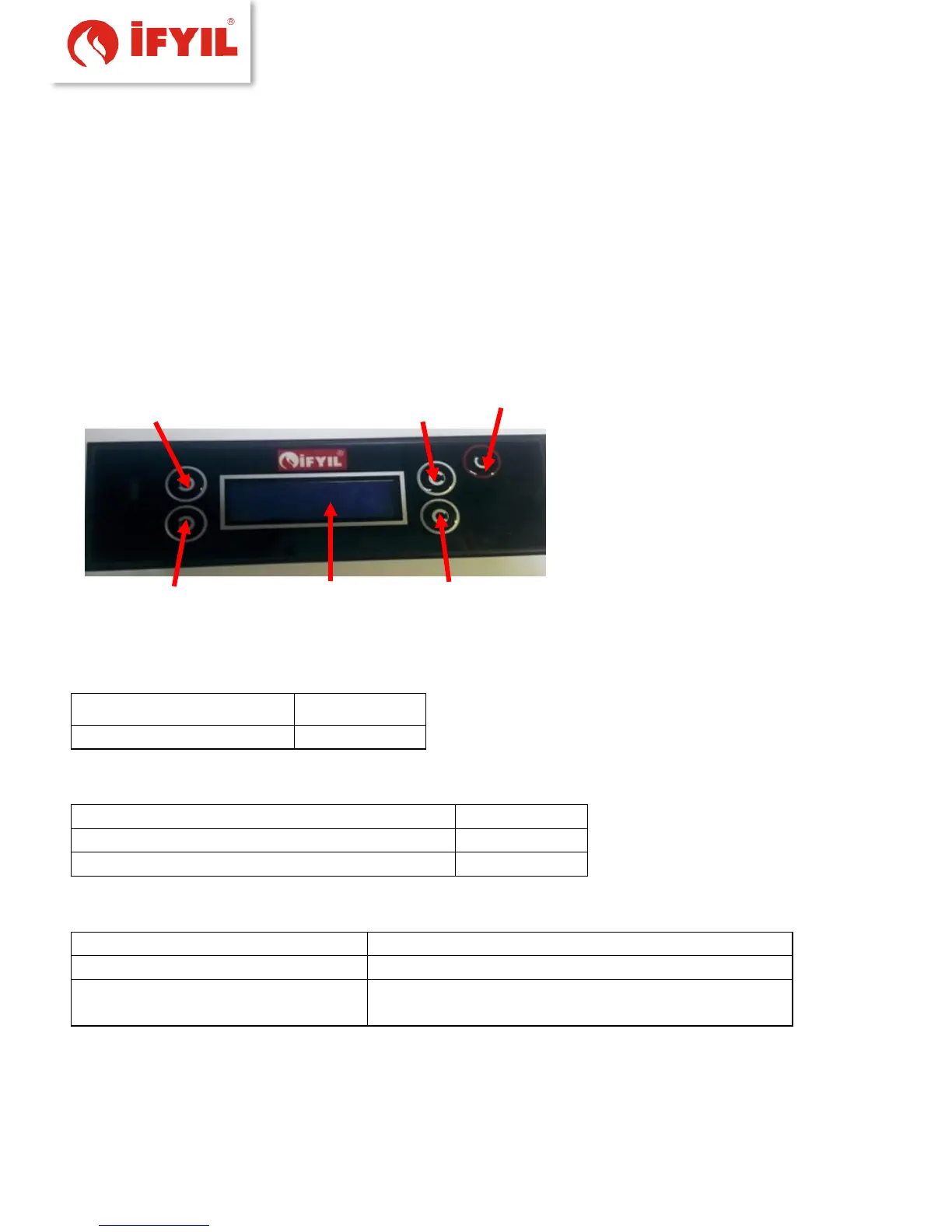

Picture5- PANEL CZ107 OT
Power Supply
Supply Voltage
18V DC, 5V DC
Max. Power Consumption
0,5 VA
Environmental Specifications
Operational temperature range
0°C to +50°C
Storing temperature
-10°C to +60°C
Max relative humidity degree (noncondensing)
89%
Mechanical Specifications
Board overall dimensions (WxDxH)
(1173x582x840) mm
Weight
about 235 kg
Mounting Position
Any (the max. Wiev angle of the display may condition
the mounting position)
KEY 2
KEY5
KEY 4
SCREEN
KEY 3
