Fuel Injection System – 550 and older 625 models
(without return to tank fuel)

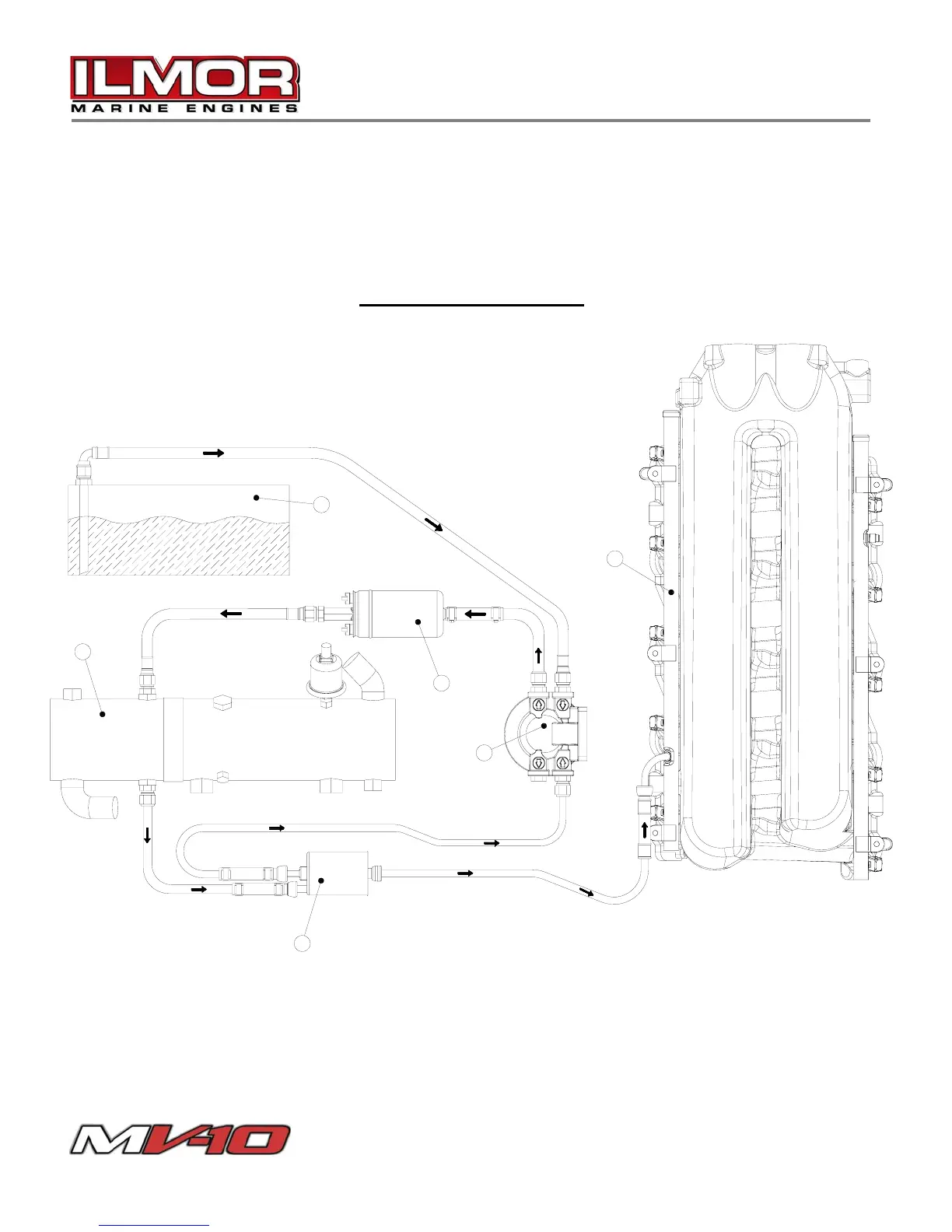

FUEL SYSTEM DIAGRAM
A
C
B
D
E
F
RETURN LINE
58psi REGULATED PRESSURE
A. MVP0115 TANDEM COOLER OIL/FUEL
B. MVP0136 WATER FUEL SEPARATOR
C. MVP0025 FUEL PUMP
D. MVP0111 FUEL FILTER/REGULATOR
E. FUEL TANK IN BOAT
F. MV10 FUEL RAIL
Fig. 7
