Mounting the Engine
The MV10 is supplied with motor mounts which allows installation into typical V-hulls and
catamarans with single, dual or triple engine configurations.

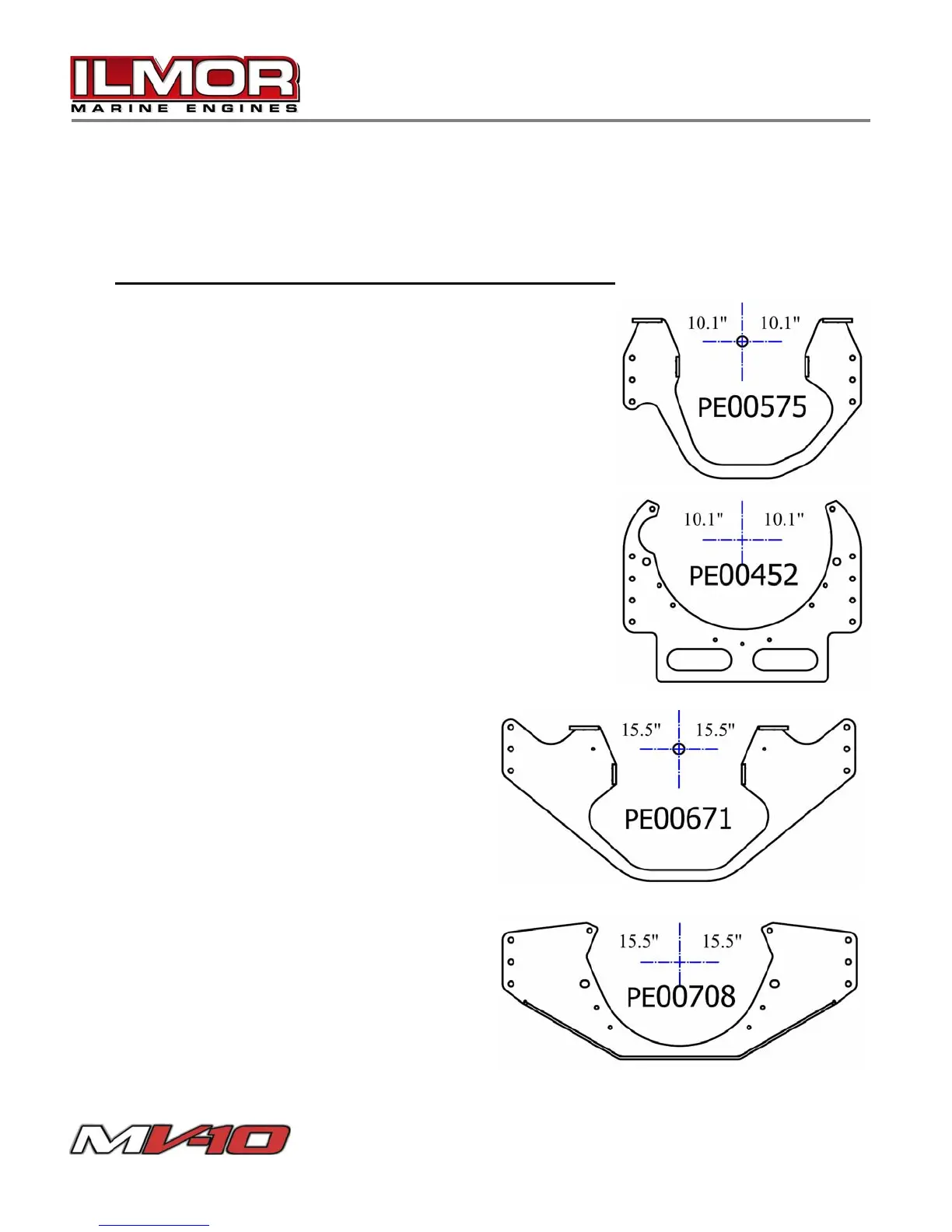

Engine Mounting: Plate Options, views from stern to bow:
Often referred to as an “offshore” plate, this style incorporates mounts at the engine block
joined with a plate passing below the engine.
Standard Front Plate (PE00575)
Stringer mounting hole spacing: 20.2” centered.
These mounts fit the majority of v-hulls and catamarans on
the market with a two stringer set-up, can be used for single
or multiple engine applications.
Standard Rear Plate (PE00452)
Stringer mounting hole spacing: 20.2” centered.
Center Front Plate (PE00671)
Stringer mounting hole spacing: 31” centered.
These mounts are typically used for single engine
boats and triple engine boats where the center
engine is mounted forward.
Center Rear Plate (PE00708)
Stringer mounting hole spacing: 31” centered.
This plate is reinforced to control front to rear
engine motion. These mounts are typically used for
single engine boats utilizing a driveshaft or unsupported
transmission and triple engine boats where the center engine is mounted forward and/or
utilizing a driveshaft or unsupported transmission.
