Fuel Injection System - 550, older 625, and older 7-10 models

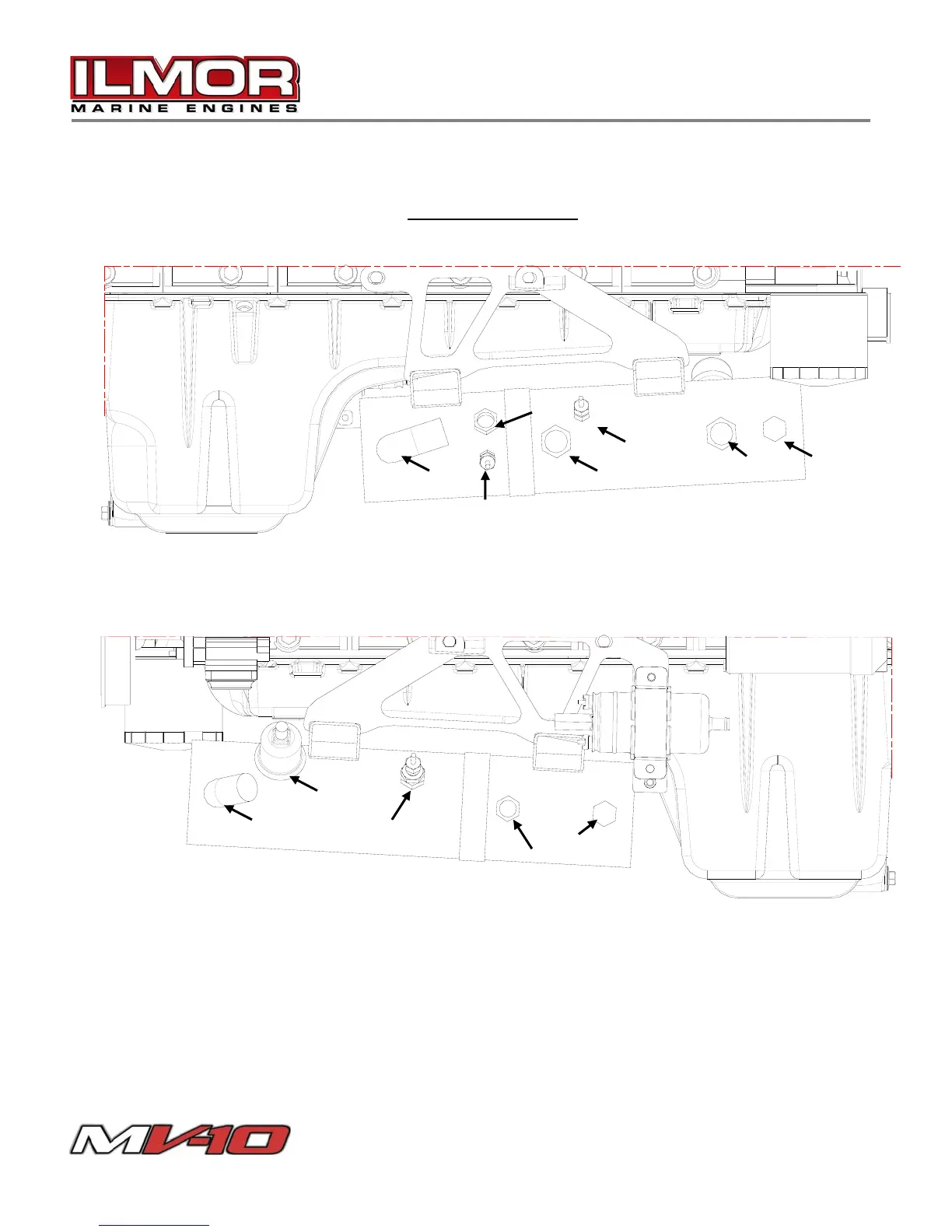

FUEL/OIL COOLER
Starboard (Right) Side:
C
E
F G
A
D
B
Fig. 12
Port (Left) Side:
I
J H
L
K
Right Side Left Side
A – Seawater Outlet H – Seawater Inlet
B – Plug (remove for fuel pressure gauge) I – Oil Pressure Sender
C – Fuel outlet to regulator J – Oil Temperature Sender
D – Oil engine in K – Fuel Inlet
E – Oil pressure alarm sender L – Zinc Plug
F – Oil engine out
G – Zinc Plug 3/8” male NPT (remove for seawater pressure gauge)
