ILMOR MV-10 - Electrical System - ECM Connector C Pin-Out

Owner’s Manual &
Installation Instructions
Revision 6e
Page 33
Electrical System - ECM Pin-Out cont’d

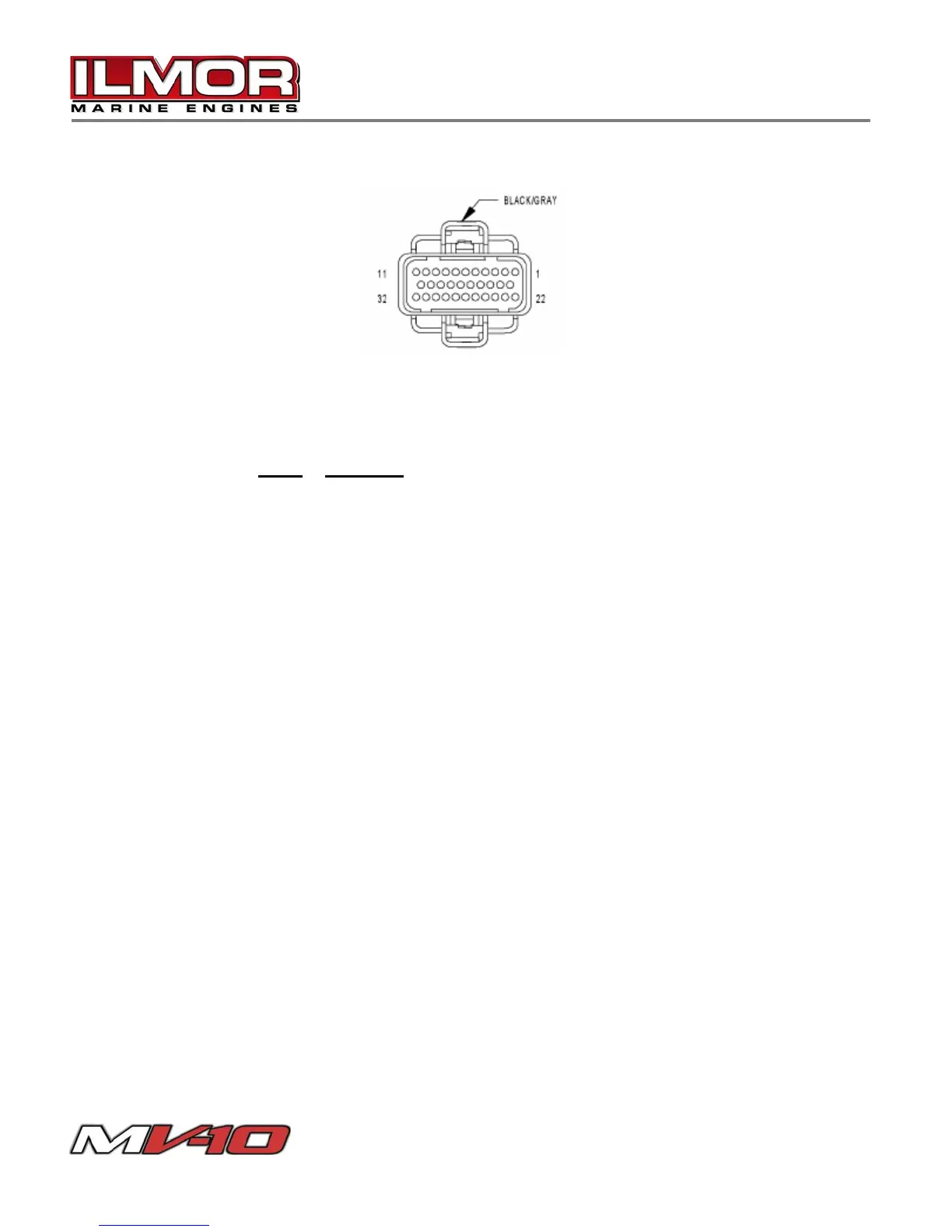

Connector C:
Pin #
Function
1 -
2 -
3
Automatic Shutdown Relay Control
(ASD)
4-6 -
7 Knock Sensor
8-11 -
12 Automatic Shutdown Relay Output
13-16 -
17 Starter Motor Relay Control
18 Knock Sensor #2
19 Fuel Pump Relay
20-24 -
25 Alternator Source
26-32 -
