Image DE100 - Page 55

Section 8 Page 2
Item Part No. Qty.
1
A0-E010-035 1 Circuit breaker 2A.
2
A0-E033-009 1 Switch ON-OFF
3
A0-A090-112 1 Sticker DE01
4
A0-E031-050 1 DE01 Board Timer Digital
A0-E032-022 1 Emergency Stop Button, Turn To Release, Metal Ring
A0-E032-023 1 Connector Base, E-Stop
A0-E032-024 1 Contact Block, N.C, E-Stop
6
A0-E020-001 1 Ignition control 24V, 50/60HZ, 0.25A
7
A0-E059-005-01 1 Lamp, indicator
8
A0-E019-012 1 Wire, suppression
9
A0-E021-039 1 Terminal block
10
A0-E020-203 1 Wires harness cable 5 pins 30 cm
A0-E055-053 1 Connector Housing Male 4 Pos
A0-E055-054 1 Connector Housing Female 4 Pos
A0-E055-051 1 Connector Housing Male 2 Pos
A0-E055-052 1 Connector Housing Femal 2 Pos
A0-E055-006 1 Connector Housing Male 15 Pos
A0-E055-007 1 Connector Housing Female 15 Pos

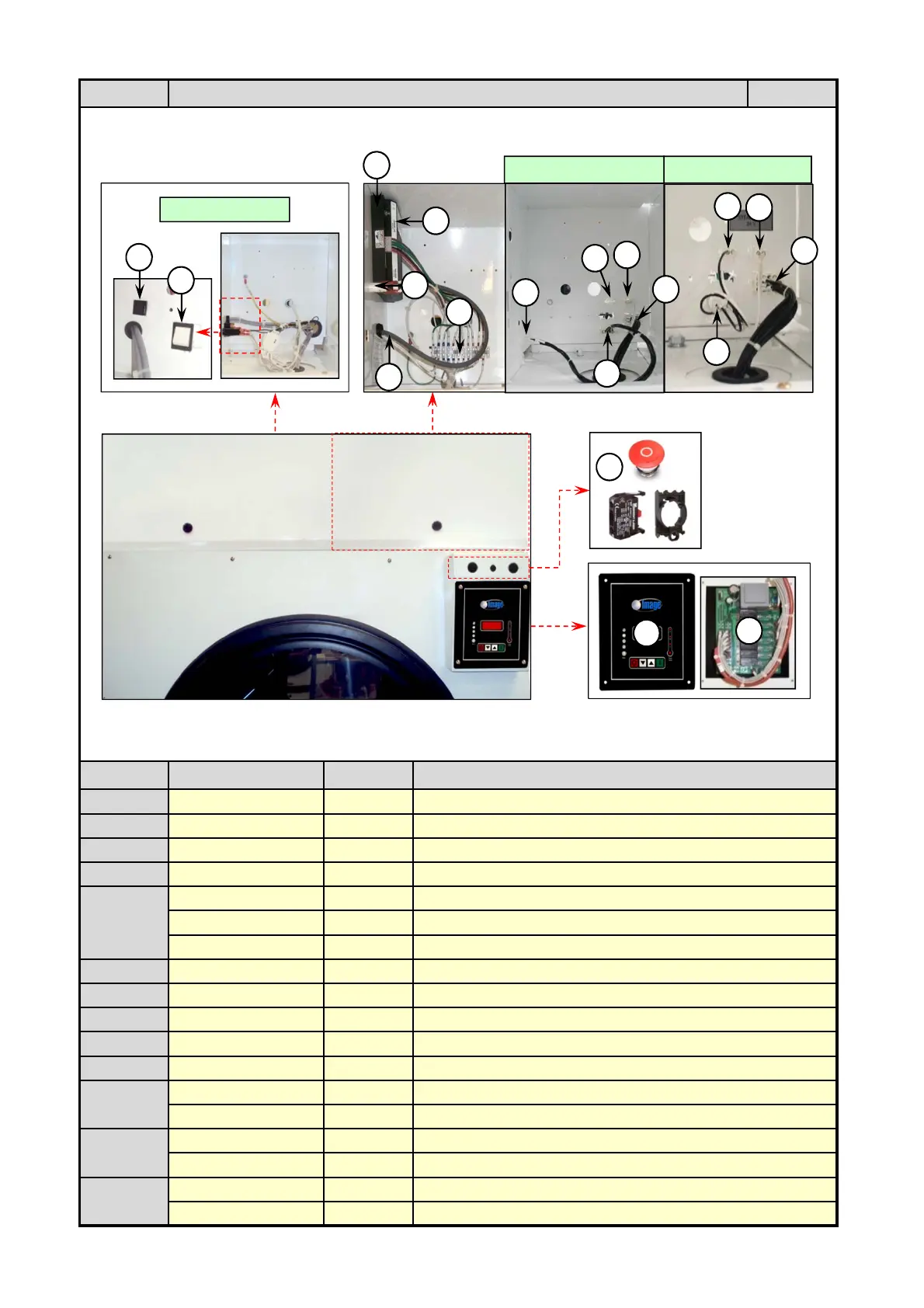

Parts List: Top Front Side Assembly
Description
11
12
13
5
Model: Gas Type
Model: Electrical Type Model: Steam Type
8
2
10
12
11
1
12
6
9
3
4
5
7
12
11
12
13
13
11
