Image DE100 - Page 56

Section 8 Page 3
Item Part No. Qty.
1
A2-SDE1-212 1 Hinge and hinge shaft
2
A2-SDE1-213 1 Door ring
3
A2-SDE1-214 1 Door ring include door glass
4
A2-SDE1-215 1 Door handle
A0-E015-017 1 Door switch
A2-SDE1-182 1 Door switch box
A0-A036-004 2 Magnet catch
A2-SDE1-036 2 Magnet Latch Bracket
7
A0-A001-048-04 1 Door Seal Gasket
8
A0-A003-011 1 Door glass
A2-S100-025 1 Basket galvanized sheet
A2-S100-026 1 Basket stainless steel sheet
10
A0-A029-019 1 Door hinge blue lower (Left and Right side)
11
A0-A029-020 1 Door hinge blue Upper (Left and Right side)

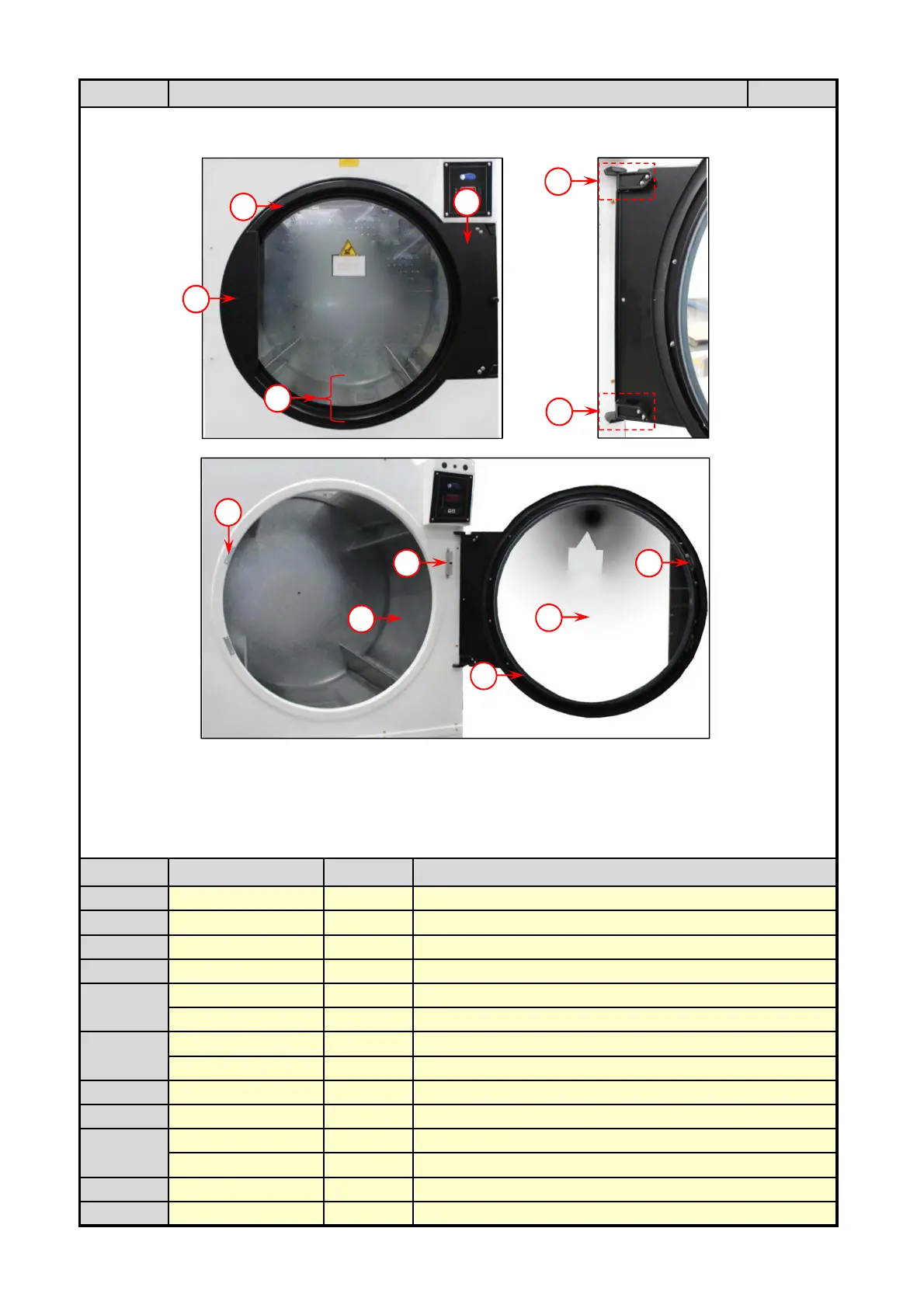

Parts List: Middle Front Side - Door Assembly
6
9
5
Description
2
6
1
4
3
5
7
8
6
9
11
10
