Section 8 Page 9
Item Part No. Qty.
1
A2-S120-012 1 Exhaust duct outlet
2
A2-S120-015 1 Rear panel assembly
3
A2-S120-101 1 Electrical box
4
A2-S120-104 1 Back guard (Upper)
5
A2-S120-105 1 Back guard (Lower)
6
A0-E014-014 1 Micro switch (Standard)
7
A2-SDE1-027 1 Cabinet sail switch shell
8
A0-E008-873 1 Basket motor 1 HP. /4 P. 50/60HZ./3 PH
9
A0-E008-874 1 Blower motor 3 HP. /4 P. 50/60HZ./3PH.
10
A2-S120-031 1 Basket motor mounting plate
11
A2-S120-032 1 Suction fan Motor mounting plate
12
A0-E023-009 1 Proximity sensor (Option)
13
A0-A018-016 2 Hose, Water supply flush hose, 1/2" (Option)
14
A0-E040-023 1 Supply valve 2 way 3/4" (Option)
15
A0-A011-091 1 Nipple, Female-Male 3/4" (Option)
16
A2-S120-084 2 Water Tube (For Fire Protection)
17
A2-S120-103
1
Cover Electrical box
18
A2-S120-108 1 Plate for Support Electrical Equipment
Description

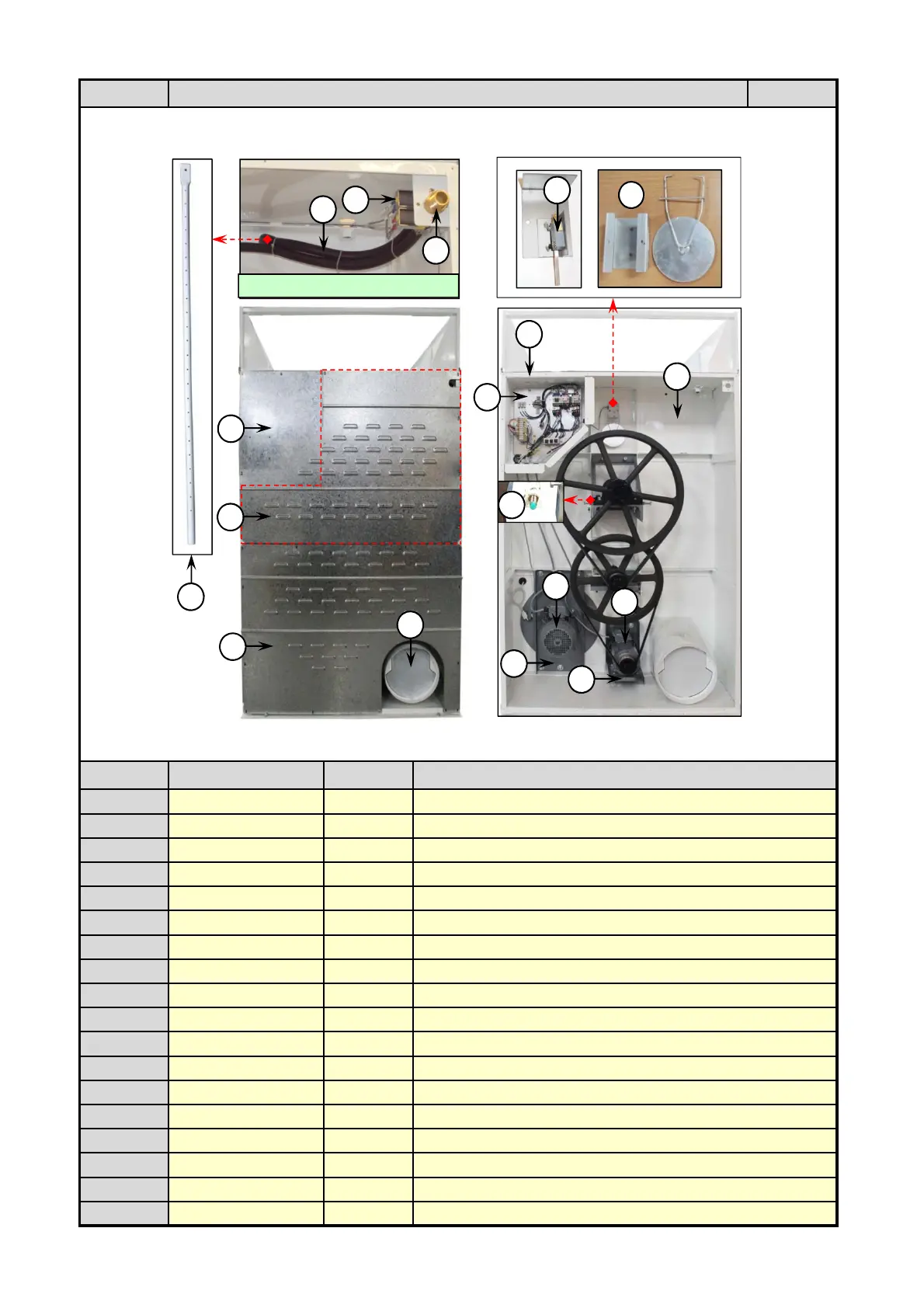

Parts List: Middle Rear Side - Driving System
7
Model: Option
16
2
15
1
3
6
4
5
9
8
13
12
11
10
14
17
18
To Next Page
