Image DE100 - Page 64

Section 8 Page 10
Item Part No. Qty.
1
A0-M008-033 1 Basket Pulley
2
A2-S120-022 1 Bearing mount, Top
3
A0-A004-274 2 Bearing block unit+ housing M16
4
A2-S120-024 1 Basket shaft
5
A0-M009-034 1 Basket pulley bushing
6
A0-M008-032 1 Idler pulley
7
A2-S120-023 1 Bearing mount, Lower
8
A0-A004-276 2 Idler Shaft Bearing
9
A2-S120-025 1 Idler Shaft
10
A0-M009-037 1 Idler pulley bushing
11
A0-M009-035 1 Idler sheave bushing
12
A0-M008-030 1 Idler sheave
13
A0-M009-036 1 Motor sheave bushing
A0-M008-031 1 Motor sheave (For 60Hz.)
A0-M008-094 1 Motor sheave (For 50Hz.)
15
A0-A002-710 2 V-Belt
16
A0-A002-215 2 V-Belt
17
A2-SDE1-116 1 Support Base Shaft
14
Description

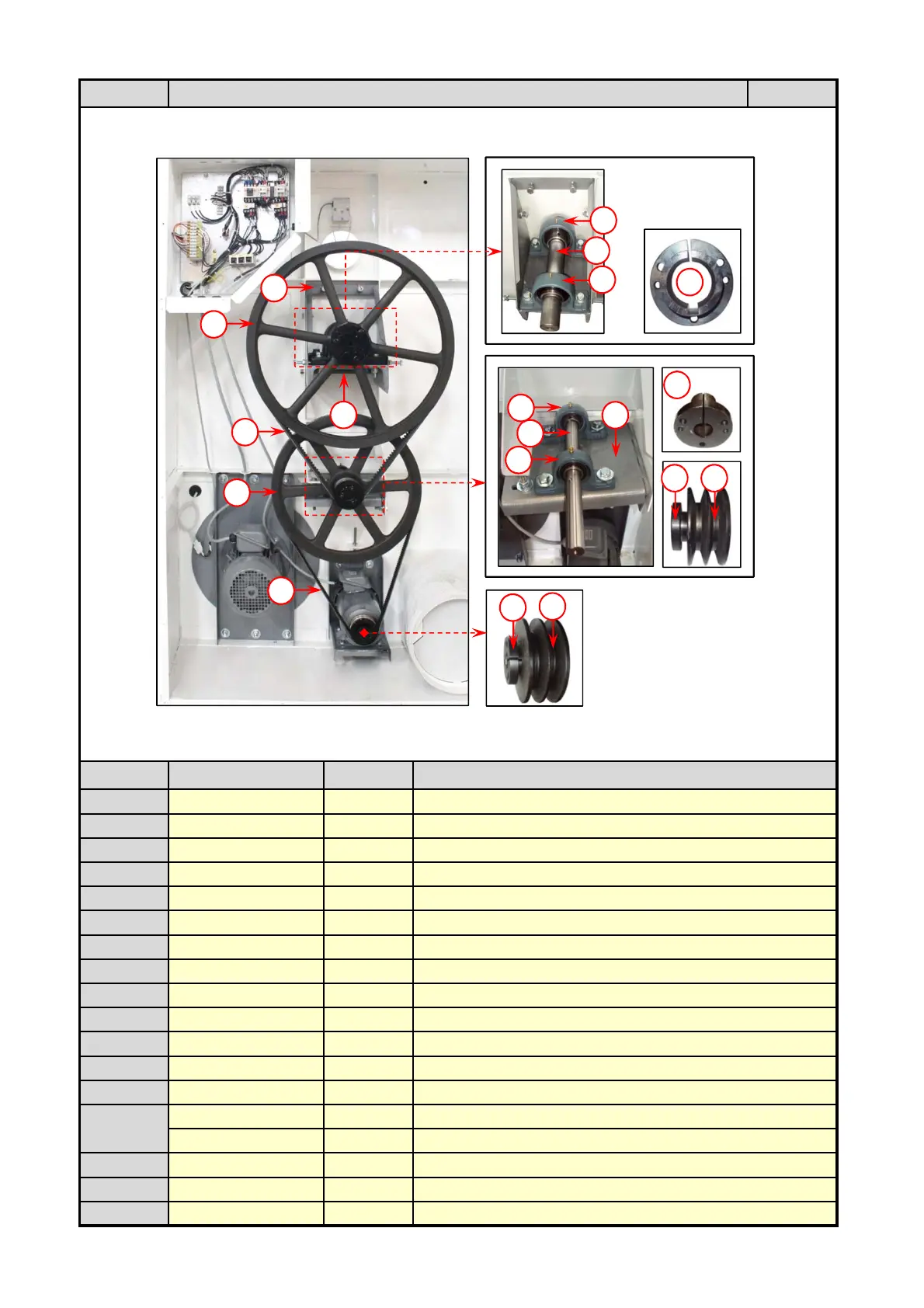

Parts List: Middle Rear Side - Bearing
