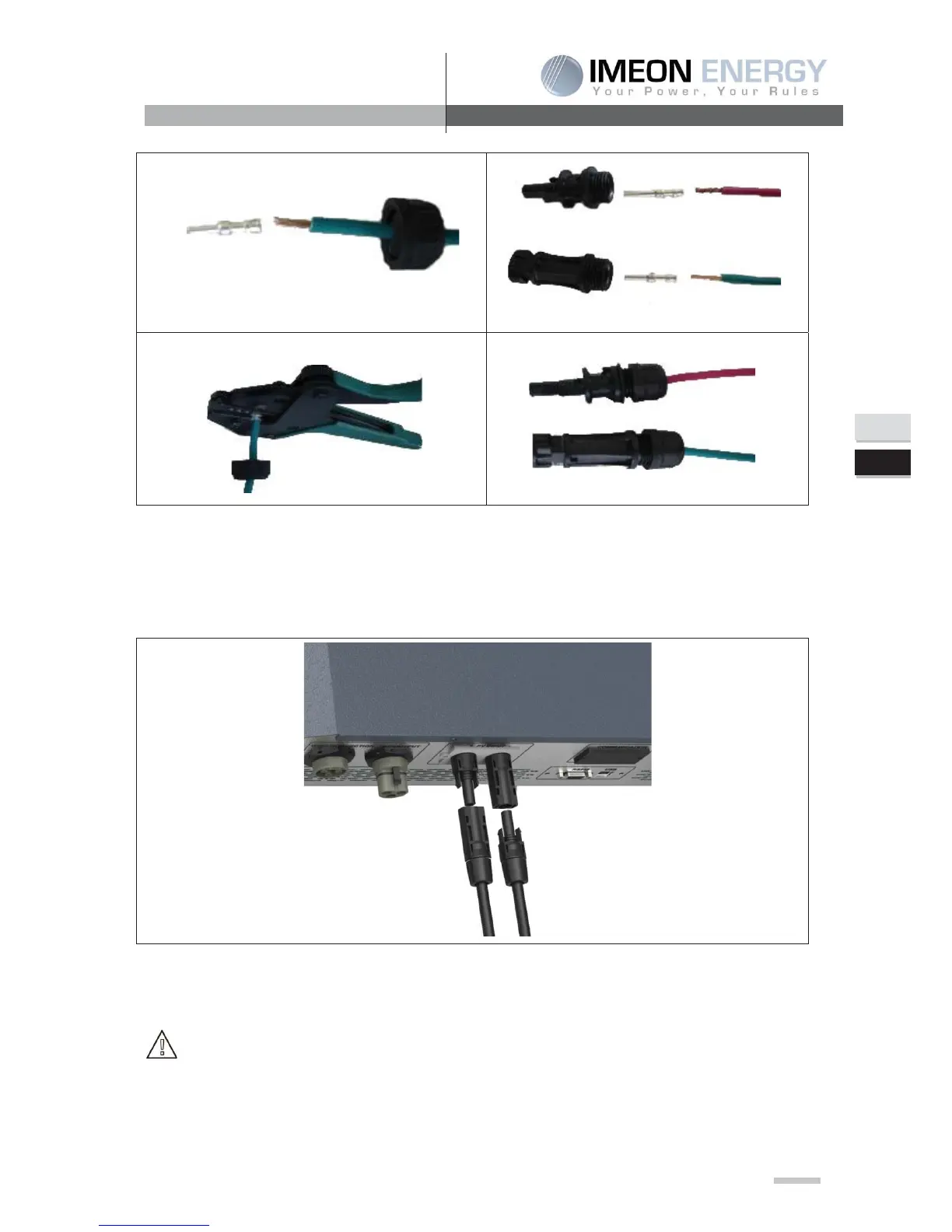

Step 4: Connect positive pole (+) of connection cable to positive pole (+) of PV input connector.
Connect negative pole (-) of connection cable to negative pole (-) of PV input connector.
Refer to the pictures below :
Step 5: Make sure the wires are safely connected.
CAUTION: It's very important for system safety and efficient operation to use appropriate cable
for PV module connection
