3- Installation
3-1 Selecting Mounting Location
¾ Do not mount the inverter on flammable construction materials.
¾ Mount on a solid surface.
¾ IMEON may possibly be noisy during operation which may be perceived as a nuisance in a
living area.
¾ The temperature may cause a reduction of power due to the excessive heating.
¾ Install the IMEON at eye level in order to allow the LCD display to be read at all times.
¾ Dusty conditions on the unit may impair the performance of this inverter.
¾ Do not switch IMEON on if the temperature or the humidity are out or authorized limits. The
ambient temperature should be between 0°C and 40°C and relative humidity should be
between 5% and 85% to ensure optimal operation.
¾ For proper air circulation to dissipate heat, allow a clearance of approx. 20 cm to the side and
approx. 50 cm above and below the IMEON.
¾ For proper operation of this inverter, please use appropriate cables for grid connection.
¾ The recommended installation position (vertical) is to be adhered to.
¾ This inverter is designed with IP20 for indoor applications only.
¾ For the appropriate functioning of this inverter, please use adapted cables cross- section (taking
into account the length of cables, the mode of installation, the impedances, the currents and
tensions).
3-2 Mounting Unit
WARNING: This inverter is heavy! Please be carefully when lifting out from the package.
¾ Installation to the wall should be implemented with the proper screws so that the solar inverter
can be easily attached to the wall. After that, the device should be bolted on securely.

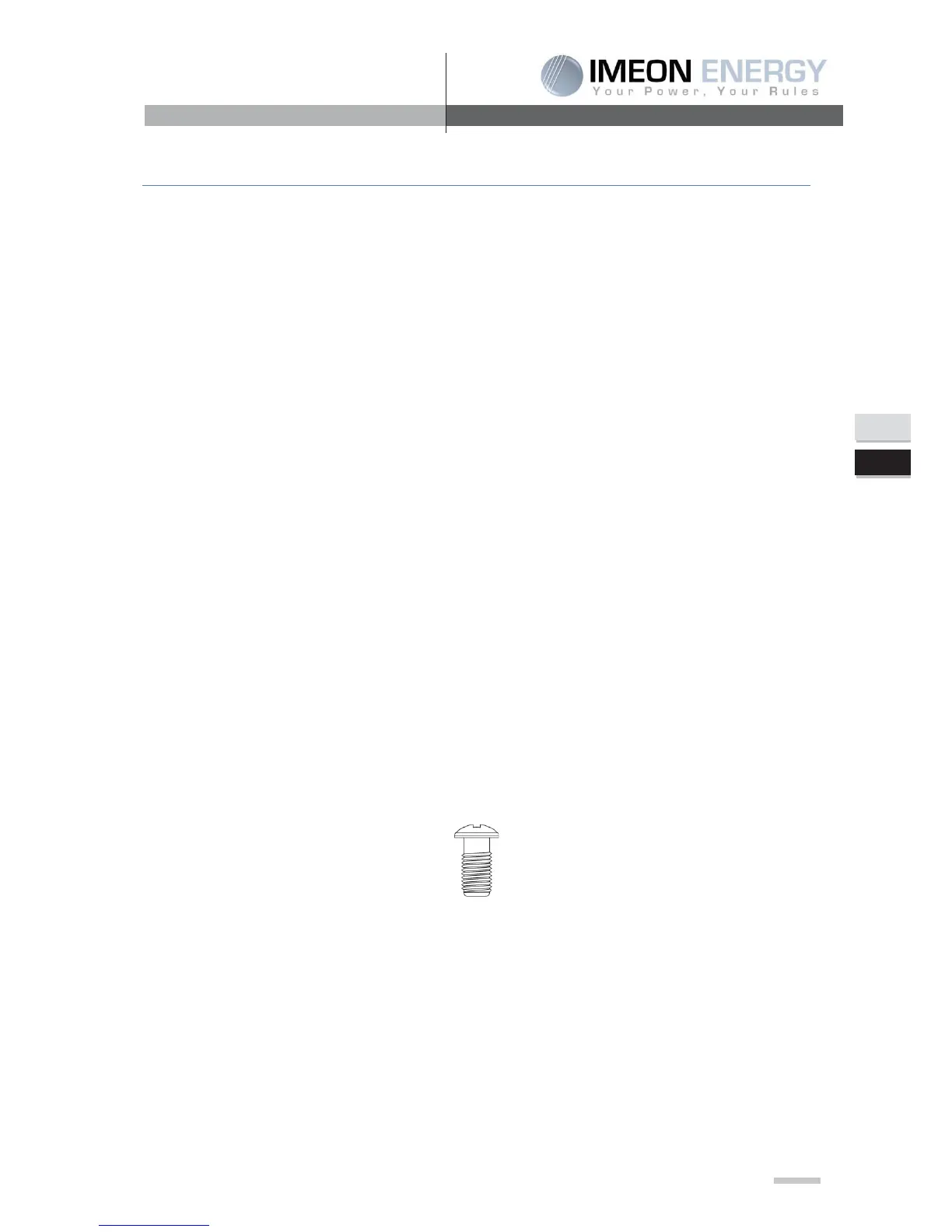

Screw to be used :
- 5 à 9 mm
- Ø M5
¾ Choose an appropriate place of support.
WARNING: Suitable for mounting on concrete or other non-combustible surface only ! Take into
account a space of ventilation between the case and the wall.
