Step 4: Put the battery switch on “ON” position to connect the batteries to the IMEON.
CAUTION: Do not switch the circuit breaker when the IMEON is under load, it can damage the
inverter.

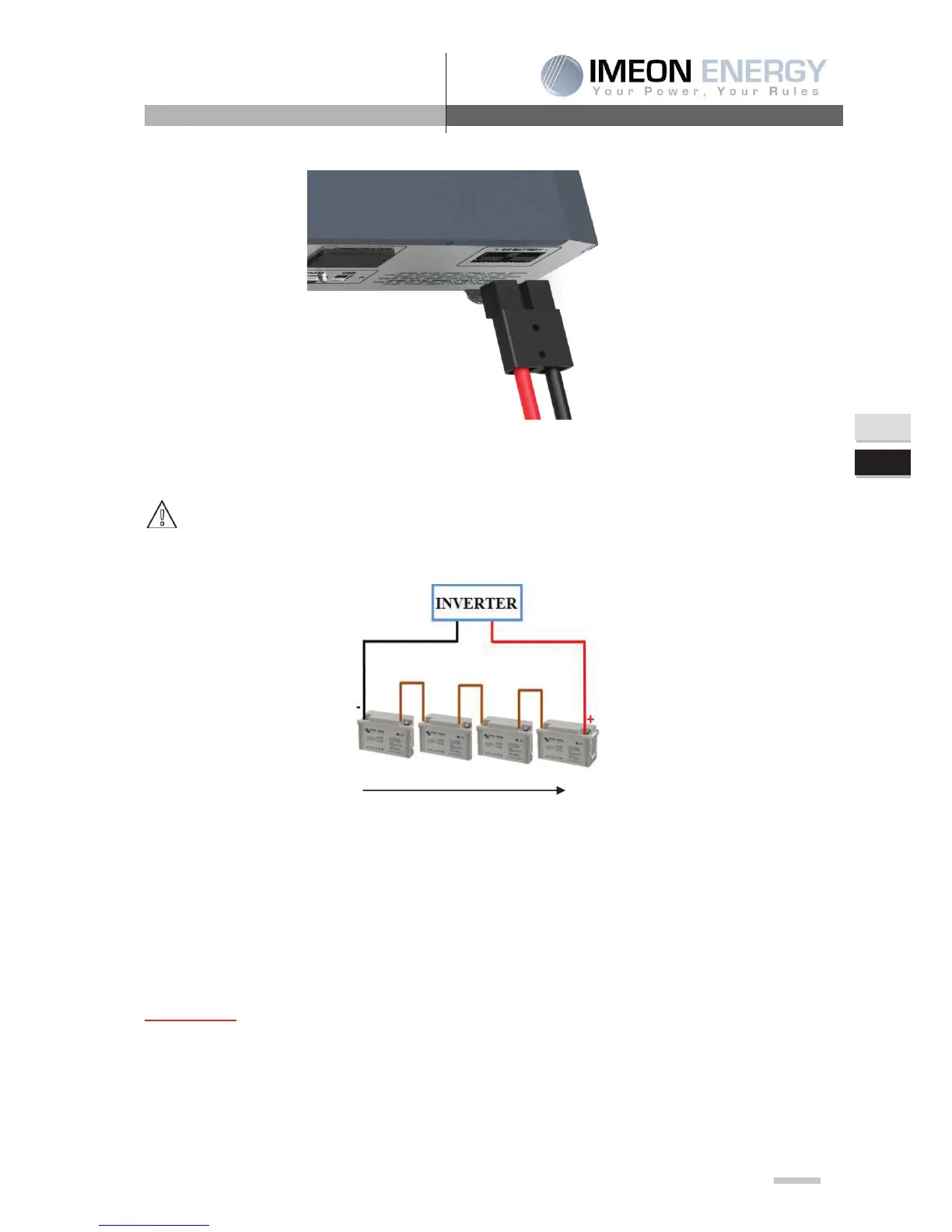

Batteries (4 x 12V = 48V)
To size correctly the battery capacity, a study must be made.
NOTE: Maximum battery current is 80A. Maximum charging current is 25A.
The charging current has to be between 10% and 20% of the total battery capacity
IMPORTANT:
Before connecting them, verify the voltage and the polarity of the battery.
3-6 Load (AC Output) connection
