CAUTION: To prevent further supply to the load via the inverter during any mode of operation,
an additional disconnection device should be placed on in the building wiring installation.
Please use protections (circuit breakers, fuses and lightning conductors) according to existing
standards.
CAUTION: It's very important for system safety and efficient operation to use appropriate cable
for AC connection. To reduce risk of injury, please use the proper recommended cable size as
below.

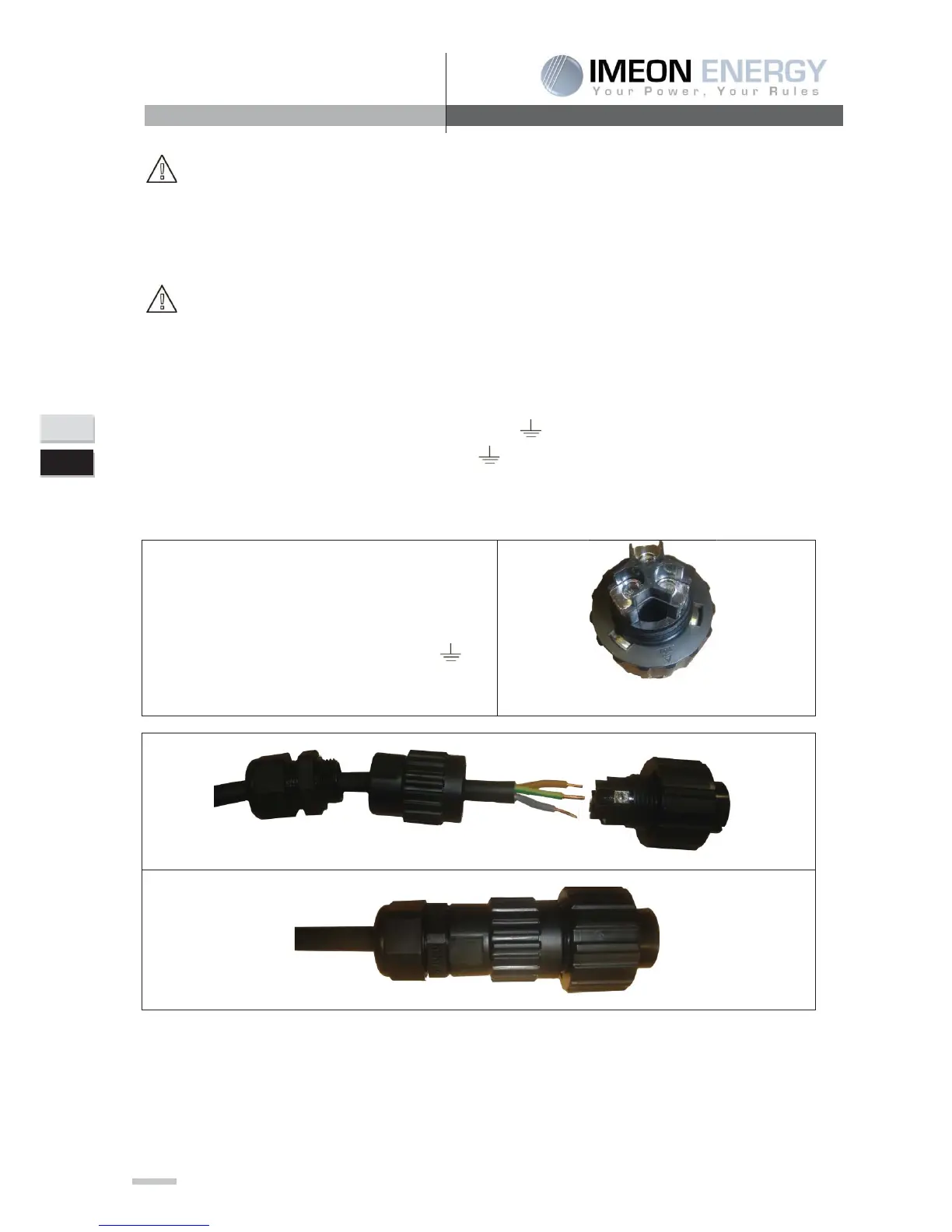

Step 1: Remove insulation sleeve and connect wires according to polarities indicated on terminal
block. Be sure to connect PE protective conductor ( ) first. Respect the connecting of the
neutral (N), of the phase (L) and the ground ( ).
x Connect the phase to the symbol « L »
x Connect the neutral to the symbol « N »
x Connect the ground to the tsymbol «
