2- Overview of IMEON 3.6 inverter

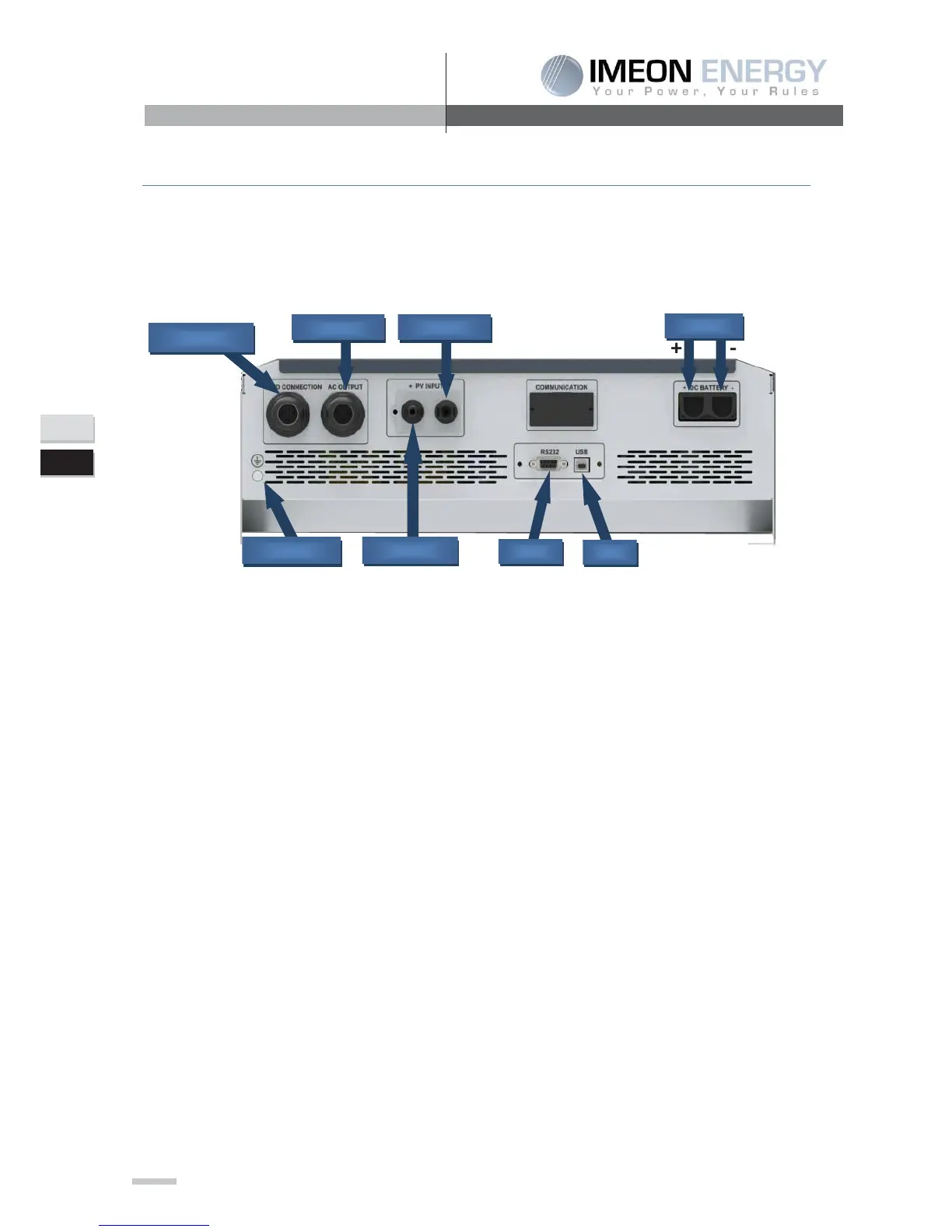

2-1 Connections
IMEON is an inverter that is composed of a grid input, a solar panels output, a battery input/output and
an output for the 230 Vac production.
2-2 Compatibility
This intelligent hybrid inverter is designed to manage the continuous power of three different sources
of energy, the solar panels, the battery (with or without wind turbine), and the grid electricity, according
to various configurations.
The inverter uses the maximum power point technology (MPPT) to optimize the maximum quantity of
energy supplied by the solar panel. When the solar panels MPPT input is between 120Vdc and
510Vdc, this hybrid inverter can inject the power on the utility and charge battery. This inverter is only
compatible with PV module type of single crystalline and poly crystalline. When the PV input voltage is
lower than 250 Vdc, the deliverable power by the inverter will be reduced.
Some precautions must be realized to make sure that the maximum voltage of open circuit never
exceeds 510 volts. Please note that the maximum voltage will occur in the lowest temperature
planned. You will find detailed information about the influence of the temperature in the data sheet of
the PV module manufacturer.
2-3 Standard devices
The inverter contains the following standard devices:
4- Complete readable data thanks to the graphic design by LCD.
5- To prevent the electric risk, a current transformer is used to watch the difference of current
between L and N. When the difference is bigger than the indicated value in the section
"specification", the inverter will cut its grid (utility) injection.
6- Standard communication port (RS232 / RS485 / USB) : Slot communication card (optional cards)
