Manuel d’installation / Installation manual IMEON 3.6 Rev A.2
3-4 PV Module (DC) Connection
CAUTION: Before connecting to PV modules, install separately a DC circuit breaker between
inverter and PV modules.
Put protections (circuit breakers, fuses and lightning conductors) according to existing standards.
Before the photovoltaic system is connected, the solar field’s tension must be verified to
make sure that it is correct.
Never open the inverter when the solar field is connected. Disconnect first this one if it’s necessary.
WARNING: Because this inverter is non-isolated, only two types of PV modules are acceptable:
single crystalline and poly crystalline with only Class A-rated. To avoid any malfunction, do not
connect any PV modules with possibility of leakage current to the inverter. For example, non-
grounded PV modules will cause leakage current to the inverter.
Step 1: Check the input voltage of PV array modules, which have to be included in the range of
functioning of IMEON.
CAUTION: Exceeding the maximum input voltage can destroy the unit!! Check the system
before wire connection.
Step 2: Disconnect the circuit breaker

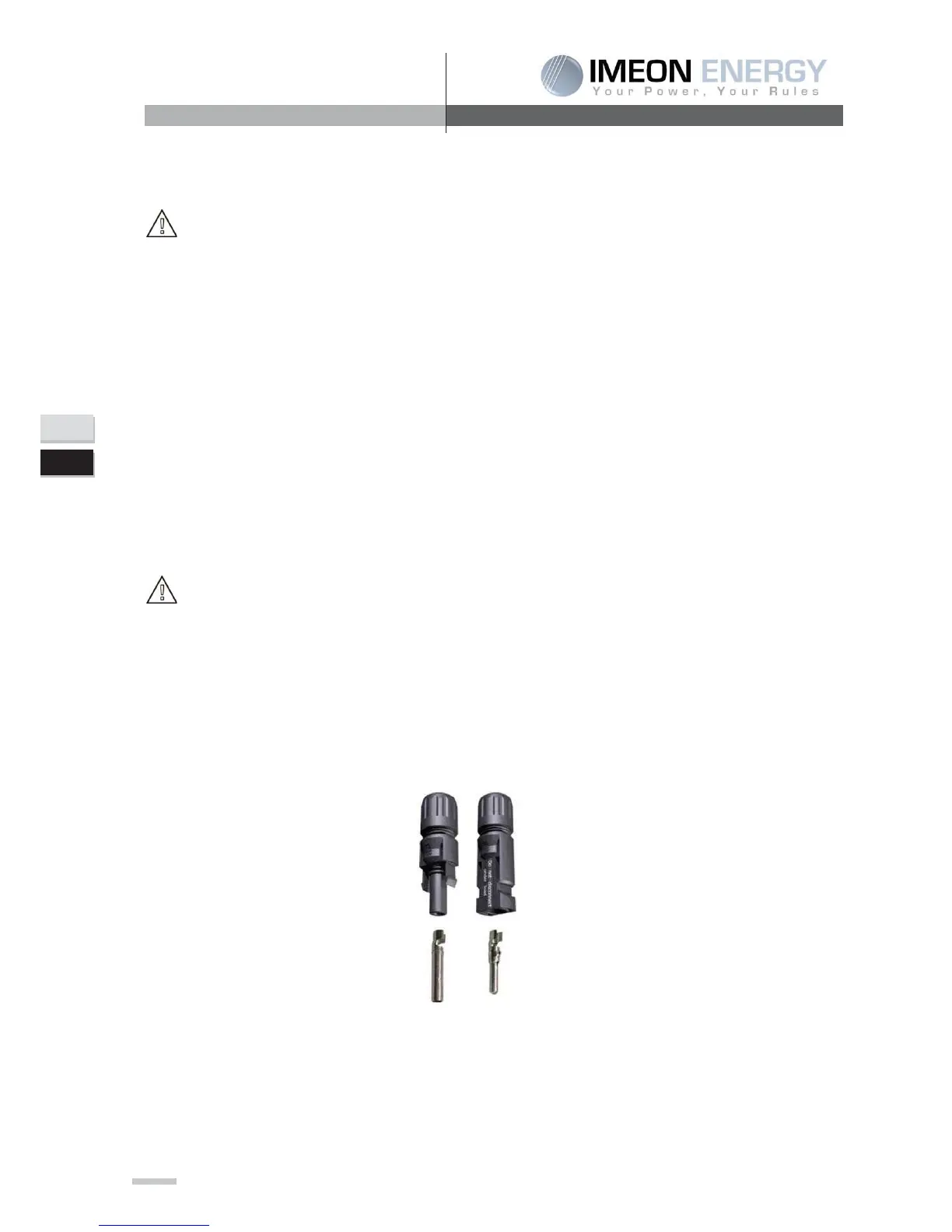

Step 3: Implementation of the supplied connectors
Connecteur DC + Connecteur DC
