Step
2:
Connect the RST
Connector
on the
AC OUTPOUT.
As

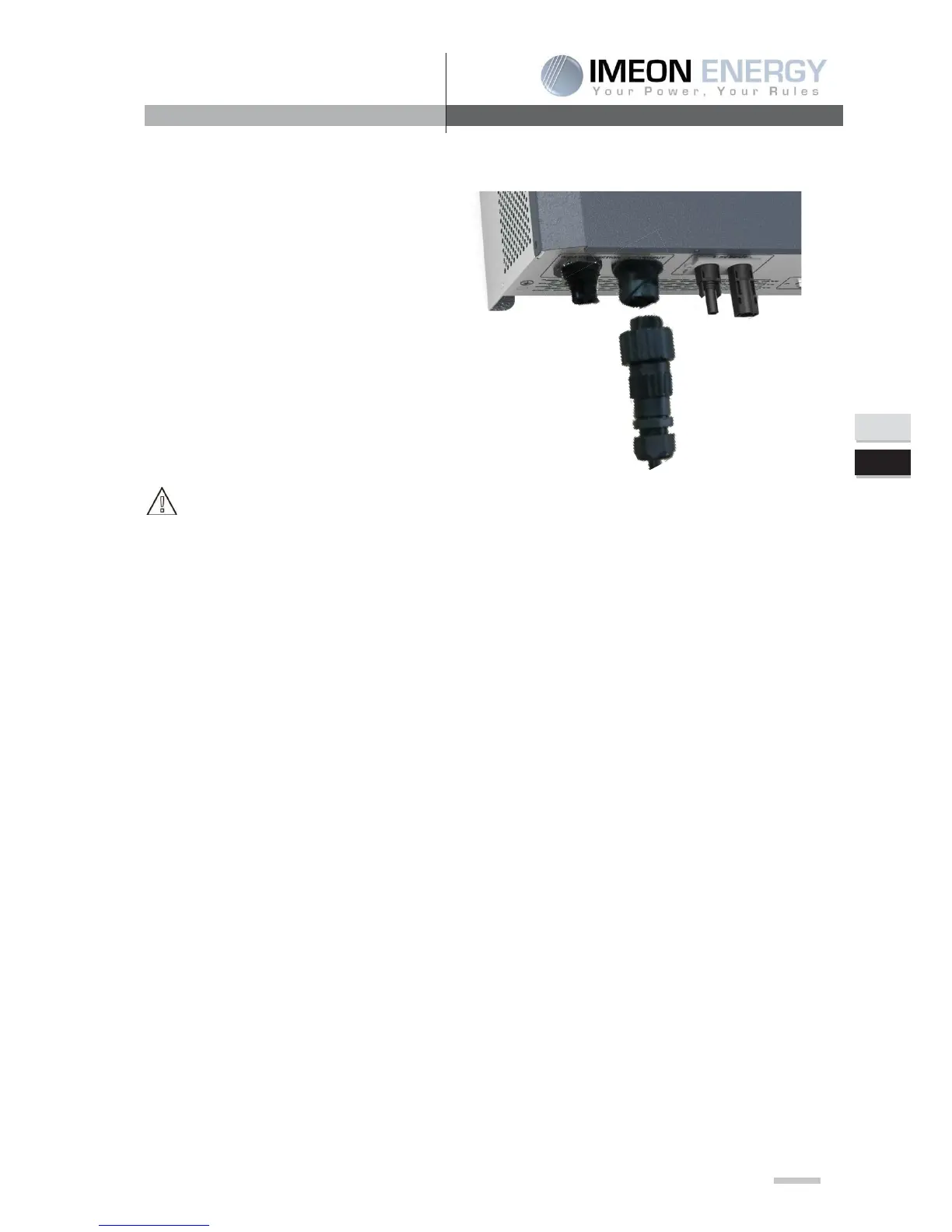

the following image
demonstrates .
Step 3: Make sure the wires are securely connected.
CAUTION: At the time of the AC Output connection, make sure that it has no consumption on
the circuit.
NOTE: AC Output cannot be connected in parrallel to another IMEON and cannoot be connected to
the grid.
NOTE: The inverter current (battery + PV) cannot exceed 16A (13A nominal). In the case of grid
outage, make sure not to go over this figure. Otherwise, it is necessary to use a source switch that can
shed load in the case of grid outage (example: Power Switch).
