6-7

6.1.5 Rate sensor

To detect the corner speed of the hull oscillation, two sensors are installed to inner

ACU (NCL-362).

Name; Rate sensor

Type; CHG-218

Manufacturer; JRC

Fig.6.1.5 Rate sensor

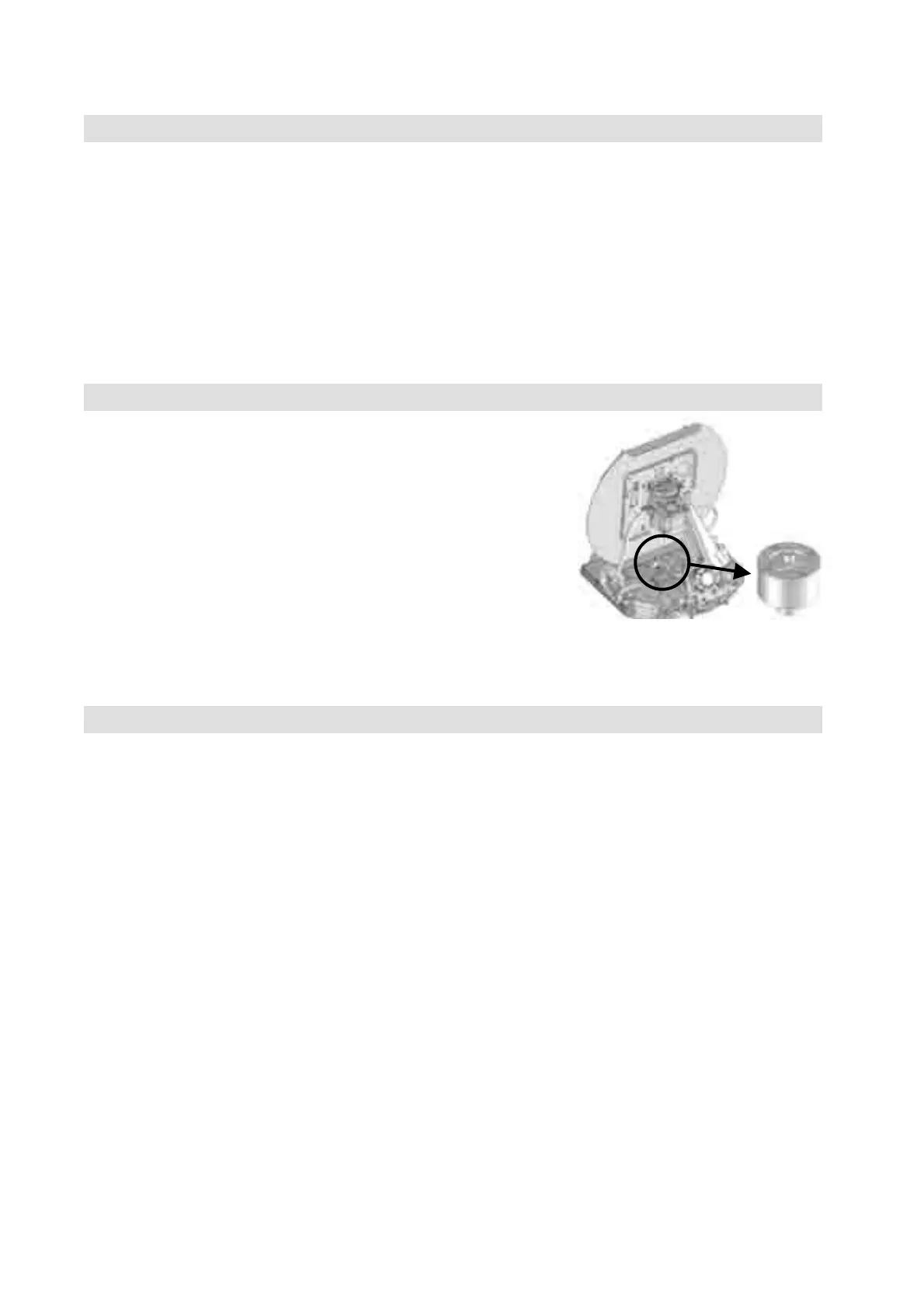

6.1.5 Rotary Joint (RJ)

The Rotary Joint is the joint between

the ADE and the BDE to pass TX /RX

signals and power to the ADE.

(JRC original)

Name; Rotary Joint

Type; CTC-44

Manufacturer; JRC

Fig. 6.1.5 Rotary Joint

6.1.6 Cable

(1) RJ- Radome base

Name; RJ coaxial cable

Type; H-7ZCSC278

Manufacturer; Toko Densi

(2) RJ-RFU cable

Name; RJ-RFU coaxial cable

Type; H-7ZCSC275

Manufacturer; Toko Densi

(3) Control cable

Name; Motor cable

Type; H-7ZCSC282B

Manufacturer; Hirakawa Hewtech
