N.W.: when installing the Ø 80 ducts, a section clamp
with pin must be installed every 3 metres.

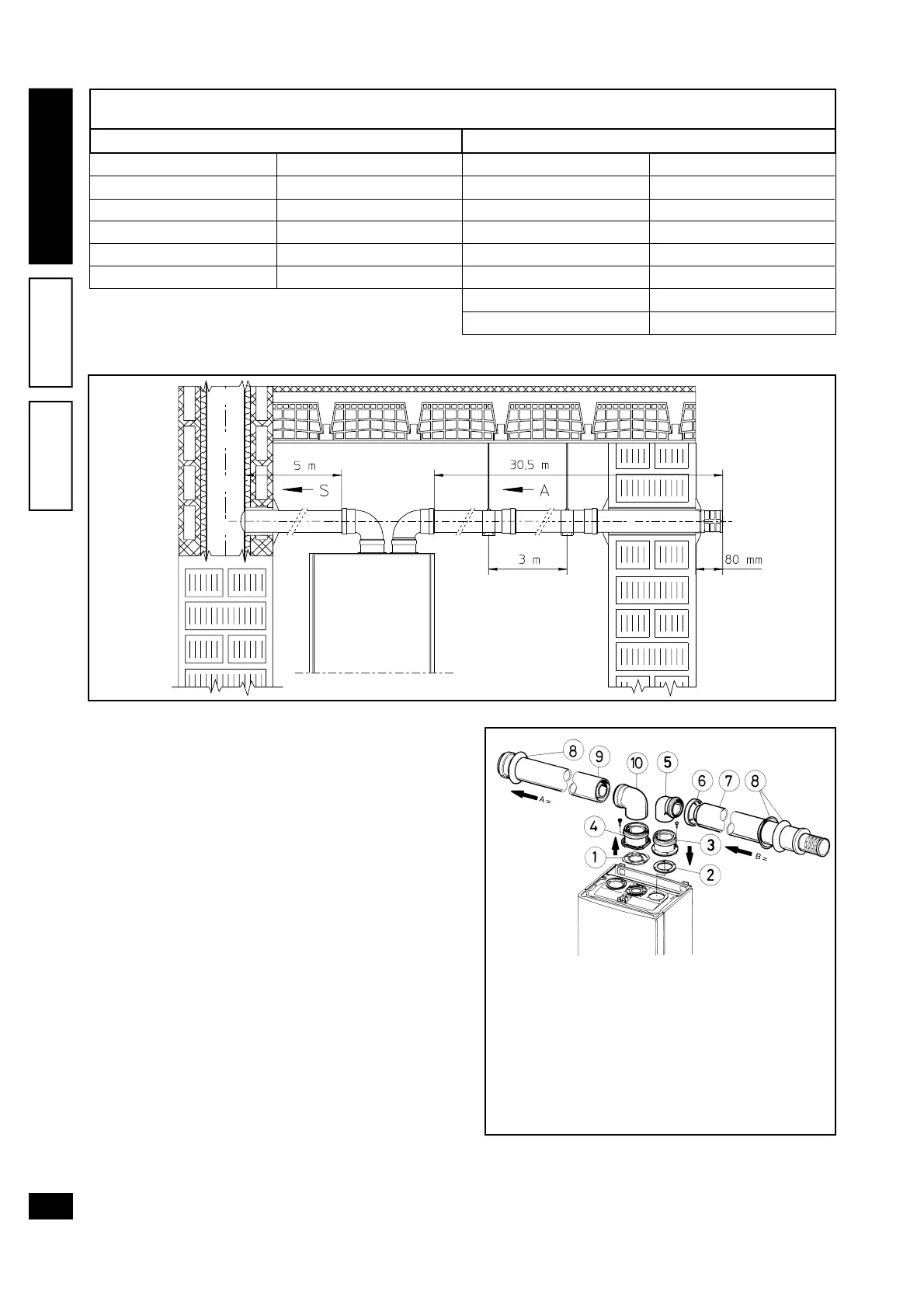

Insulated separator kit Ø 80/80. Kit assembly: In-
stall flange (4) on the central hole of the boiler tak-
ing care to insert seal (1) supplied with the kit and
tighten by means of the screws on the boiler. Re-
move the flat flange on the lateral hole (depending
on installation requirements) and replace with flange
(3) inserting seal (2) already fitted on the boiler and
tighten with the screws supplied. Insert and slide cap
(6) onto bend (5) on the male section (smooth) and
join bends (5) with the male section (smooth in the
female section of flange (3). Fit bend (10) with the
male section (smooth) in the female section of flange
(4). Join the intake terminal (7) with the male section
(smooth in the female section of bend (5) to the end
stop, ensuring that washers (8) are inserted to
achieve correct installation between the pipe and wall
and fit the end cap (6) on terminal (7). Join the ex-
haust pipe (9) with the male section (smooth) in the
female section of the bend (10) to the end stop, en-
suring that the washer (8) is already inserted for cor-
rect installation between the pipe and flue.
• Snap fit extension pipe fittings and elbows. To in-
stall snap-fit extensions with other elements of the
boiler assembly, proceed as follows: fit the con-
centric pipe or elbow with the male section (smooth)
36.0*
INSULATED DUCT
Maximum effective lengths
(including intake terminal with grille and two 90° bends)
Intake (metres)
NON-INSULATED DUCT
Exhaust (metres)
Intake (metres) Exhaust (metres)
29.5*
16
28.0*
2
34.5* 7
26.5*
3
33.0* 8
25.5*
4
32.0* 9
24.0*
5
30.5* 10
22.5*
11
21.5*
12
* The intake duct can be increased by 2.5 metres if
the bend on exhaust is eliminated, 2 metres if the
intake bend is eliminated or 4 metres of both bends
are removed.
The kit comprises:
2 - Seal (1)
1 - Flange seal (2)
1 - Female intake flange (3)
1 - Female exhaust flange (4)
1 - 90° bend Ø 80 (5)
1 - Pipe end cap (6)
1 - Insulated intake terminal Ø 80 (7)
3 - Washers (8)
1 - Insulated exhaust pipe Ø 80 (9)
1 - Concentric 90° bend Ø 80/125 (10)
A= EXHAUST
B = INTAKE
