2.1 CLEANING AND MAINTENANCE.
Important: the heating plants must undergo
periodical maintenance (regarding this, see in
the section dedicated to the technician, relative
to “yearly control and maintenance of the ap-
pliance”) and regular checks of energy eciency
in compliance with national, regional or local
provisions in force. is ensures that the optimal
safety, performance and operation characteristics
of the boiler remain unchanged over time.
We recommend stipulating a yearly cleaning and
maintenance contract with your zone technician.
2.2 GENERAL WARNINGS.
Never expose the suspended boiler to direct
vapours from a cooking surface.
Use of the boiler by unskilled persons or children
is strictly prohibited.
Do not touch the fumes exhaust terminal (if
present) due to the high temperature it reaches;
For safety purposes, check that the concentric
air intake/flue exhaust terminal (if fitted), is
not blocked.
If temporary shutdown of the boiler is required,
proceed as follows:
a) drain the heating system if anti-freeze is not
used;
b) shut-o all electrical, water and gas supplies.
In the case of work or maintenance to structu-
res located in the vicinity of ducting or devi-
ces for flue extraction and relative accessories,
switch off the appliance and on completion of
operations ensure that a qualified technician
checks eciency of the ducting or other devices.
Never clean the appliance or connec-
ted parts with easily flammable substances.
Never leave containers or ammable substances in
the same environment as the appliance.
• Important: the use of components involving
use of electrical power requires some funda-
mental rules to be observed:
- do not touch the appliance with wet or moist
parts of the body; do not touch when barefoot;
- never pull electrical cables or leave the ap-
pliance exposed to atmospheric agents (rain,
sunlight, etc.);
- the appliance power cable must not be replaced
by the user;
- in the event of damage to the cable, switch o
the appliance and contact exclusively qualied
sta for replacement;
- if the appliance is not to be used for a certain
period, disconnect the main power switch.

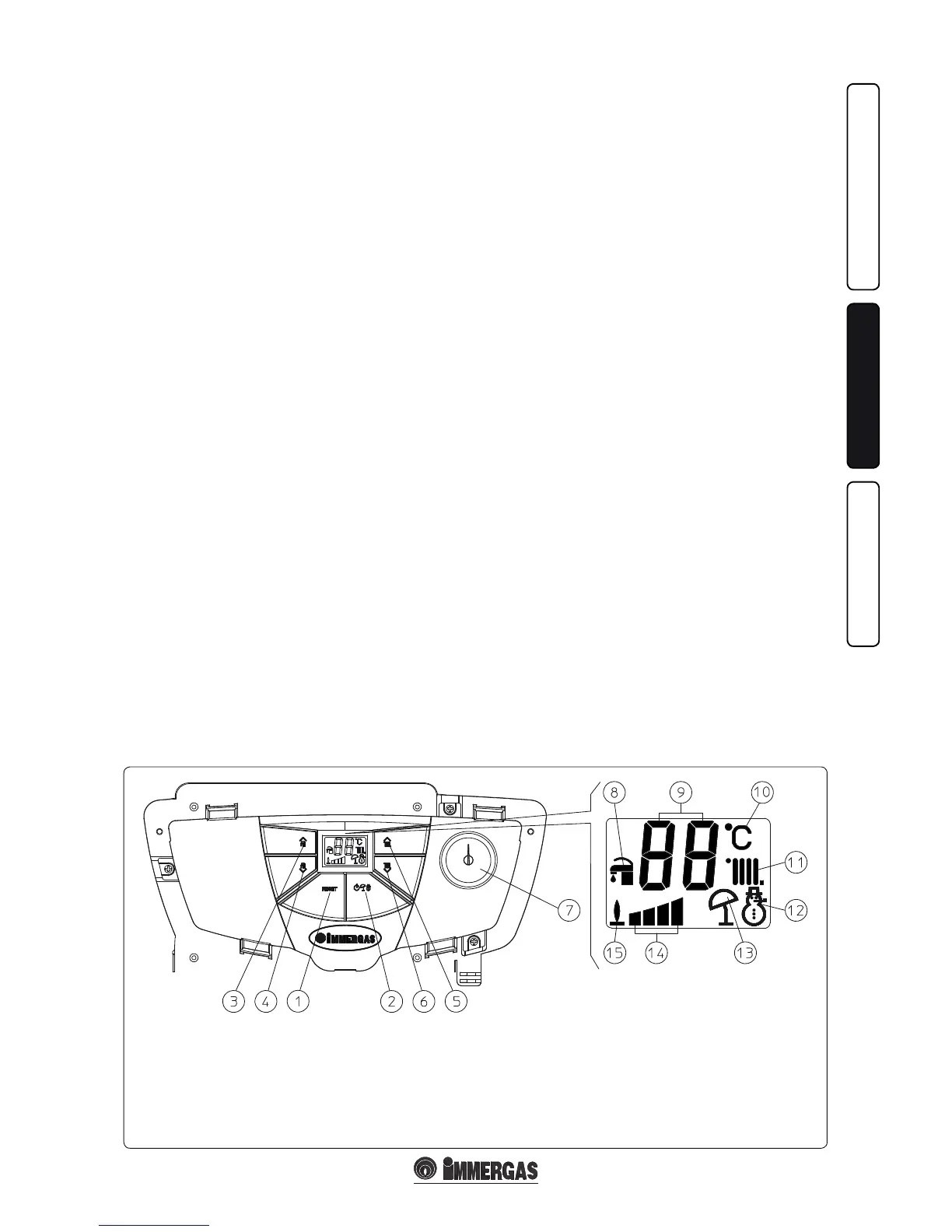

2.3 CONTROL PANEL.
Key:
1 - Reset key
2 - Stand-by key/ summer / winter
3 - Key (+) to increase the domestic hot water
temperature
4 - Key (-) to reduce the domestic hot water
temperature
5 - Key (+) to increase the system water
temperature
6 - Key (-) to reduce the system water
temperature
7 - Boiler manometer
8 - Domestic hot water function
9 - Temperature and error code display
10 - Unit of measurement
11 - Heating mode
12 - Winter
13 - Summer
14 - Output eciency
15 - Flame presence
