13
C12
1-18
C12
1-19
1
3
2
5
6
4
C32
1-211-20
C32
1
2
3
4
6
5
7
8
INSTALLERUSER
MAINTENANCE TECHNICIAN
e kit includes:
N°1 - Gasket (1)
N°1 - Concentric bend Ø 60/100 (2)
N°1 - Adapter Ø 60/100 for
Ø 80/125 (3)
N°1 - Concentric terminal
int./exh. Ø 80/125 (4)
N°1 - Internal wall sealing plate (5)
N°1 - External wall sealing plate (6)
e kit includes:
N°1 - Gasket (1)
N°1 - Female ange
concentric (2)
N°1 - Adapter Ø 60/100)
for Ø 80/125 (3)
N°1 - Wall sealing plate (4)
N°1 - Aluminium tile (5)
N°1 - Concentric pipe
int./exh. Ø 80/125 (6)
N°1 - Fixed half-shell
N°1 - Mobile half-shell

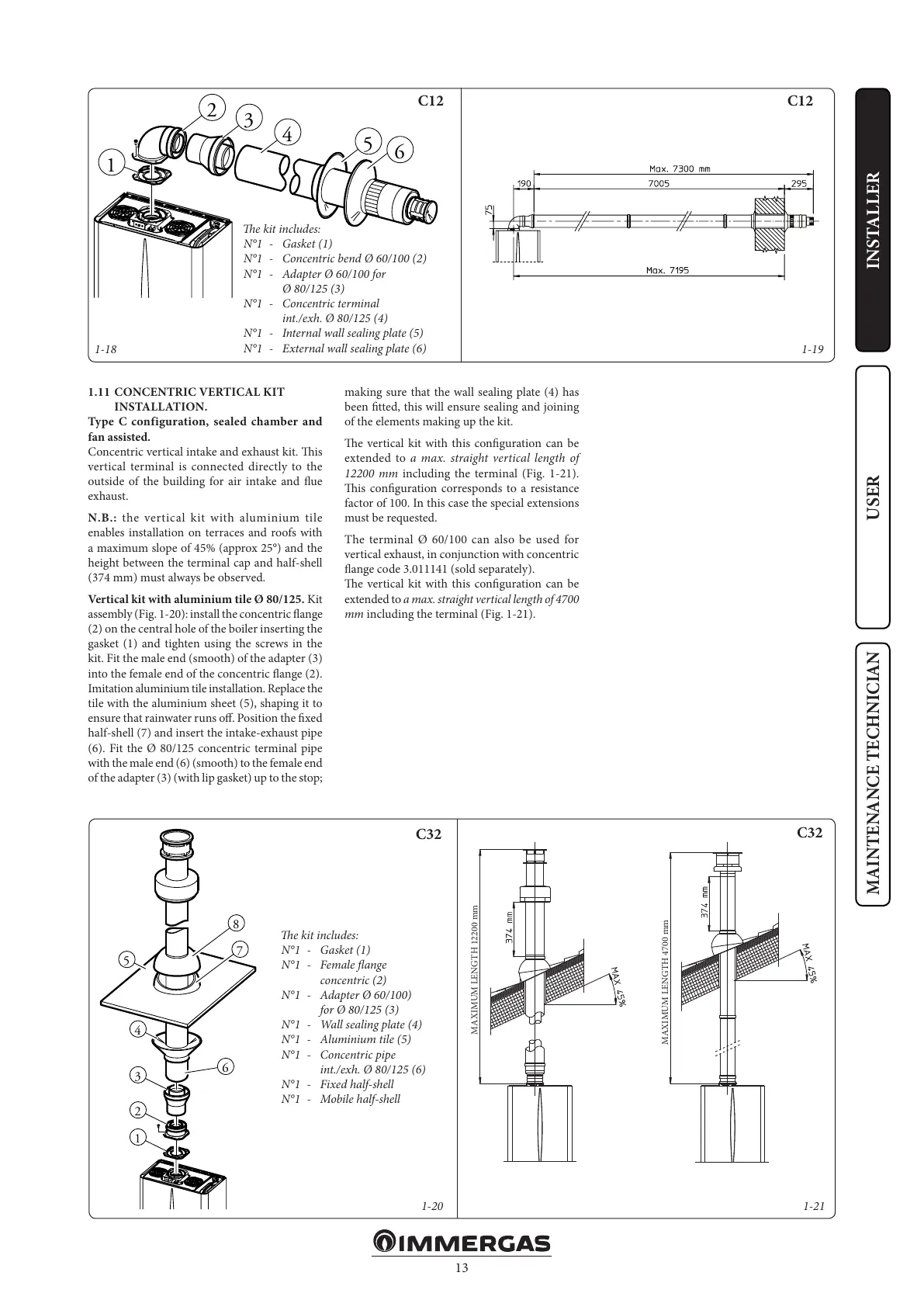

1.11 CONCENTRIC VERTICAL KIT
INSTALLATION.
Type C configuration, sealed chamber and
fan assisted.
Concentric vertical intake and exhaust kit. is
vertical terminal is connected directly to the
outside of the building for air intake and ue
exhaust.
N.B.: the vertical kit with aluminium tile
enables installation on terraces and roofs with
a maximum slope of 45% (approx 25°) and the
height between the terminal cap and half-shell
(374 mm) must always be observed.
Vertical kit with aluminium tile Ø 80/125. Kit
assembly (Fig. 1-20): install the concentric ange
(2) on the central hole of the boiler inserting the
gasket (1) and tighten using the screws in the
kit. Fit the male end (smooth) of the adapter (3)
into the female end of the concentric ange (2).
Imitation aluminium tile installation. Replace the
tile with the aluminium sheet (5), shaping it to
ensure that rainwater runs o. Position the xed
half-shell (7) and insert the intake-exhaust pipe
(6). Fit the Ø 80/125 concentric terminal pipe
with the male end (6) (smooth) to the female end
of the adapter (3) (with lip gasket) up to the stop;
making sure that the wall sealing plate (4) has
been tted, this will ensure sealing and joining
of the elements making up the kit.
e vertical kit with this conguration can be
extended to a max. straight vertical length of
12200 mm including the terminal (Fig. 1-21).
is conguration corresponds to a resistance
factor of 100. In this case the special extensions
must be requested.
The terminal Ø 60/100 can also be used for
vertical exhaust, in conjunction with concentric
ange code 3.011141 (sold separately).
e vertical kit with this conguration can be
extended to a max. straight vertical length of 4700
mm including the terminal (Fig. 1-21).
MAXIMUM LENGTH 4700 mm
MAXIMUM LENGTH 12200 mm
