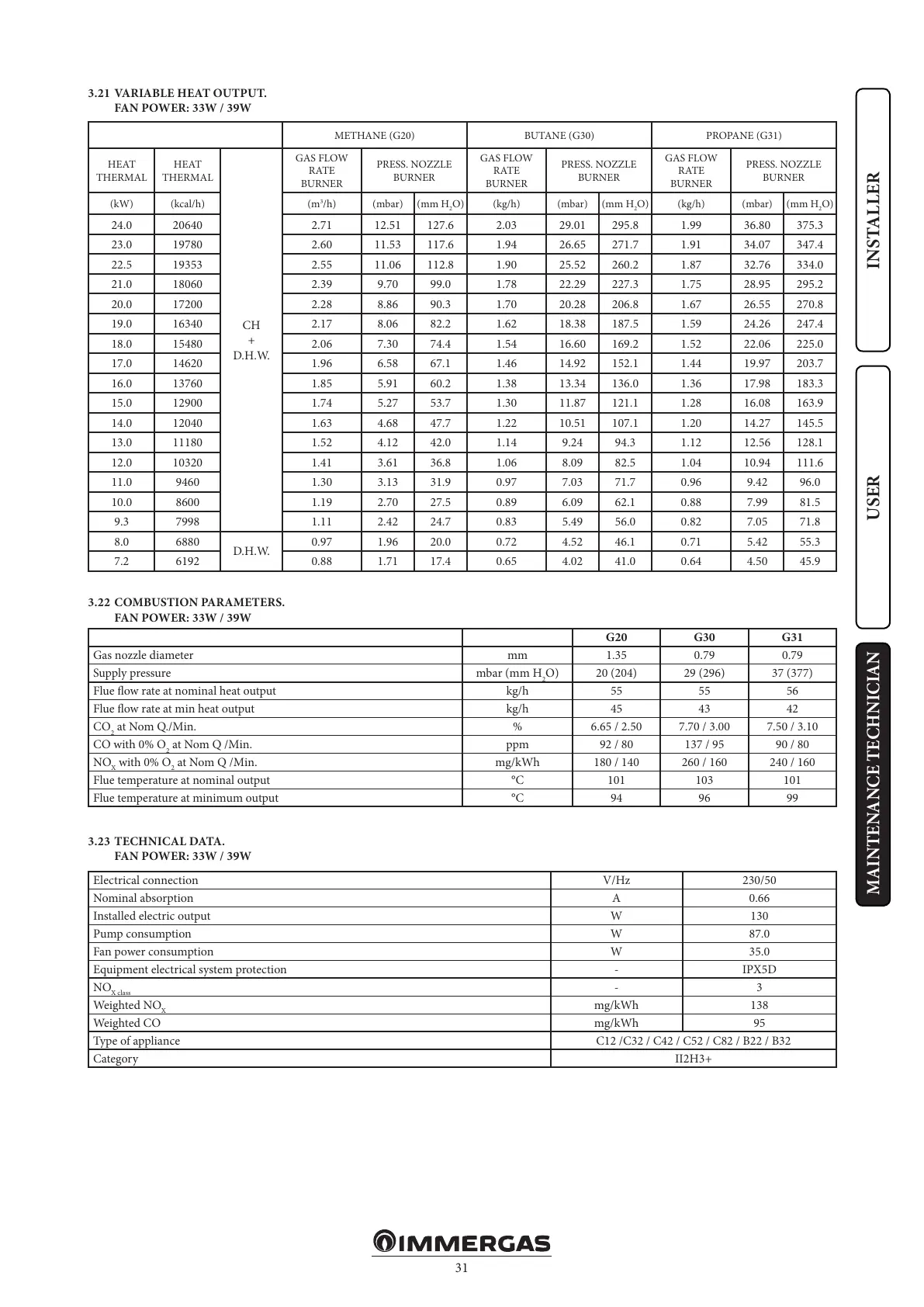

Immergas MINI EOLO 24 3E - Variable Heat Output (33 W;39 W Fan)

31
INSTALLERUSER
MAINTENANCE TECHNICIAN
3.23 TECHNICAL DATA.
FAN POWER: 33W / 39W
Electrical connection V/Hz 230/50
Nominal absorption A 0.66
Installed electric output W 130
Pump consumption W 87.0
Fan power consumption W 35.0
Equipment electrical system protection - IPX5D
NO
X class
- 3
Weighted NO
X
mg/kWh 138
Weighted CO mg/kWh 95
Type of appliance C12 /C32 / C42 / C52 / C82 / B22 / B32
Category II2H3+
3.22 COMBUSTION PARAMETERS.
FAN POWER: 33W / 39W
G20 G30 G31
Gas nozzle diameter mm 1.35 0.79 0.79
Supply pressure mbar (mm H
2
O) 20 (204) 29 (296) 37 (377)
Flue ow rate at nominal heat output kg/h 55 55 56
Flue ow rate at min heat output kg/h 45 43 42
CO
2
at Nom Q./Min. % 6.65 / 2.50 7.70 / 3.00 7.50 / 3.10
CO with 0% O
2
at Nom Q /Min. ppm 92 / 80 137 / 95 90 / 80
NO
X
with 0% O
2
at Nom Q /Min. mg/kWh 180 / 140 260 / 160 240 / 160
Flue temperature at nominal output °C 101 103 101
Flue temperature at minimum output °C 94 96 99
3.21 VARIABLE HEAT OUTPUT.
FAN POWER: 33W / 39W
METHANE (G20) BUTANE (G30) PROPANE (G31)
HEAT
THERMAL
HEAT
THERMAL
CH
+
D.H.W.
GAS FLOW
RATE
BURNER
PRESS. NOZZLE
BURNER
GAS FLOW
RATE
BURNER
PRESS. NOZZLE
BURNER
GAS FLOW
RATE
BURNER
PRESS. NOZZLE
BURNER
(kW) (kcal/h) (m
3
/h) (mbar) (mm H
2
O) (kg/h) (mbar) (mm H
2
O) (kg/h) (mbar) (mm H
2
O)
24.0 20640 2.71 12.51 127.6 2.03 29.01 295.8 1.99 36.80 375.3
23.0 19780 2.60 11.53 117.6 1.94 26.65 271.7 1.91 34.07 347.4
22.5 19353 2.55 11.06 112.8 1.90 25.52 260.2 1.87 32.76 334.0
21.0 18060 2.39 9.70 99.0 1.78 22.29 227.3 1.75 28.95 295.2
20.0 17200 2.28 8.86 90.3 1.70 20.28 206.8 1.67 26.55 270.8
19.0 16340 2.17 8.06 82.2 1.62 18.38 187.5 1.59 24.26 247.4
18.0 15480 2.06 7.30 74.4 1.54 16.60 169.2 1.52 22.06 225.0
17.0 14620 1.96 6.58 67.1 1.46 14.92 152.1 1.44 19.97 203.7
16.0 13760 1.85 5.91 60.2 1.38 13.34 136.0 1.36 17.98 183.3
15.0 12900 1.74 5.27 53.7 1.30 11.87 121.1 1.28 16.08 163.9
14.0 12040 1.63 4.68 47.7 1.22 10.51 107.1 1.20 14.27 145.5
13.0 11180 1.52 4.12 42.0 1.14 9.24 94.3 1.12 12.56 128.1
12.0 10320 1.41 3.61 36.8 1.06 8.09 82.5 1.04 10.94 111.6
11.0 9460 1.30 3.13 31.9 0.97 7.03 71.7 0.96 9.42 96.0
10.0 8600 1.19 2.70 27.5 0.89 6.09 62.1 0.88 7.99 81.5
9.3 7998 1.11 2.42 24.7 0.83 5.49 56.0 0.82 7.05 71.8
8.0 6880
D.H.W.
0.97 1.96 20.0 0.72 4.52 46.1 0.71 5.42 55.3
7.2 6192 0.88 1.71 17.4 0.65 4.02 41.0 0.64 4.50 45.9
