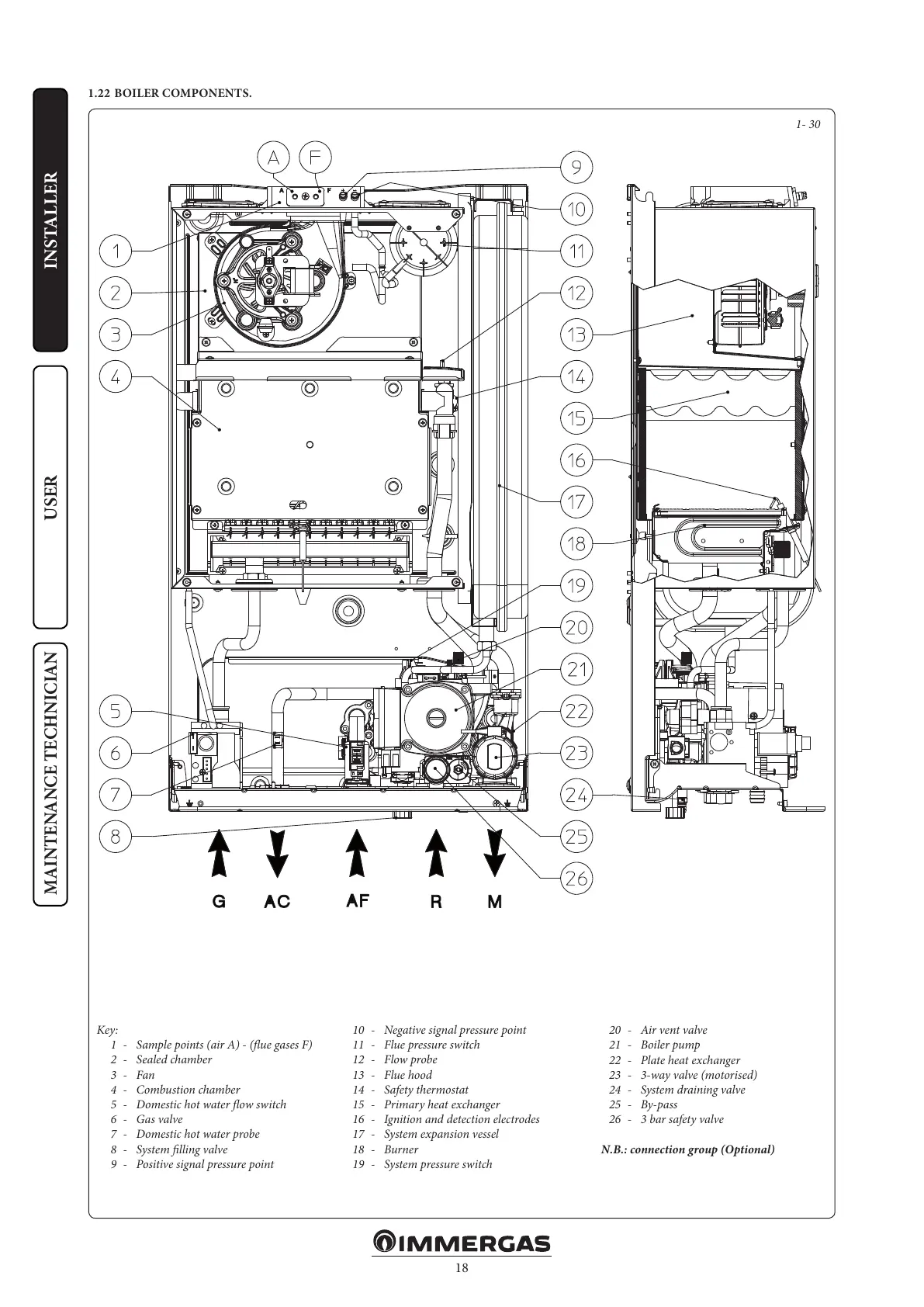

1.22 BOILER COMPONENTS.
20 - Air vent valve
21 - Boiler pump
22 - Plate heat exchanger
23 - 3-way valve (motorised)
24 - System draining valve
25 - By-pass
26 - 3 bar safety valve
N.B.: connection group (Optional)
