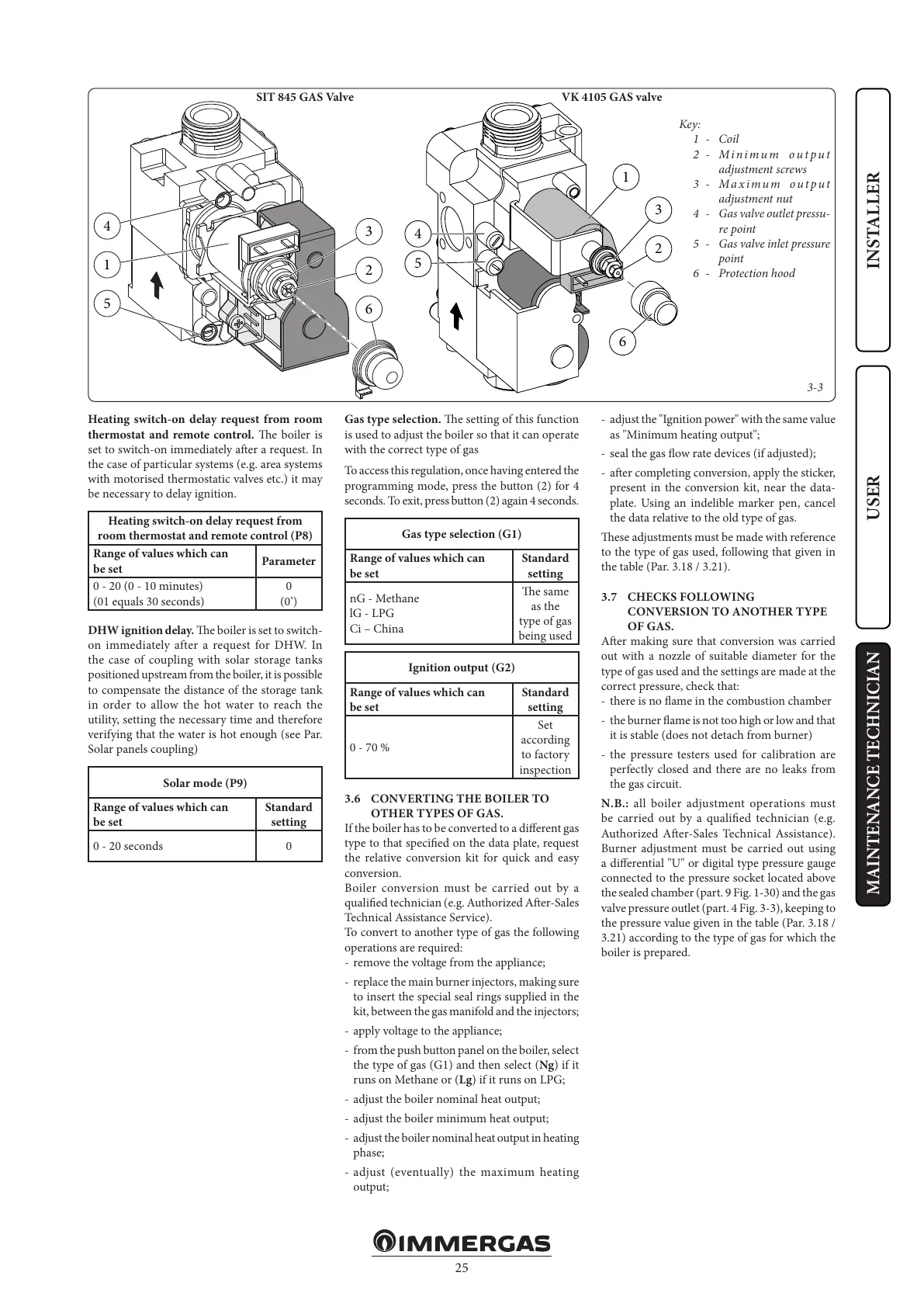

Immergas MINI EOLO 24 3E - Gas Conversion Procedures; Boiler Gas Type Conversion; Checks After Gas Conversion

25
3-3
4
3
2
1
5
6
4
3
2
1
6
5
INSTALLERUSER
MAINTENANCE TECHNICIAN
Gas type selection. e setting of this function
is used to adjust the boiler so that it can operate
with the correct type of gas
To access this regulation, once having entered the
programming mode, press the button (2) for 4
seconds. To exit, press button (2) again 4 seconds.
Gas type selection (G1)
Range of values which can
be set
Standard
setting
nG - Methane
lG - LPG
Ci – China
e same
as the
type of gas
being used
Ignition output (G2)
Range of values which can
be set
Standard
setting
0 - 70 %
Set
according
to factory
inspection
3.6 CONVERTING THE BOILER TO
OTHER TYPES OF GAS.
If the boiler has to be converted to a dierent gas
type to that specied on the data plate, request
the relative conversion kit for quick and easy
conversion.
Boiler conversion must be carried out by a
qualied technician (e.g. Authorized Aer-Sales
Technical Assistance Service).
To convert to another type of gas the following
operations are required:
- remove the voltage from the appliance;
- replace the main burner injectors, making sure
to insert the special seal rings supplied in the
kit, between the gas manifold and the injectors;
- apply voltage to the appliance;
- from the push button panel on the boiler, select
the type of gas (G1) and then select (Ng) if it
runs on Methane or (Lg) if it runs on LPG;
- adjust the boiler nominal heat output;
- adjust the boiler minimum heat output;
- adjust the boiler nominal heat output in heating
phase;
- adjust (eventually) the maximum heating
output;
- adjust the "Ignition power" with the same value
as "Minimum heating output";
- seal the gas ow rate devices (if adjusted);
- aer completing conversion, apply the sticker,
present in the conversion kit, near the data-
plate. Using an indelible marker pen, cancel
the data relative to the old type of gas.
ese adjustments must be made with reference
to the type of gas used, following that given in
the table (Par. 3.18 / 3.21).
3.7 CHECKS FOLLOWING
CONVERSION TO ANOTHER TYPE
OF GAS.
Aer making sure that conversion was carried
out with a nozzle of suitable diameter for the
type of gas used and the settings are made at the
correct pressure, check that:
- there is no ame in the combustion chamber
- the burner ame is not too high or low and that
it is stable (does not detach from burner)
- the pressure testers used for calibration are
perfectly closed and there are no leaks from
the gas circuit.
N.B.: all boiler adjustment operations must
be carried out by a qualied technician (e.g.
Authorized Aer-Sales Technical Assistance).
Burner adjustment must be carried out using
a dierential "U" or digital type pressure gauge
connected to the pressure socket located above
the sealed chamber (part. 9 Fig. 1-30) and the gas
valve pressure outlet (part. 4 Fig. 3-3), keeping to
the pressure value given in the table (Par. 3.18 /
3.21) according to the type of gas for which the
boiler is prepared.
Heating switch-on delay request from room
thermostat and remote control. e boiler is
set to switch-on immediately aer a request. In
the case of particular systems (e.g. area systems
with motorised thermostatic valves etc.) it may
be necessary to delay ignition.
Heating switch-on delay request from
room thermostat and remote control (P8)
Range of values which can
be set
Parameter
0 - 20 (0 - 10 minutes)
(01 equals 30 seconds)
0
(0’)
DHW ignition delay. e boiler is set to switch-
on immediately after a request for DHW. In
the case of coupling with solar storage tanks
positioned upstream from the boiler, it is possible
to compensate the distance of the storage tank
in order to allow the hot water to reach the
utility, setting the necessary time and therefore
verifying that the water is hot enough (see Par.
Solar panels coupling)
Solar mode (P9)
Range of values which can
be set
Standard
setting
0 - 20 seconds 0
Key:
1 - Coil
2 - M i n i m u m o u t p u t
adjustment screws
3 - Maximum output
adjustment nut
4 - Gas valve outlet pressu-
re point
5 - Gas valve inlet pressure
point
6 - Protection hood
SIT 845 GAS Valve VK 4105 GAS valve
