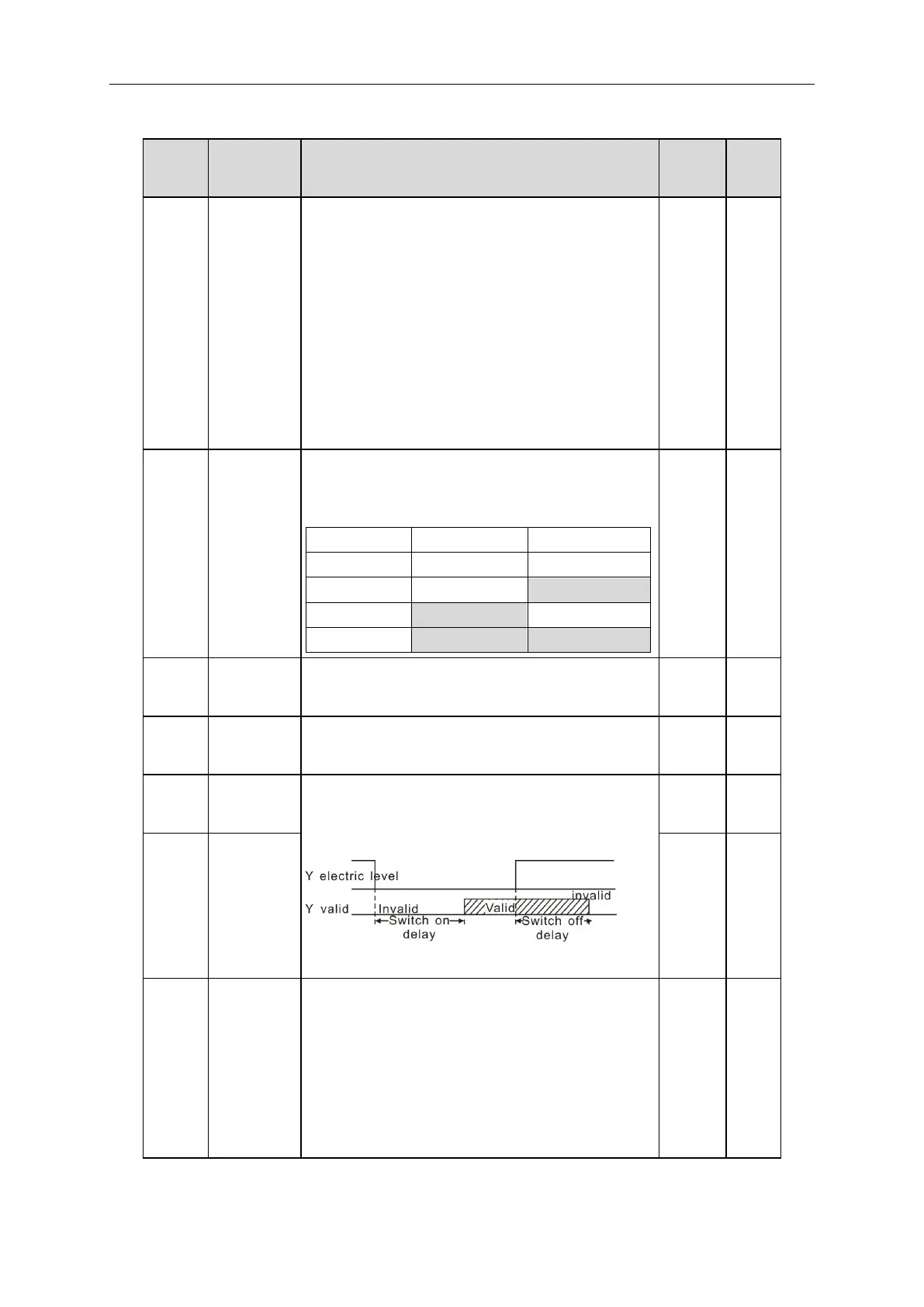

IMO iDrive2 XKL - Page 40

iDrive2 inverters Function Parameters
40
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
12:Ready for operation
14:Overload pre-alarm
15: Underload pre-alarm
16:Completion of simple PLC stage
17:Completion of simple PLC cycle
18:Setting count value arrival
19:Defined count value arrival
20:External fault valid
22:Running time arrival
23:MODBUS communication virtual terminals output
P06.05
Polarity of
output
terminals
Sets switching polarity of Relay and Transistor outputs.
Set Value according to normal/inverse switching
requirements.
Value
RO1
Y
0
Normal
Normal
1
Normal
Inverse
4
Inverse
Normal
5
Inverse
Inverse
00
○
P06.06
Y1 switching
on delay time
0.000~50.000s
0.000s
○
P06.07
Y1 switching
off delay time
0.000~50.000s
0.000s
○
P06.10
RO switching
on delay time
The function code defines the corresponding delay time
of the electrical level change during the programmable
terminal switching on and off.
The setting range :0.000~50.000s
0.000s
○
P06.11
RO switching
off delay time
0.000s
○
P06.14
AO output
0:Running frequency
1:Set frequency
2:Ramp reference frequency
3:Running rotation speed
4:Output current (relative to the rated current of the
inverter)
5:Output current (relative to the rated current of the
0
○
