iDrive2 inverters Function Parameters
59
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
2. Prohibition of input phase protection can enable this
function.

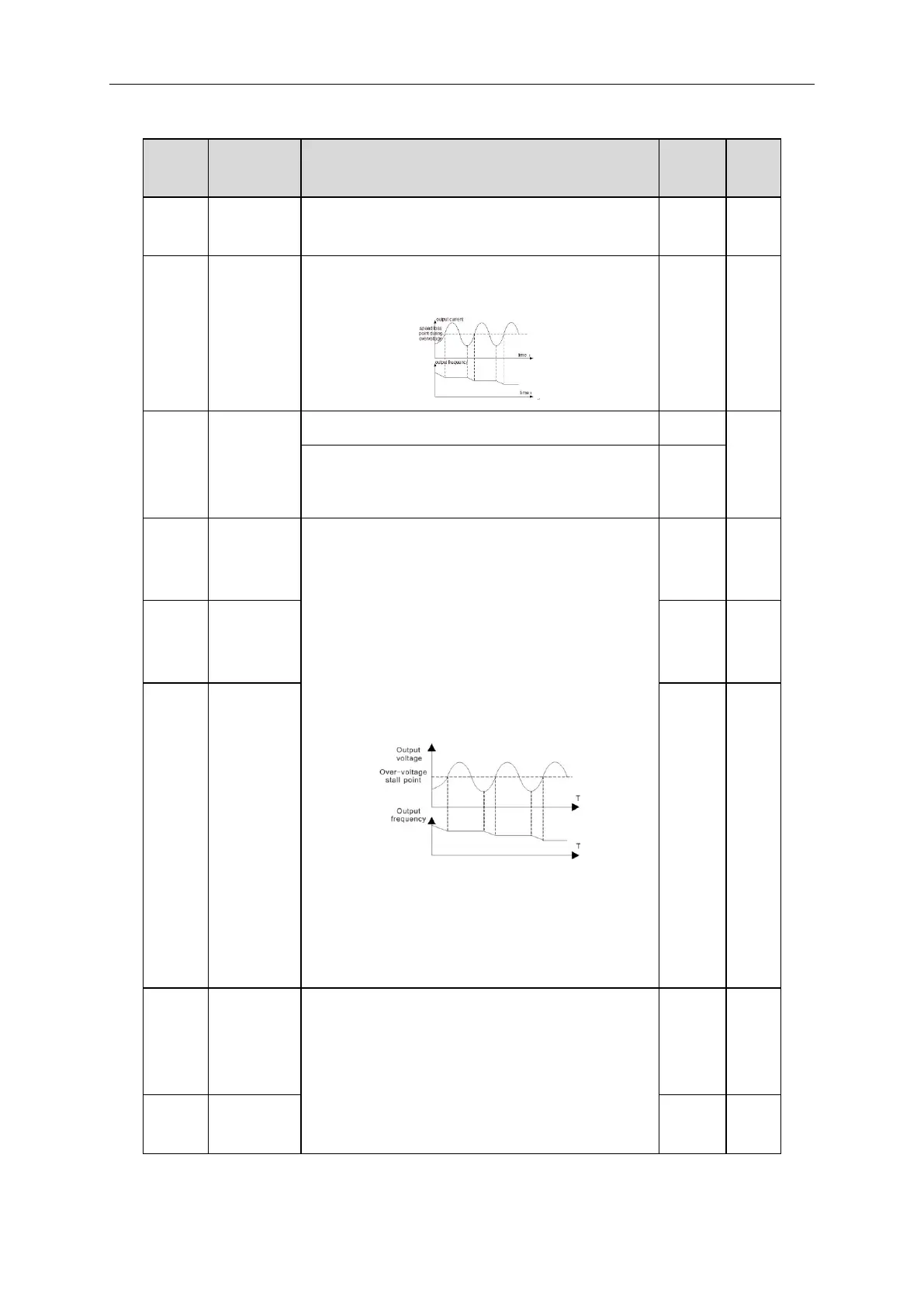

P11.03
Overvoltage
speed loss
protection
0:Disabled
1:Enabled
1
○
P11.04
Overvoltage
speed loss
voltage
protection
120~150%(standard bus voltage)(400V)
140%
○
120~150%(standard bus voltage)(230V)
120%
P11.05
Current limit
action
selection
During the running of the inverter, this function will detect
the output current and compare it with the limit level
defined in P11.06. If it exceeds the level, the inverter will
run at stable frequency in ACC running, or the inverter
will derate to run during the constant running. If it
exceeds the level continuously, the output frequency will
keep on decreasing to the lower limit. If the output
current is detected to be lower than the limit level, the
inverter will accelerate to run.
Setting range of P11.05:
0:current limit invalid
1:current limit valid
Setting range of P11.06:50.0~200.0%
Setting range of P11.07:0.00~50.00Hz/s
1
◎
P11.06
Automatic
current limit
level
160.0%
◎
P11.07
The
decreasing
ratio during
current limit
10.00Hz/
s
◎
P11.08
Overload
pre-alarm of
the motor or
the inverter
The output current of the inverter or the motor is above
P11.09 and the lasting time is beyond P11.10, overload
pre-alarm will be output.
0x000
○
P11.09
Overload
pre-alarm
150%
○
