Impulse RT750 - Page 22

─ 22 ─

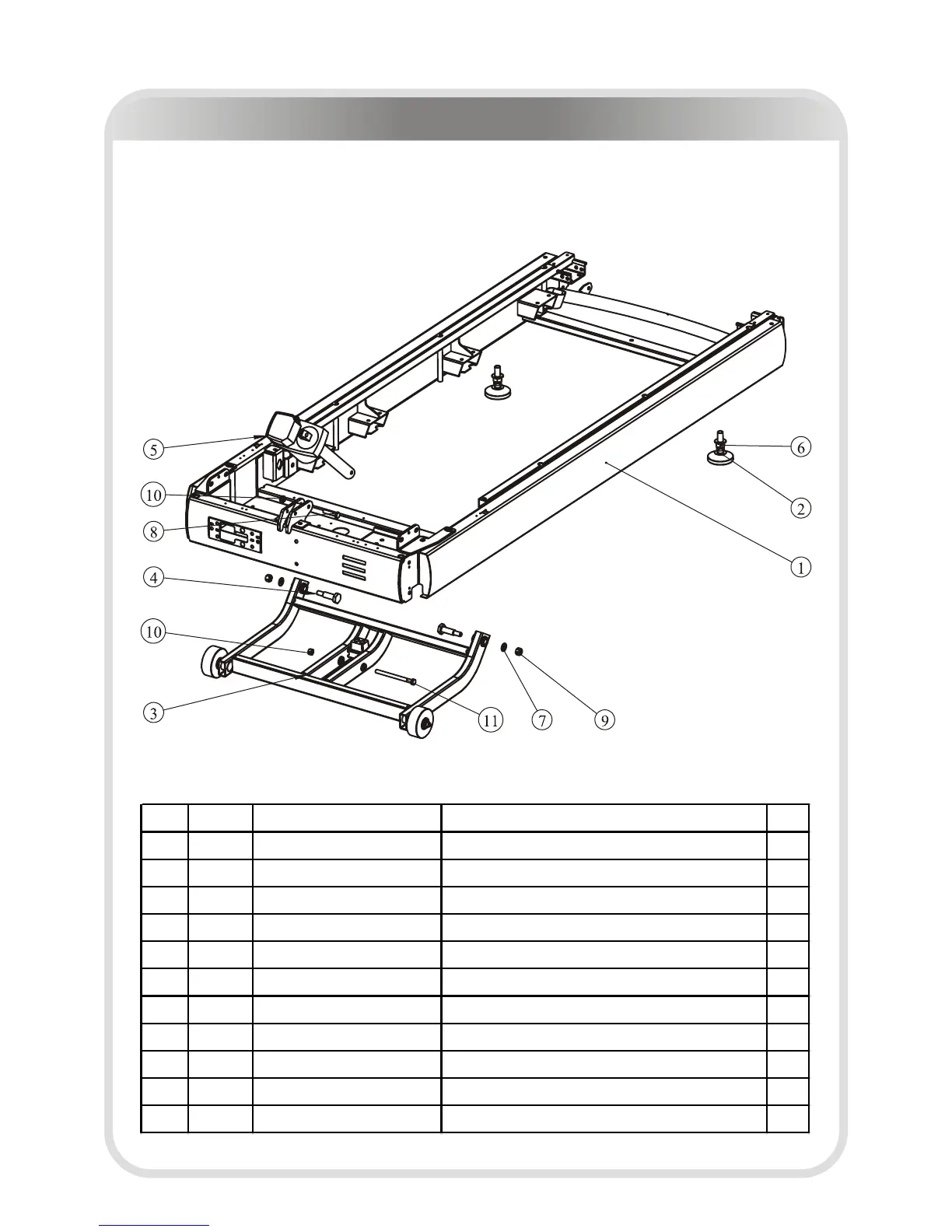

Parts List and Exploded View
Deck Frame and Inverter Frame ASSY
Item No.
Grade No. Part No. Description QTY
1 4.1.1 RT7500400 Deck Frame 1
2 4.1.2 STDP3400 Adjust Support 2
3 4.1.3 RT75005ASSY Inverter Frame ASSY 1
4 4.1.4 RT7001900 Hex Head Bolt M10*130 2
5 4.1.5 R37-22-RDS Actuator 1
6 4.1.6 GB6177M16DS2 Hex Flange Nut M16 2
7 4.1.7 DQ12DS2A Washer Φ13*Φ24*1.5 2
8 4.1.8 NM12DS2 Locknut M12 2
9 4.1.9 GB5780M10*45DS20 Hex Head Bolt M10*45 1
10 4.1.10 NM10DS2 Locknut M10 2
11 4.1.11 GB5780M10*130DS20 Hex Head Bolt M10*130 1
