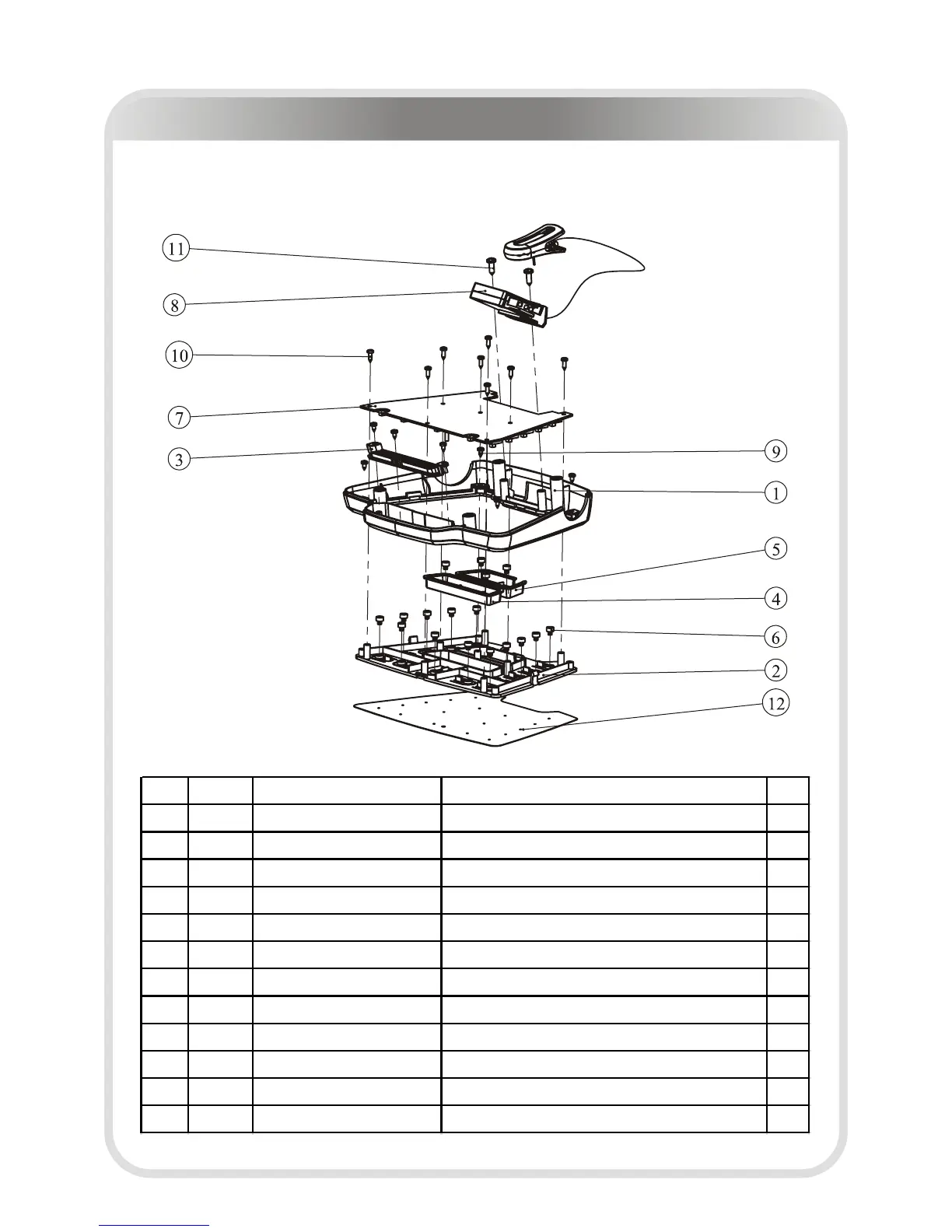

Parts List and Exploded View

Middle Controller Upper Casing ASSY

Item No.

Grade No. Part No. Description QTY

1 1.9.1 RT7507100 Middle Controller Upper Casing 1

2 1.9.2 RT7506800 Middle Controller Key Casing 1

3 1.9.3 RT7508300 Air Duct Cover 1

4 1.9.4 RT7506900 Start Key 1

5 1.9.5 RT7507000 Stop Key 1

6 1.9.6 ECT74800 Buffer Pad For Key 17

7 1.9.7 B154 PCB For Middle Controller Upper Casing 1

8 1.9.8 RT75010ASSY Emergency Switch ASSY 1

9 1.9.9 GB845ST2.9*6.5DS Phillip Screw ST2.9*6.5 7

10 1.9.10 GB845ST2.9*9.5DS Phillip Screw ST2.9*9.5 8

11 1.9.11 GB845ST4.2*13DS Phillip Screw ST4.3*13 2

12 1.9.12 RT750MM02 A ZONE Overlay 1
