99903514:TELESCOPIC CRANE: 5-2
SECTION 5: DECALS
10,14,15
28
22,23 (INSIDE
COVER)
24 (THIS SIDE)
25 (OTHER SIDE)
26(BOTH SIDES)
27(BOTH SIDES)
18
20
19
SECTION 5. DECALS
NOTE
PLACEMENT OF A HAZARD WARNING DECAL MUST
BE IN A POSITION WHICH IS EASILY VISIBLE TO THE
PERSON RESPONSIBLE FOR TAKING THE
APPROPRIATE ACTION WHICH THAT DECAL
ADDRESSES.
5-1. DECAL PLACEMENT-
TELESCOPING CRANES
The positioning of decals on a telescoping crane
is usually similar between varying models.
Figure E-1 illustrates common positioning of
decals used on telescoping cranes.

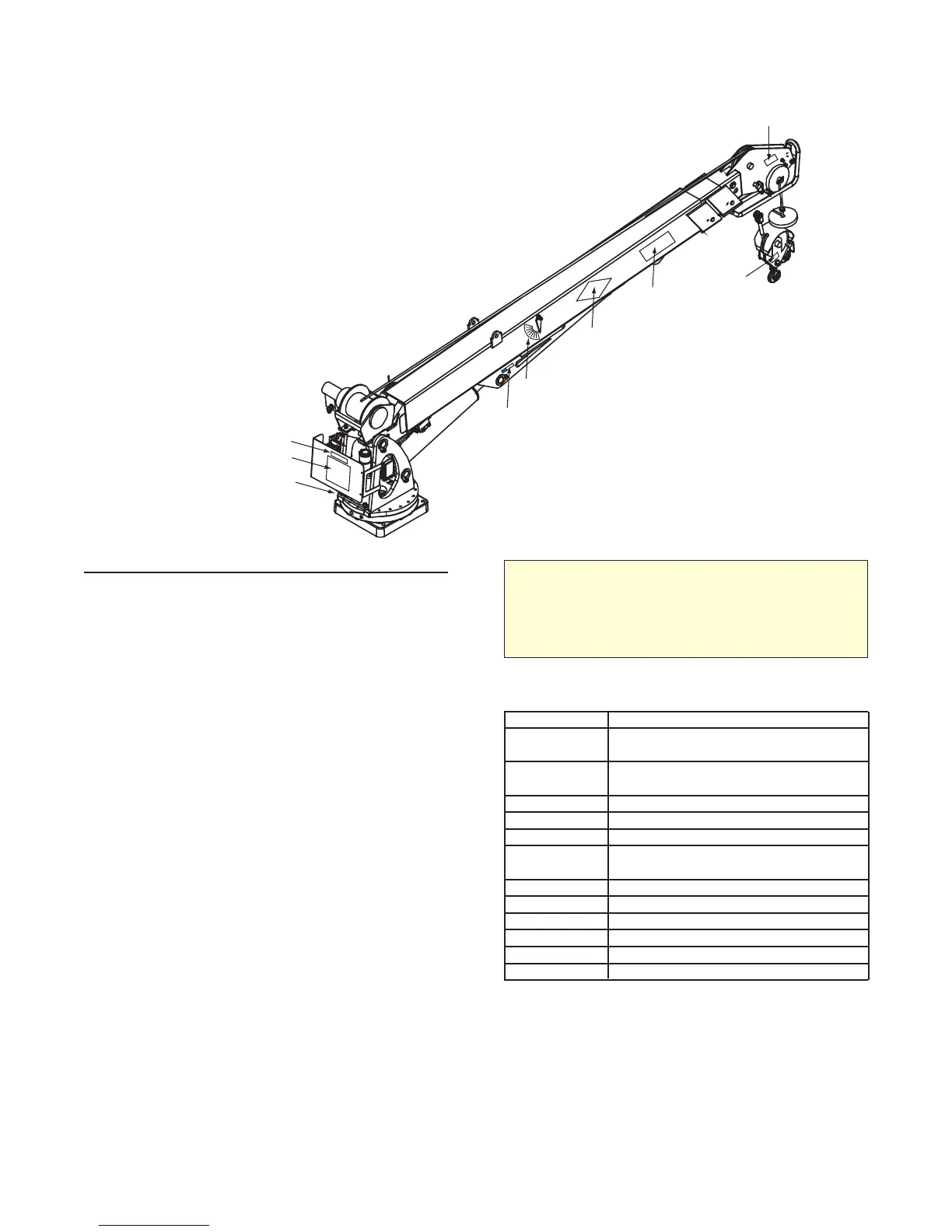

FIGURE E-1. DECAL LOCATIONS ON TELESCOPING CRANES
20050125
ITEM DECAL DESCRIPTION QTY SEE FIG
1. CRANE OPERATION HAZARDS 1 E-2
2. ELECTROCUTION HAZARD 4 E-3
3. WARNING-HOISTING PERSONNEL 4 E-4
4. ELECTROCUTION HAZ. - REMOTE 1 E-5
5. DANGER-ROTATING DRIVELINE 1 E-6
6. STABILIZER FOOT CRUSH HAZARD 2 E-7
7. WARNING-MANUAL EXT. FREE FALL 1 E-8
8. WARNING-MANUAL STABILIZERS 2 E-9
9. GREASE WEEKLY AR E-10
10. GREASE WORM DRIVE BEARING 1 E-11
11. CONTACT IMT 1 E-12
12. RETURN LINE 1 E-13
13. SUCTION LINE 1 E-14
14. LUBRICATE GEAR 1 E-15
15. ROTATE WHILE GREASING 1 E-16
16. CAUTION-DO NOT WASH/WAX 1 E-17
17. CAUTION-OIL LEVEL 1 E-18
18. CAUTION-DOWNHAUL WEIGHT 2 E-19
19. ASME B30.5 1 E-20
20. LOAD BLOCK RATING 2 E-21
21. HYD OIL RECOMMENDATIONS 1 E-22
22. MANUAL OVERRIDE 1 E-23
23. MANUAL OVERRIDE PROCEDURE 1 E-24
24. ANGLE INDICATOR, RH 1 E-25
25. ANGLE INDICATOR, LH 1
26. IMT DIAMOND 2
27. CRANE MODEL 2
28. CAPACITY CHART 2
29. FULLY DEPLOYED STAB 2 E-26
DECAL PLACEMENT
ITEM LOCATION
1, 11, 16, 17 AT OR NEAR REMOTE CONTROL
HANDLE STORAGE POINT
2,3 ON ALL FOUR SIDES OF CARRIER
VEHICLE
4 ON REMOTE CONTROL
6, 8, 29 ON STABILIZERS
5 AT OR NEAR DRIVELINE
7 AT OR NEAR MANUAL EXTENSION
BOOM RETENTION MECHANISM
9 ON ALL GREASE ZERKS
12,13 ON HYD RESERVOIR LINES
10, 14, 15 ON ROTATION GEAR COVER
18 ON BOOM TIP
21 ON HYDRAULIC OIL RESERVOIR
20 ON BOTH SIDES OF SNATCH BLOCK
