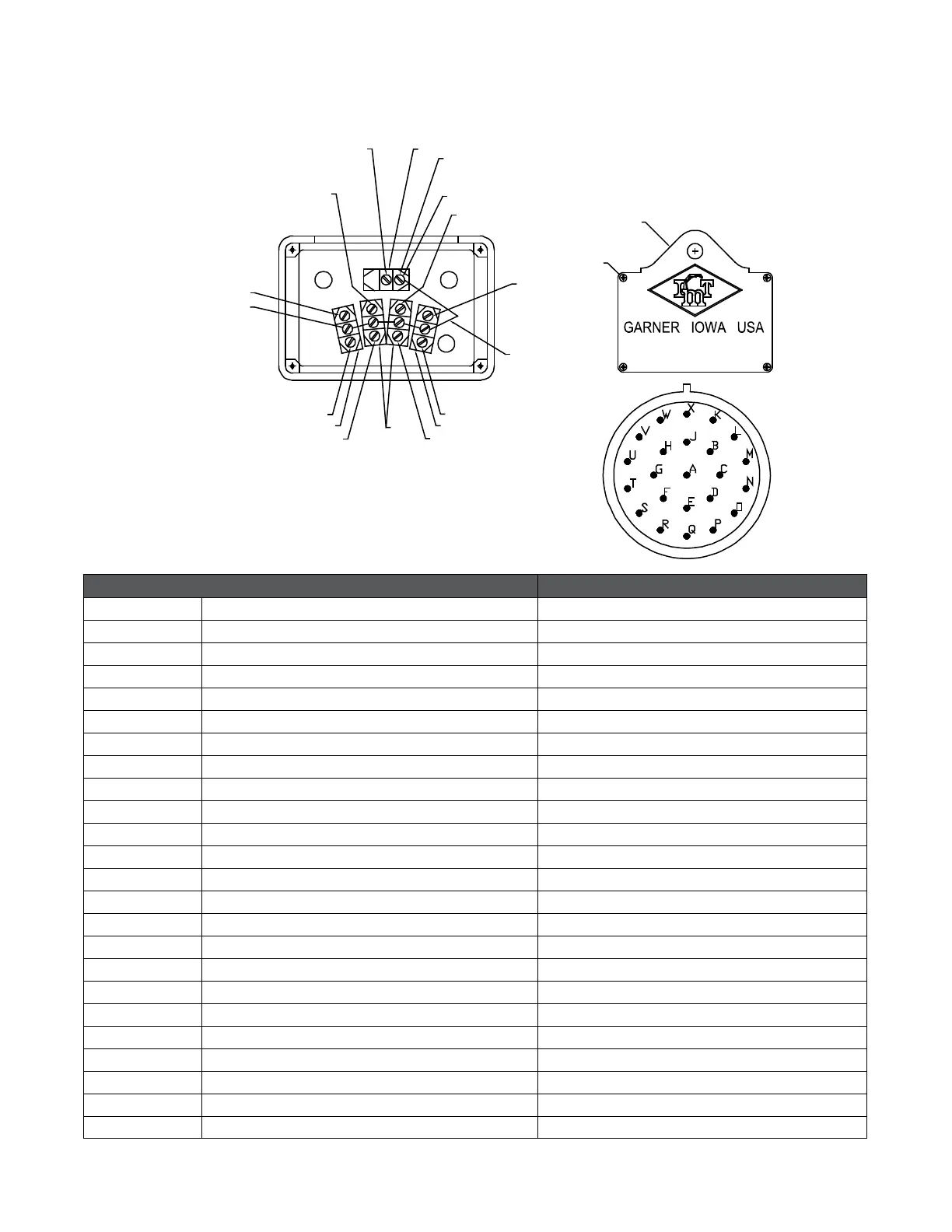

IMT 3203i - Page 106

Lighting & Electrical 100 Section 4
3203i - Manual # 99904380
51727502-1
5
14
18
1 (REF) GRN
(TO ROTARY SWITCH)
BLK/ORN (CRANE PWR)
ORN/BLK (EXT OUT)
YEL/BLK
(ROT CW)
1(6)
ORN
17
BLU/BLK
17
BRN/BLK (ROT CCW)
17
BRN (EXT IN)
RE D
RED/BLK
(WIN UP)
15(16)
YEL (BOOM UP)
SOLID / STRIPE FUNCTION
A YEL/BLK ROT CW
B ORN/BLK EXT OUT
C BLU/BLK WINCH DN
D RED/BLK WINCH UP
E ORN/RED -
F BRN EXT IN
G BRN/RED -
H BLU/RED -
J BLK/RED -
K BRN/BLK ROT CCW
L RED POWER
M BLU -
N ORN LOWER DN
O BLK/ORN CRANE POWER
P YEL LOWER UP
Q BRN/BLU -
R YEL/RED -
S BLK HYD PUMP
T BLK/BLU -
U RED/BLU -
V BLU/ORN -
W ORN/BLU -
X YEL/BLU -
- RED/RON -
