IMT 3203i Parts & Specifications

Parts 68 Section 4
3203i - Manual # 99904380

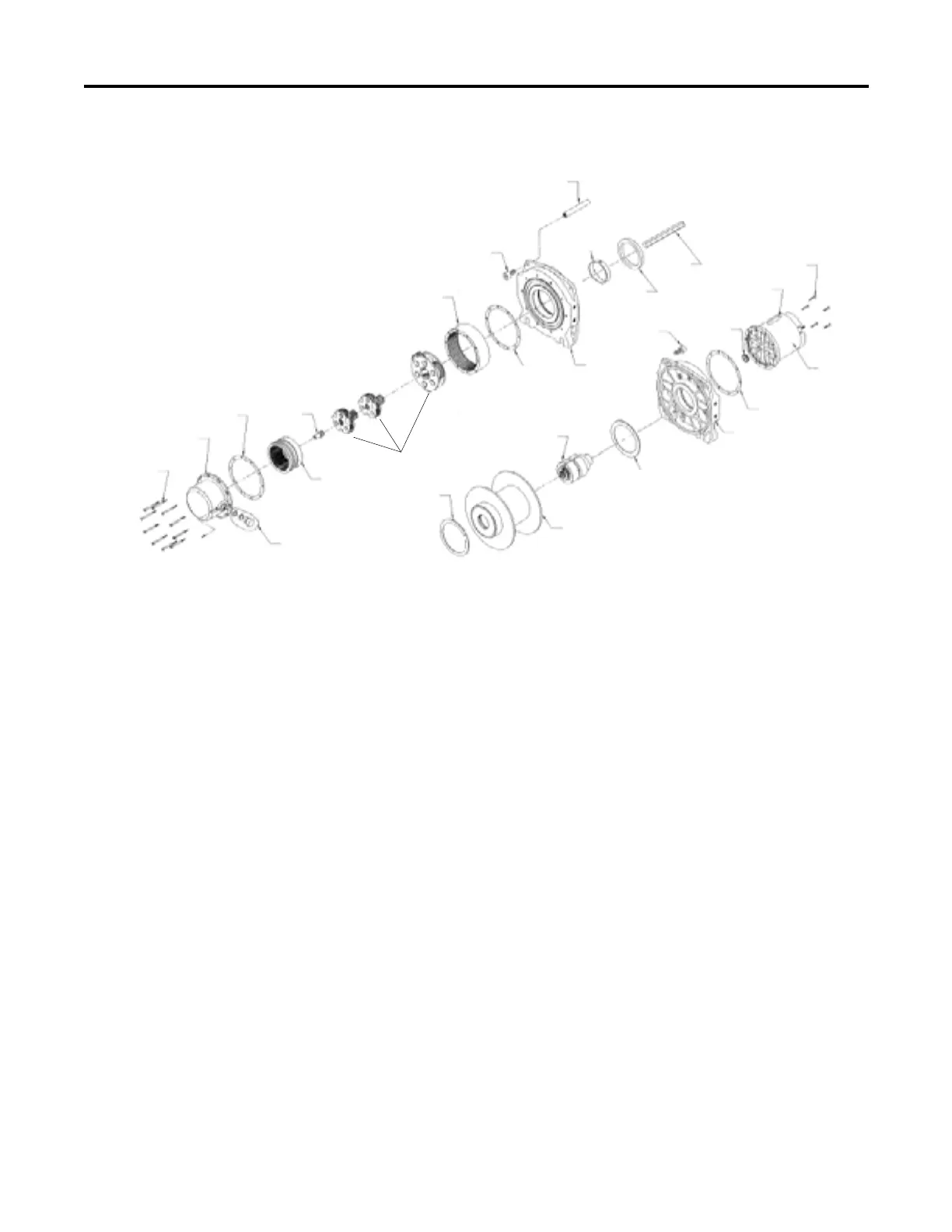

Winch (71570922)
NOTE:
For 24V system, use 71571008
WINCH REPLACEMENT PART NUMBERS:
Brake - IMT P/N: 77056662
Motor - IMT P/N: 73511210
Contactor - IMT P/N: 77041862
CAPSCREW
(QTY 10)
GEAR HOUSING
76394906 GASKET
PLUG
CLUTCH
GEAR
INPUT
RING GEAR
CARRIER ASM
RING GEAR
GASKET
BOLT (QTY 3)
SPACER (QTY 3)
76394906
32000212
BUSHING
32000388
SEAL
DRUM
SUPPORT
DRUM
SUPPORT
76394906 GASKET
BOLT (QTY 3)
ROD
MOTOR
73511210
BRAKE ASM
77056662
32000480
THRUST WASHER
DRUM
32000480
THRUST
WASHER
TAG
SCREW (X5)
