IMT 3203i Parts & Specifications

Parts 36 Section 4
3203i - Manual # 99904380

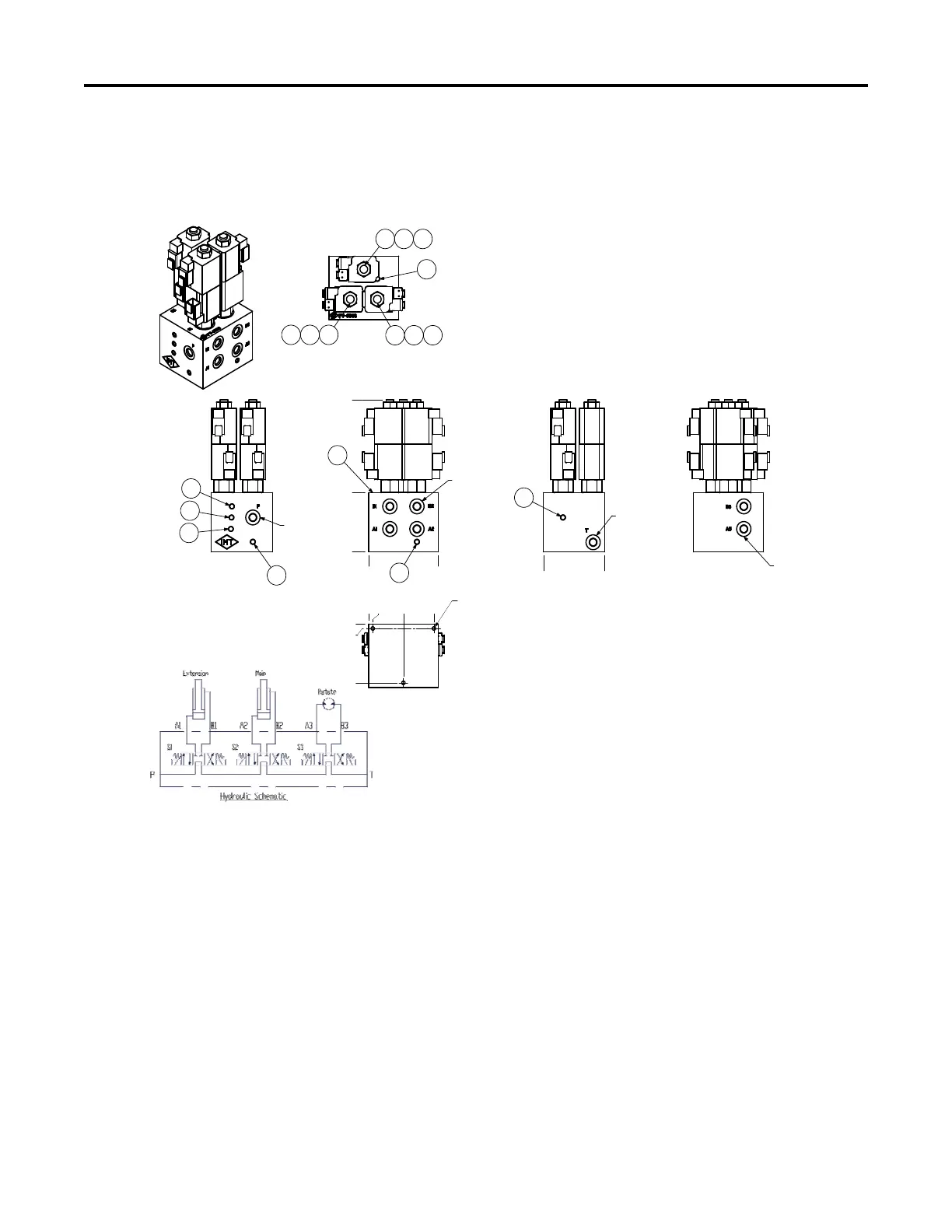

Valve Bank (73734304)
TESTING PROCEDURE:
SETUP:
CONNECT A PUMP CABLE OF 3 GPM AND 3000PSI TO "P"
CONNECT "T" TO TANK
CAP ALL OTHER PORTS
TEST:
APPLY FLOW TO "P" AND VERIFY FLOW BACK TO TANK AT
LOW PRESSURE
ELECTRICALLY SHIFT EACH COIL AND VERIFY THAT THE
SYSTEM GOES TO THE BENCH RELIEF SETTING
END OF TEST
SAE #4 ORB PORT
0.00
2.438
6.284
0.00 3.00
0.00 0.188 1.500 2.813

0.151
SAE #4 ORB PORT
(4 PLACES)
SAE #4 ORB PORT
0.00
2.625
SAE #4 ORB PORT
(2 PLACES)
2 3 3
2 3 3
233
1
4
4
4
0.00
0.188
2.438
4
4
4
4

IMT 3203i Specifications

General

Brand	IMT
Model	3203i
Category	Construction Equipment
Language	English
