IMT 3203i Parts & Specifications

Specications 10 Crane Reference
3203i - Manual # 99904380
Assemblies & Grease Zerk Locations
ITEM NO. LOCATION DESCRIPTION LUBRICANT FREQUENCY
1 LOWER CYLINDER ROD
SHELL
ALVANIA 2
EP
OR
SHELL
RETINAX “A:
WEEKLY
2 LOWER CYLINDER BASE
3
GEAR ROTATOR GREASE EXTENSION
*ROTATE CRANE WHILE GREASING.
4 POWER UNIT
5 POWER UNIT
6 LOWER BOOM PIN
NOTE:
All application points must be greased weekly under normal workloads and moderate weather conditions.
Under severe operating conditions, lubricate more frequently. See the IMT Electric Crane Operation &
Safety manual P/N: 99905190, for additional lubrication requirements.
NOTE:
Image may be di󰀨erent depending on production date. Grease points should be identical.

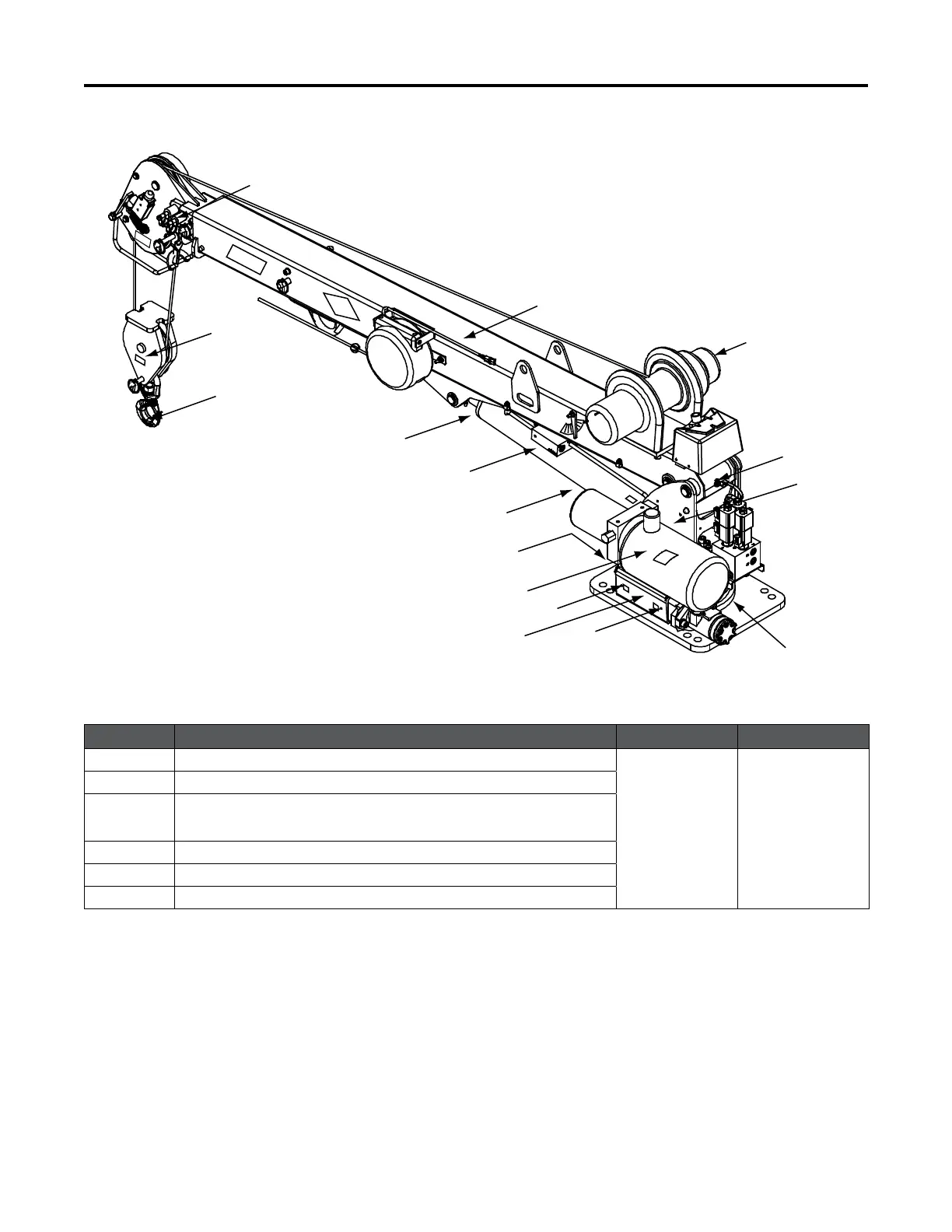

4
5
LOWER
CYLINDER
3
6
CRANE
BASE
WINCH
SNATCH
BLOCK
MAST
POWER
UNIT
LOWER
BOOM
EXTENSION
BOOM
HOOK
2
1
HYDRAULIC
RESERVOIR

IMT 3203i Specifications

General

Brand	IMT
Model	3203i
Category	Construction Equipment
Language	English
