Parts 35 Section 4

3203i - Manual # 99904380

MTE Replacement Power Unit Instuctions (52725032-SERVICE)

NOTE:

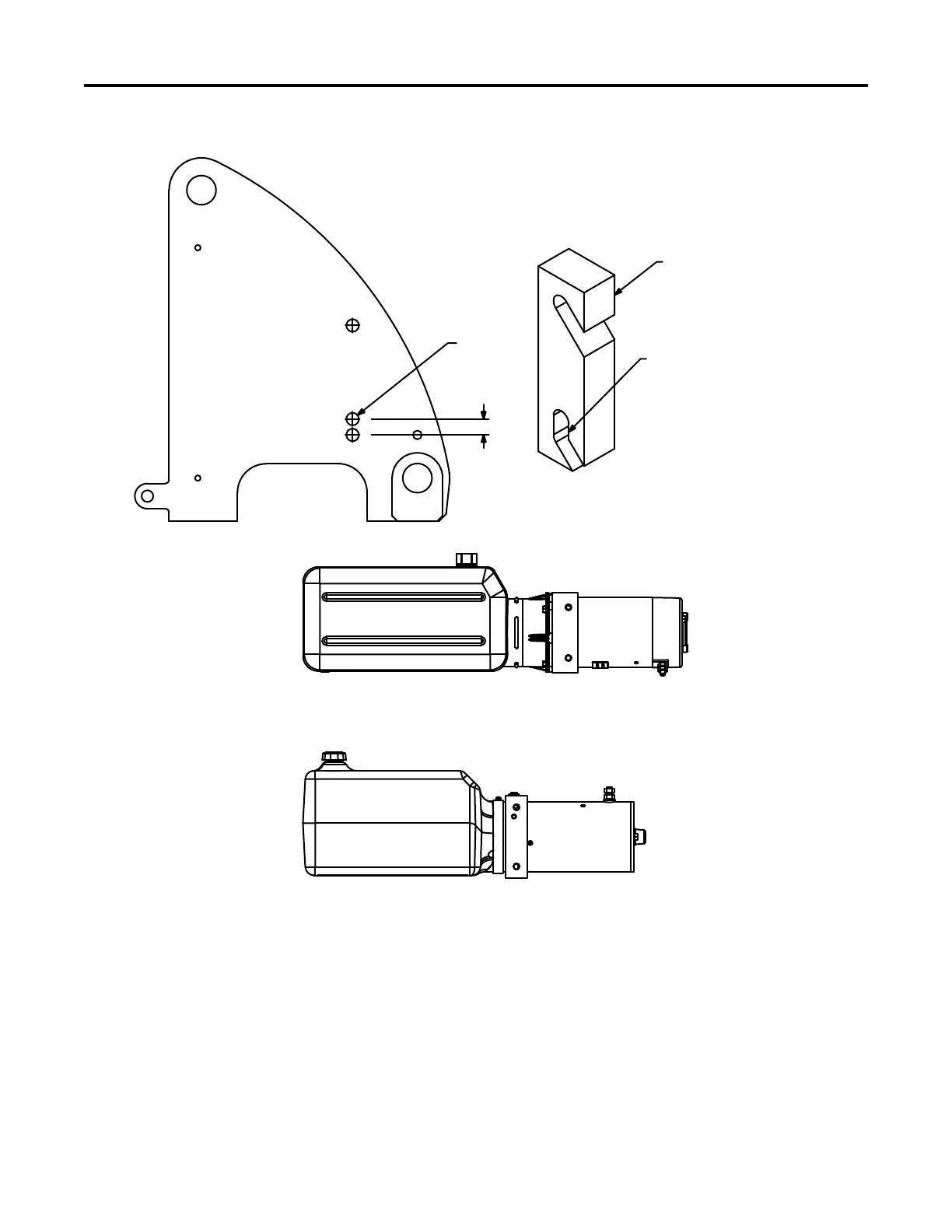

For replacing current power unit with alternate MTE model, Use updated spacer (60132385), and drill Ø.44

mounting hole above existing one shown in view above.

Replace hydraulic tting (72532699) with (72534567).See drawing (99904361) for detailed view.

0.55

0.44

60132385

UPDATED WITH EXTENDED SLOT

MTE POWER UNIT (73511432)

BUCHER POWER UNIT (73511283)
