IMT 3203i Parts & Specifications

Specications 14 Crane Reference
3203i - Manual # 99904380
CRANE INSTALLATION - CONTINUED
14.75 12.0018.00
11.50
12.00
14.00
5.75
6.00
6.00
7.38
 9.50
 0.81

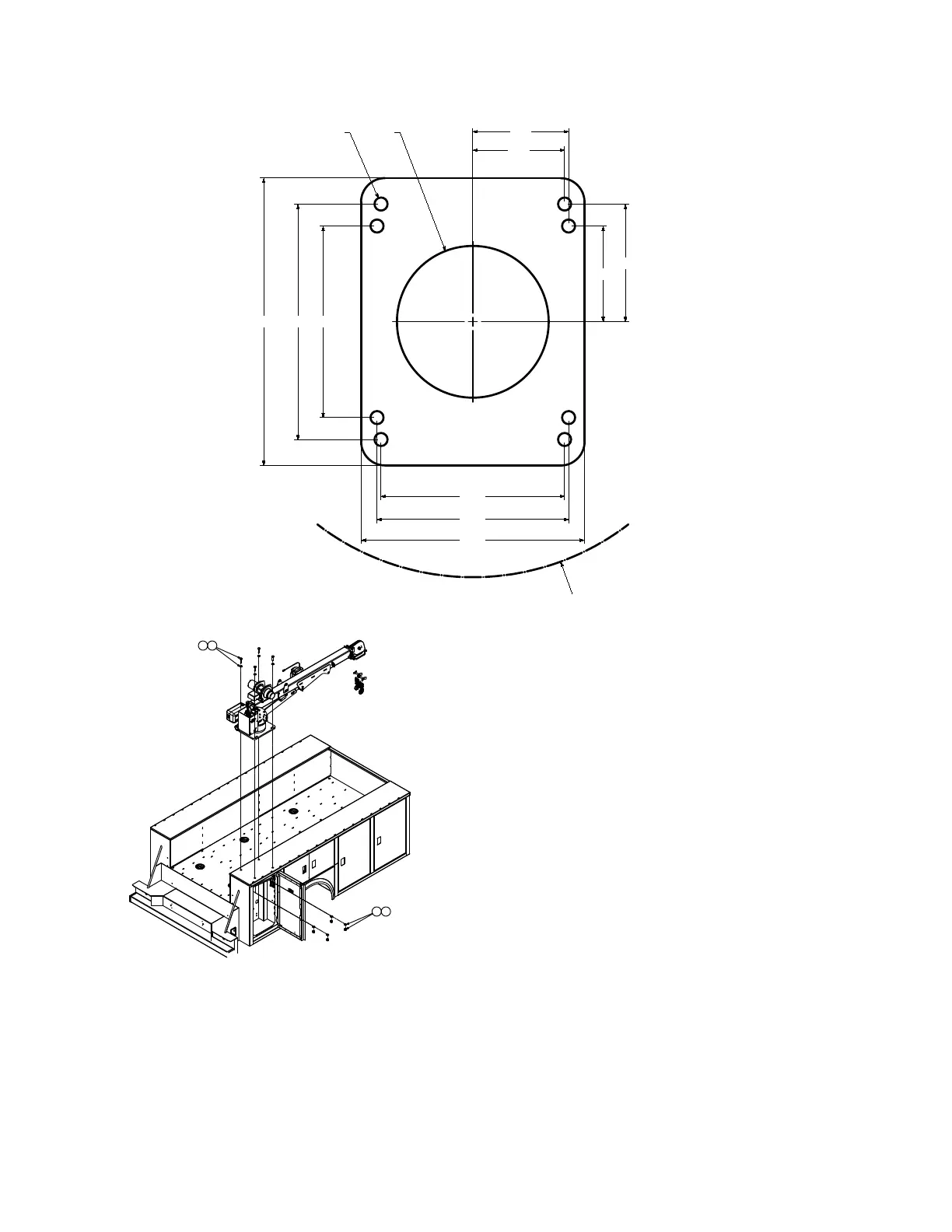

3203I/4004I
MOUNTING PATTERN
16.00 16" RA
D
IUS
ING CLEARA
N
CE
1620
20
SEE NOTES #1, #2 & #3
ALLOW R 16.00 16” RADIUS
FOR SWING CLEARANCE
SEE NOTES
1, 2, 3
NOTE:
1. FOR Ø0.75 SAE HARDWARE TORQUE
TO 280 FT-LB
2. FOR Ø1.00 SAE HARDWARE TORQUE
TO 680 FT-LB.
THE .75-10 X 2.50" BOLTS SUPPLIED ARE FOR USE ON BODIES WITH A CRANE BOX TOP
PLATE THICKNESS OF 1/2"ONLY. DETERMINE THE CRANE BOX TOP PLATE THICKNESS
PRIOR TO MOUNTING. IF DIFFERENT LENGTH BOLTS ARE REQUIRED, THEY MUST BE
3/4-10, GRADE 8, ZINC COATED OF PROPER LENGTH. FAILURE TO USE PROPER LENGTH
BOLTS MAY CAUSE THE BOLTS TO BOTTOM OUT BEFORE TORQUING.
THE 1.00-8 X 3.00 " BOLTS SUPPLIED ARE FOR USE ON BODIES WITH A CRANE BOX TOP
PLATE THICKNESS OF 7/8" TO 1.00" ONLY. DETERMINE THE CRANE BOX TOP PLATE
THICKNESS PRIOR TO MOUNTING. IF DIFFERENT LENGTH BOLTS ARE REQUIRED, THEY
MUST BE 1.00-8, GRADE 8, ZINC COATED, OF PROPER LENGTH. FAILURE TO USE PROPER
LENGTH BOLTS MAY CAUSE THE BOLTS TO BOTTOM OUT BEFORE TORQUING.
