IMT 3203i Parts & Specifications

Parts 25 Section 4
3203i - Manual # 99904380

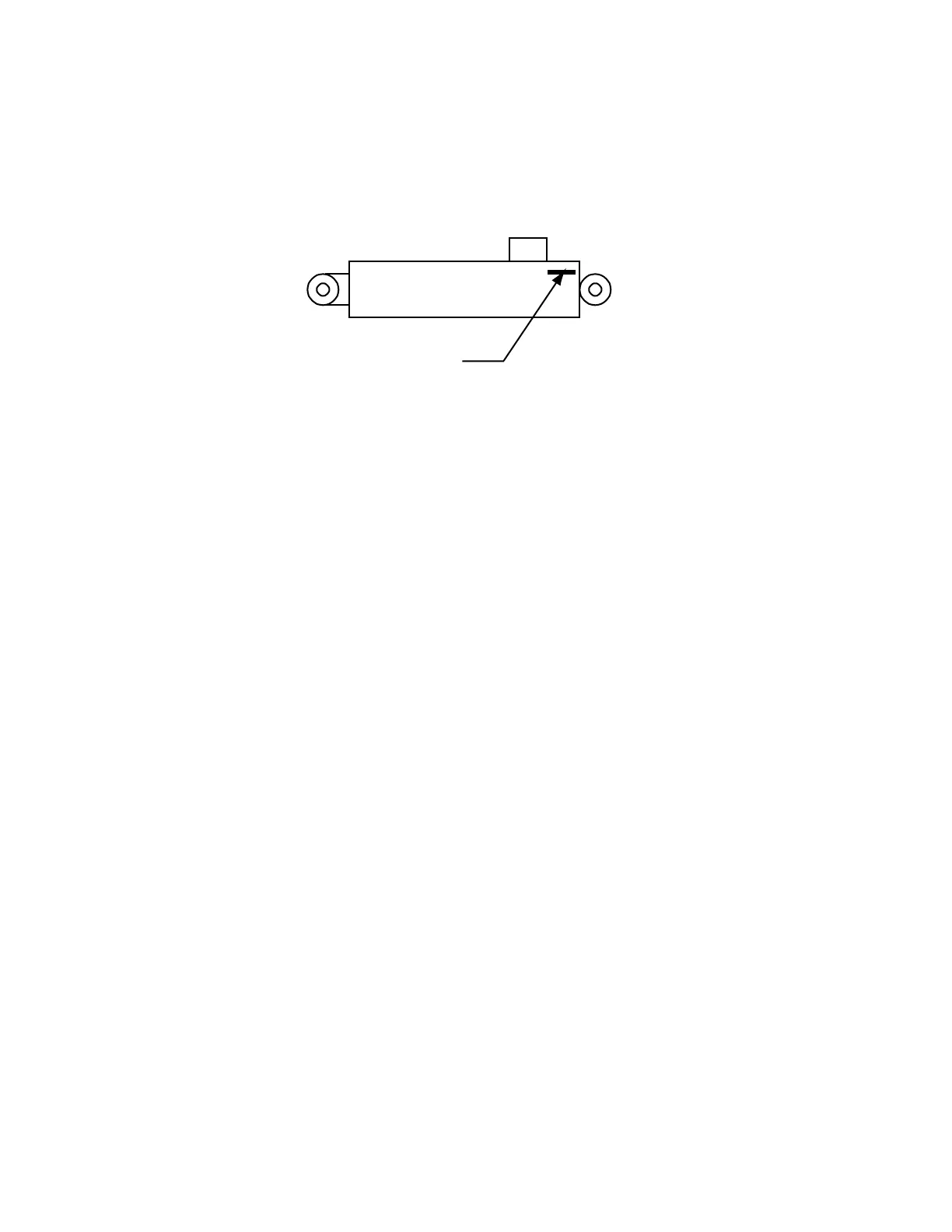

CYLINDER IDENTIFICAITON
To insure proper replacement parts are received, it is necessary to specify the complete number/letter sequence
for any part requested. Part numbers may be cross checked by comparing the stamped identication on the
cylinder case (See gure below) against the information contained in the service manual. You must include the part
number stamped on the cylinder case when ordering parts
WELDMENT IDENTIFICATION.
Each of the major weldments - base, mast, inner boom, outer boom, extension boom and stabilizer weldments bear
a stamped part number. Any time a major weldment is replaced, you must specify the complete part number as
stamped on the weldment. The locations of the part numbers are shown in the Crane Reference Section.
ORDERING REPAIR PARTS
1. When ordering replacement parts:
2. Give the model number of the unit.
3. Give the serial number of the unit.Specify the complete part number. When ordering cylinder parts, or one of
the main weldments, always give the stamped part number.
4. Give a complete description of the part.
5. Specify the quantity required.
CYLINDER
PART NUMBER
LOCATION

IMT 3203i Specifications

General

Brand	IMT
Model	3203i
Category	Construction Equipment
Language	English
