Lighting & Electrical 90 Section 4
3203i - Manual # 99904380
99906234-5

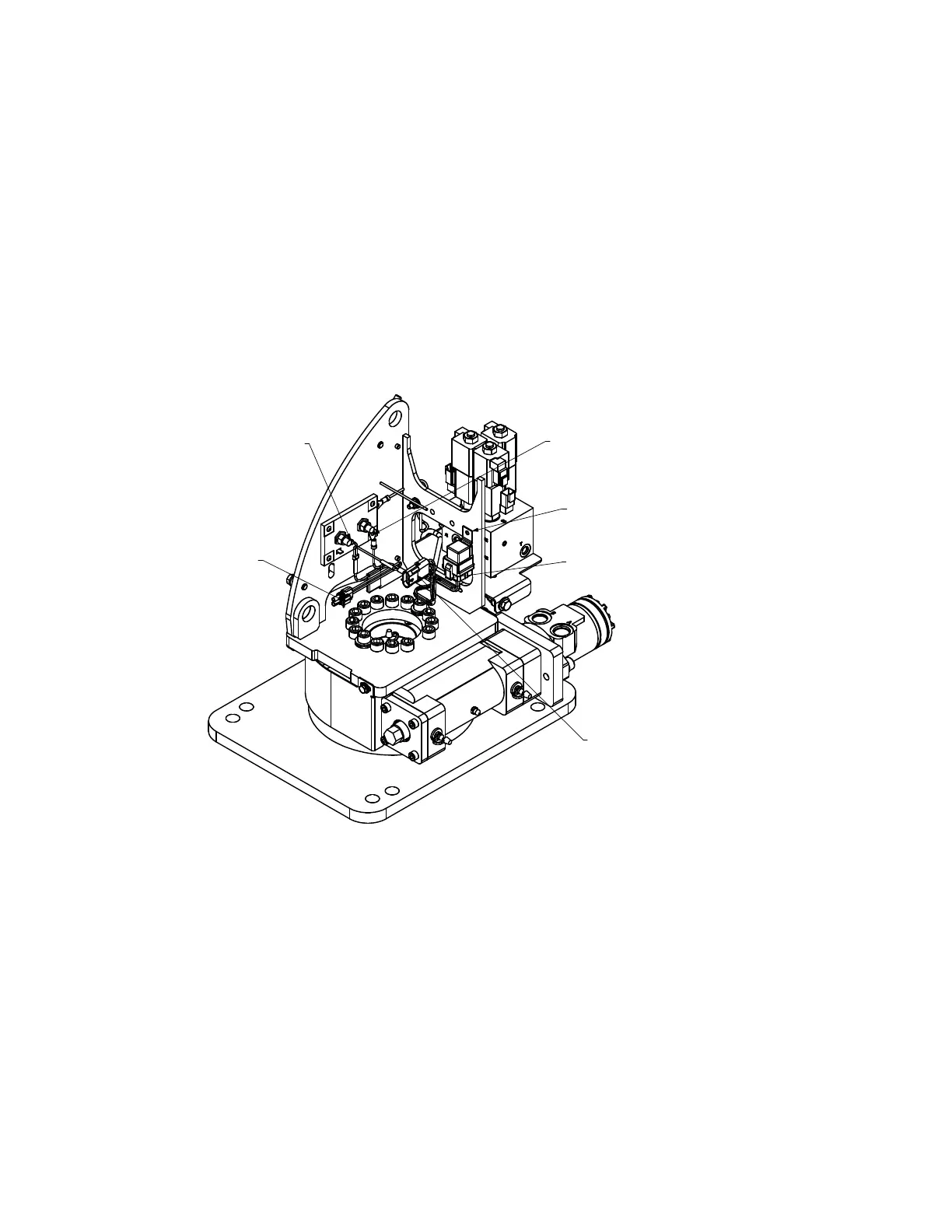

BOOM TIP LIGHT INSTALL/RETROFIT
AND RE-TIGHTEN NUT TO 10-15 FT-LB
UNSCREW 1/4" SCREW, ATTACH 1/4" WASHER
CONNECTOR AND RE-TIGHTEN TO 5 IN-LB
BOLT TO BACK OF MAST WITH
1/4" BOLT, WASHERS, AND NUT PROVIDED
PLUG 3-WAY FEMALE CONNECTOR INTO NEW REEL
WITH 3 PRONG MALE CONNECTOR
PLUGS INTO J9 ON CRANE HARNESS
(WAS PLUGGED INTO OLD REEL)
HARNESS AND SWITCH ARE PLACED THROUGHBACK OF MAST
AND SWITCH IS BOLTED TO BACK BOTTOM HOLE IN COVER
